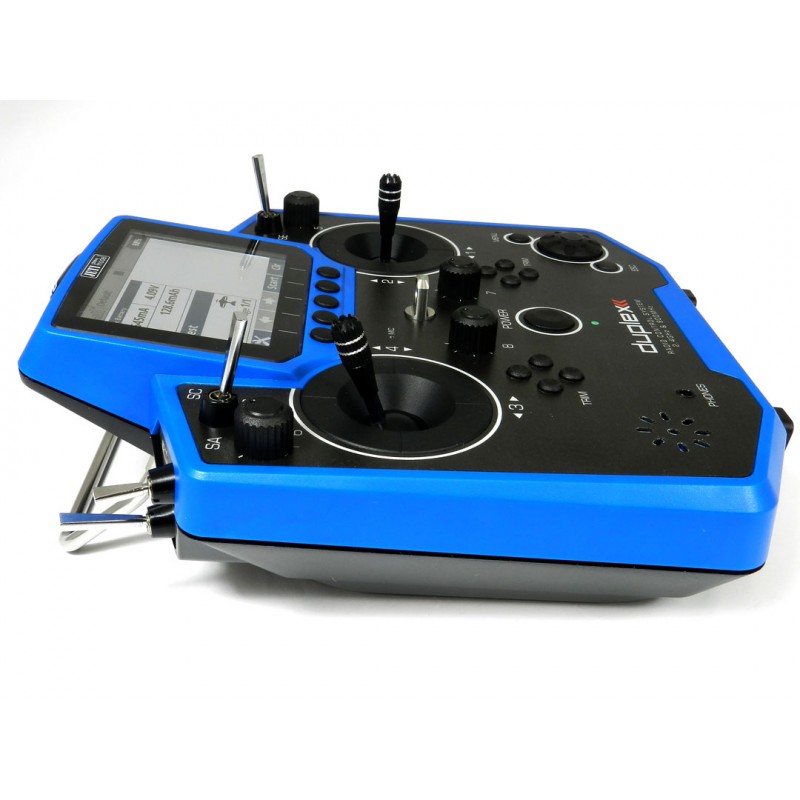

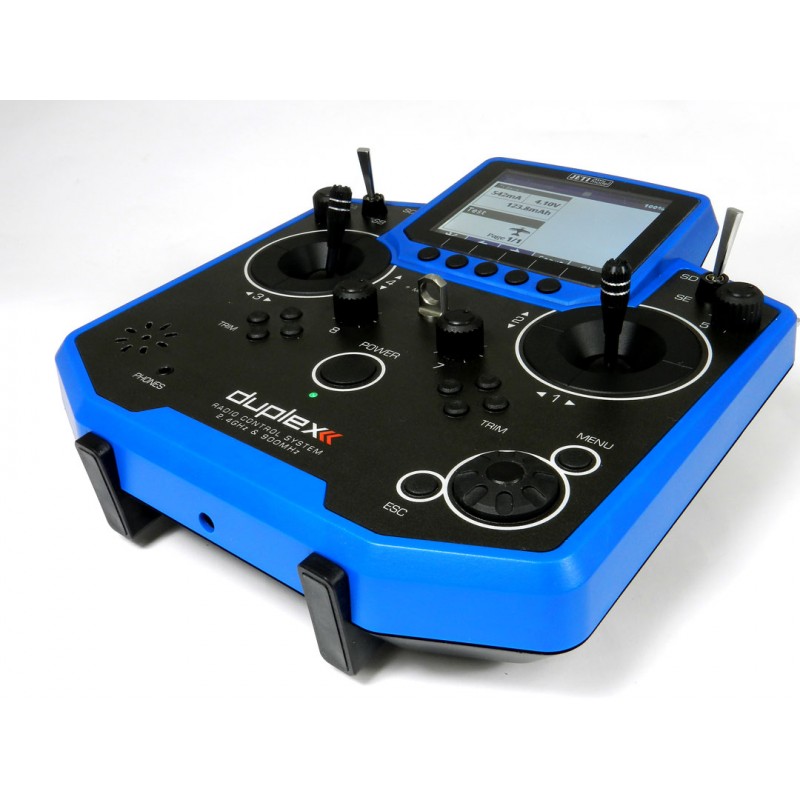

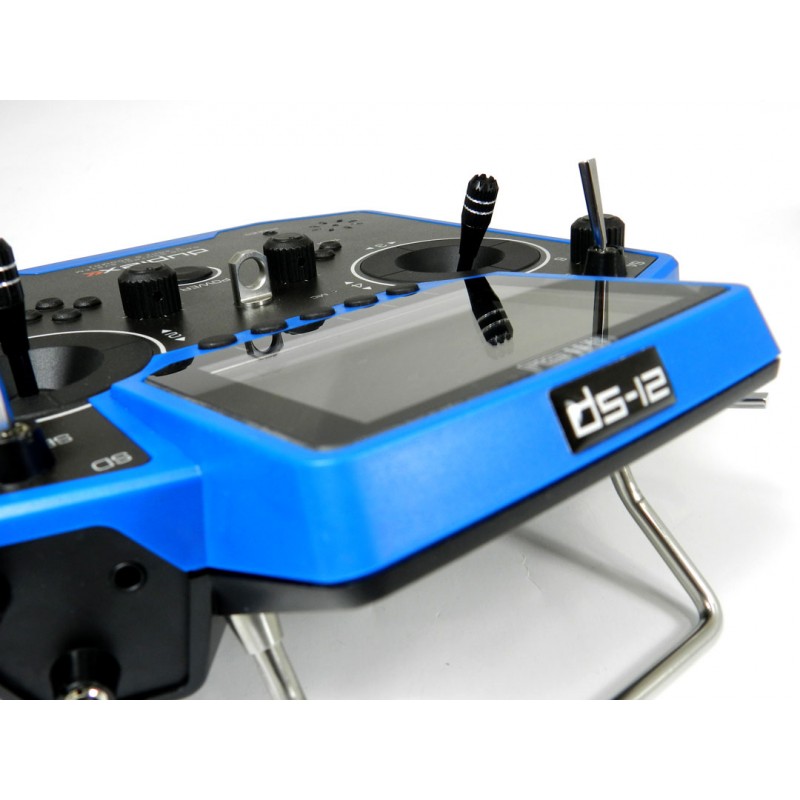

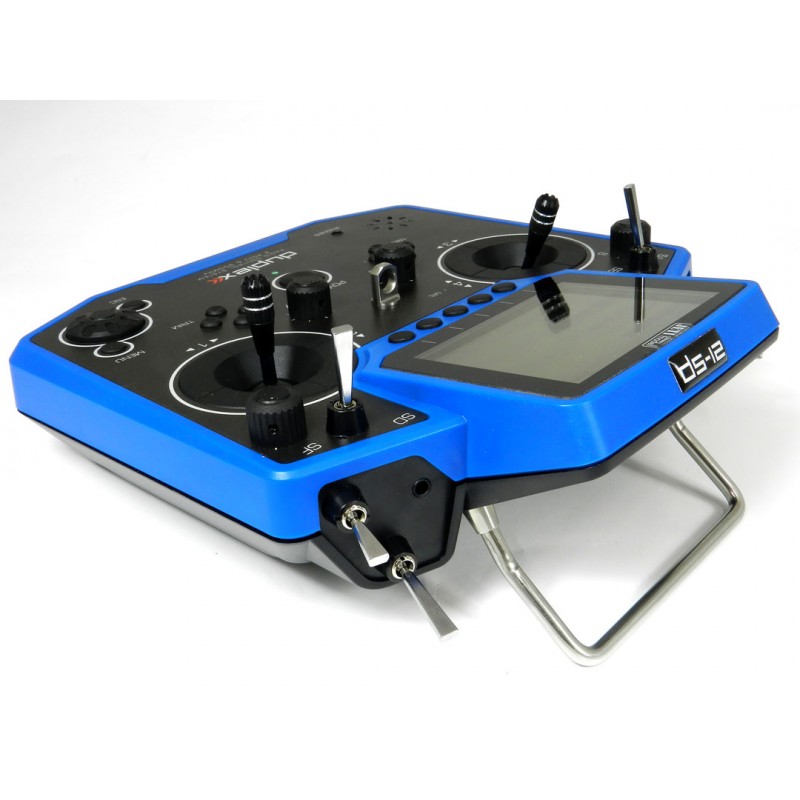

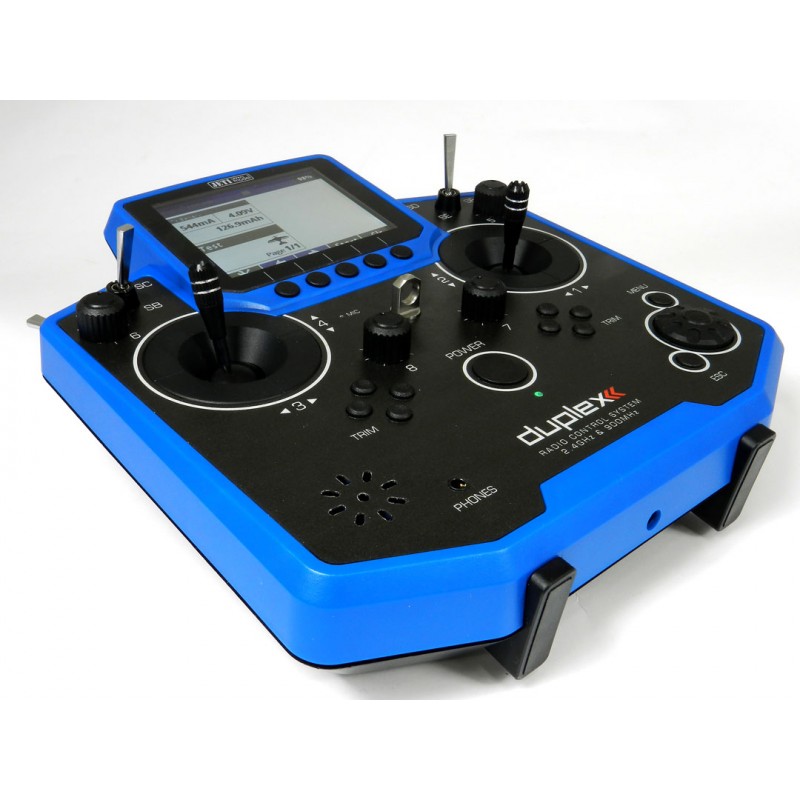

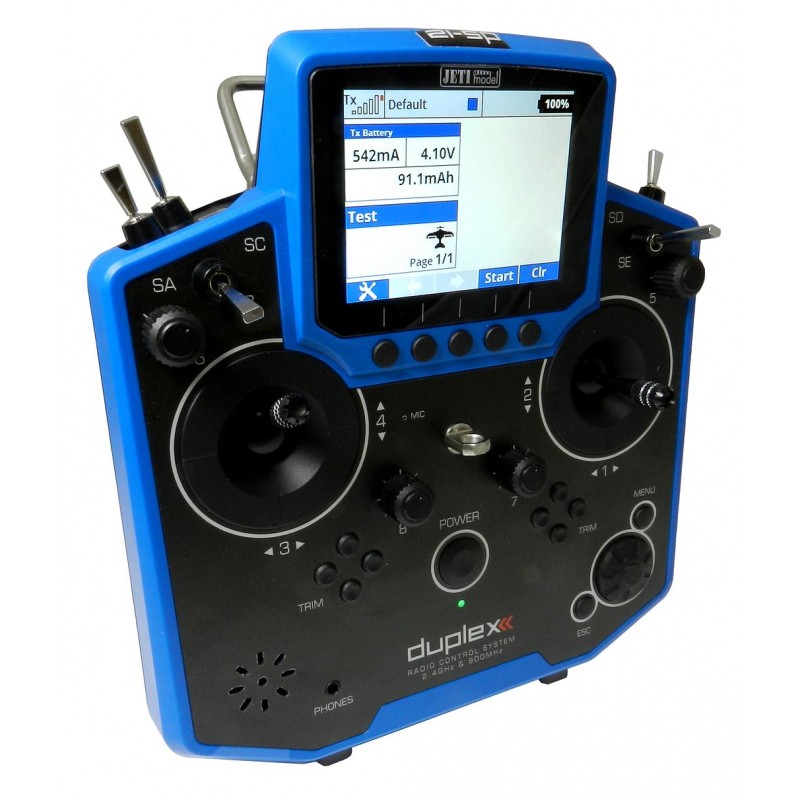

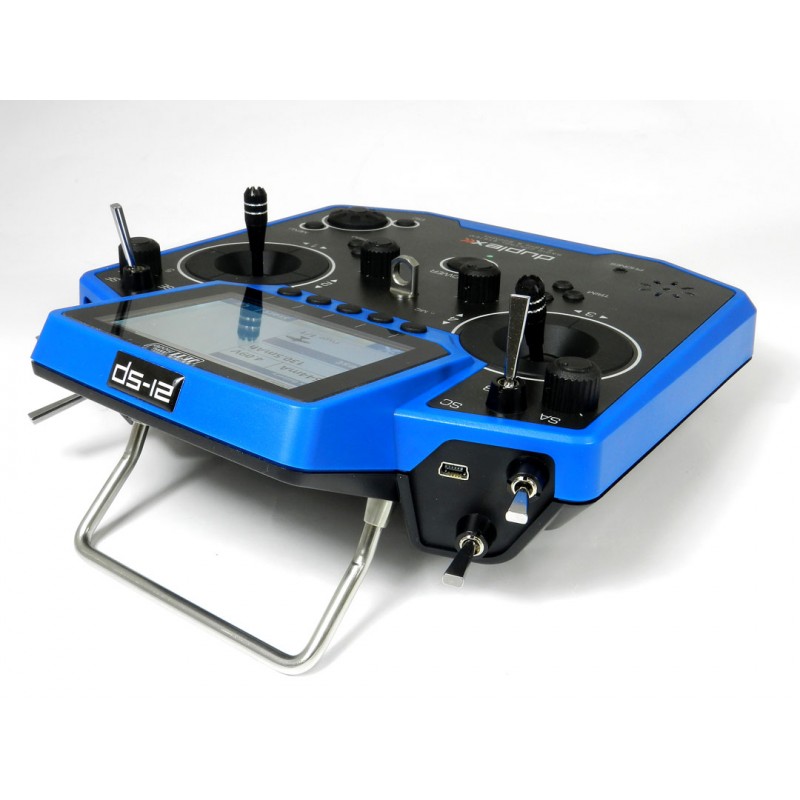

Jeti Model Transmitter Duplex DS-12 EX Multimod Blue

JDEX-TDS12-MMB

New product

Backorder (7 - 10 working days)

503,25 €

Add to wishlist

Data sheet

Frequency 2,4 Ghz
Channels More than 10

More info

Description

DC/DS Transmitters

Precise RC transmitters benefit from all of the features that the Duplex 2,4GHz EX system can offer.

The transmitters contain an advanced user interface that allows you almost unlimited programming. On-line and off-line telemetry are available as well as alarms, custom audio playback etc.

The design goals were maximum utility, durability, and reliablity of their mechanical parts along with simple handling. The metal case, with its chemically resistant finish, provides maximum protection for the interior components. The straightforward case shape makes servicing easy. The control gimbals, ball bearing equipped with their magnetic Hall sensors are another revolutionary design concept used to make the DC/DS among the world’s most advanced R/C systems.
Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.
The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.

The transmitters of the DS series are designed for thumb control.
These transmitters can be placed in a counter for these transmitters.

DS-12

Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.
The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.
The DS-12 offers concept of individual feature setup based upon the requirements of each customer. The transmitter is available in a basic configuration that will meet the needs of most users for most model
types. For individual setting of the transmitter there is a configurator available at swshop.jetimodel.com. After the simple registration of your transmitter it is possible to select additional features based upon your individual demands.


Parameters:

Weight [g] - 700
Transmitter Aluminum Case - No
Transmitter Battery Pack (mAh) - 6200
Backlit LCD - 3.5" 320x240px color, high contrast
Memory, SD Card - 8GB
Gimbal Hall Sensors/Vibration - Yes / Yes (not included with the joystick)
Stick Resolution - 4096
Transmitter Frame - Plastic
Gimbals & Buttons - Plastic
Number of antenas 2.4GHz/900MHz - 2 / 1
Dimensions [mm] - 194 x 215 x 55
Output Power - 2.4GHz [mW] - 100
Operational temperature [°C] - (-10 to +60)
Channels - 8 (up to 16)
Control Inputs (Stick/Switch/Knob) - 14
Backup Module 900MHz - (upgradable)
Flight Modes - 3 (up to 6)
Free Mixes - 5 (up to 20)
Data Graphs - (upgradable)
Audio Player - (upgradable)
Logical Switches - 0 (up to 16)
Number of Remote Commands - 0 (up to 16)
Servo Sequencer - 0 (up to 6)
Timers - 3 (up to 10)
Displayed Telemetry Values - 10 (up to 40)
Sound on Events - 5 (up to 20)
Alarms - 10 (up to 40)
Vibration Alarms - (upgradable)
Voice Output - (upgradable)
MP3 - Active
Microphone - Active
Gyro Settings - 1 (up to 3)
Servo Balancer - (upgradable)
Function Curves - (upgradable)
Throttle Limiter (heli) - (upgradable)
Variometer - (upgradable)
Flight Mode Trim - Active
Data Stream Logging - 80
Telemetry Controls - 0 (up to 16)
Voice Commands - 0 (up to 15)
Lua Apps - 10
Ditex Servo Telemetry - Active
Double Path - (upgradable)
Accelerometer - (upgradable)
RF modules 2.4GHz/900MHz - 1 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US)
Control Inputs (Stick/Switch/Knob) - 14
