Description

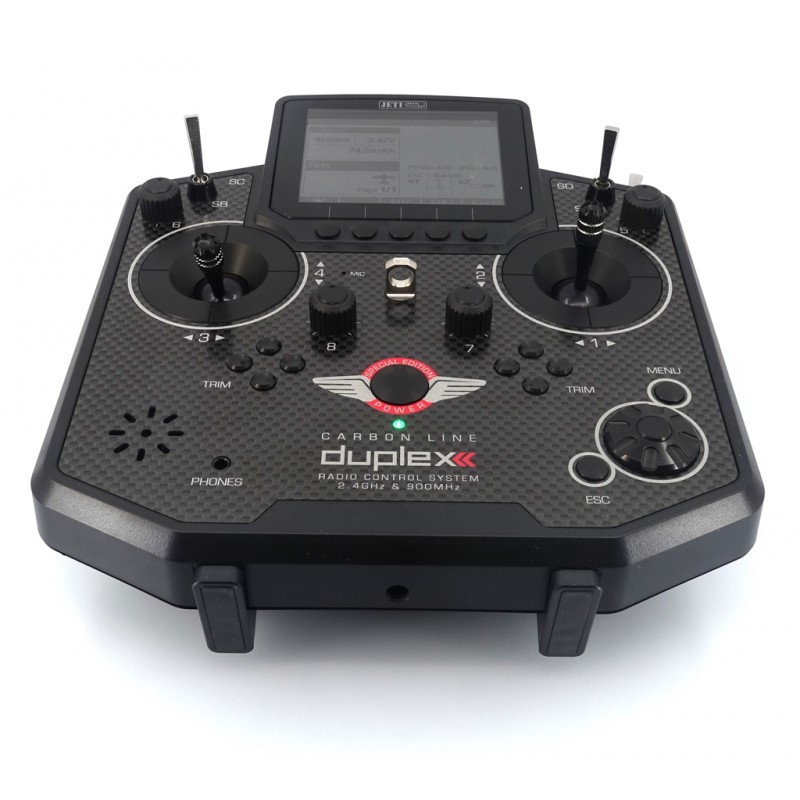

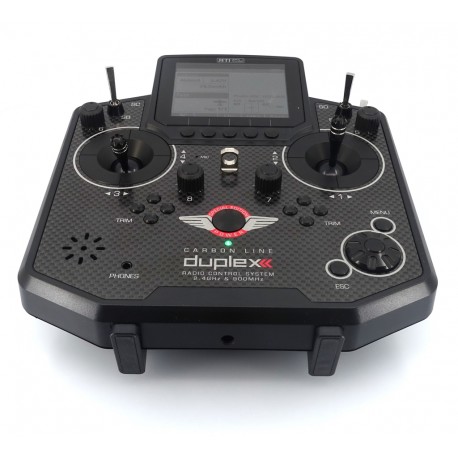

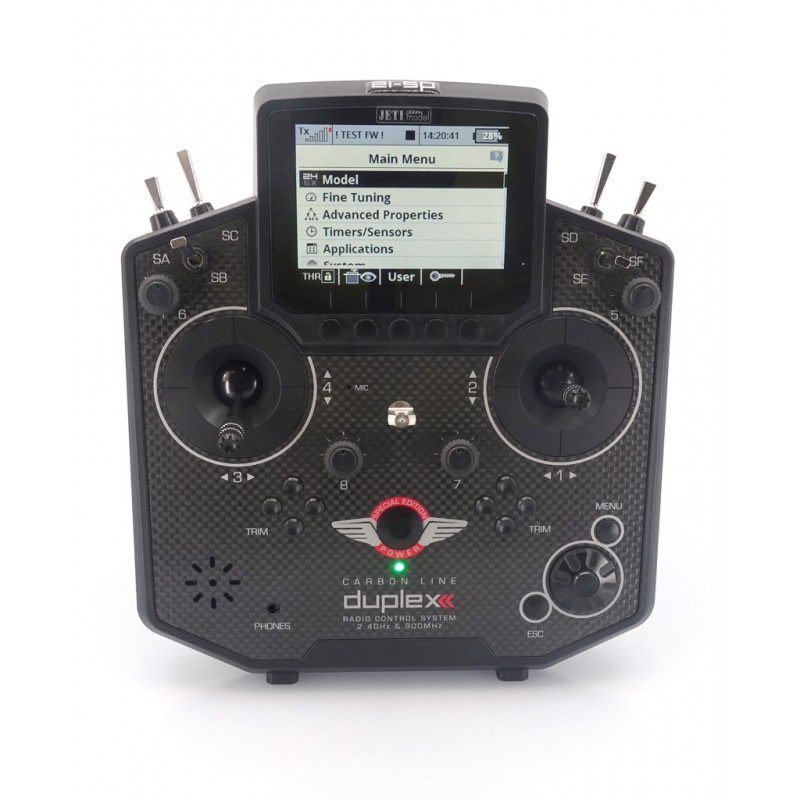

New special edition DS-12 transmitter has full-metal precise gimbals and full-metal buttons from the top line of DC/DS-24 transmitters. It also has a carbon front panel. This transmitter is in a black color and will be delivered as standard in a DUPLEX plastic case and with an R5L receiver.

Changes of the special edition:
- DS-12 transmitter in black color
- Full-metal precise gimbals
- Full-metal buttons
- Carbon front panel
- DUPLEX plastic case
- R5L receiver

Parameters:
Weight [g] - 700
Transmitter Aluminum Case - No
Transmitter Battery Pack (mAh) - 6200
Backlit LCD - 3.5
Memory, SD Card - 8GB
Gimbal Hall Sensors/Vibration - Yes / Yes (not included with the joystick)
Stick Resolution - 4096
Transmitter Frame - Plastic / Carbon Front Panel
Gimbals & Buttons - Aluminium
Number of antenas 2.4GHz/900MHz - 2 / 1
RF modules 2.4GHz/900MHz - 1 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US)
Control Inputs (Stick/Switch/Knob) - 14
Dimensions [mm] - 194 x 215 x 55
Output Power - 2.4GHz [mW] - 100
Operational temperature [°C] - (-10 to +60)
Channels - 8 (up to 16)
Control Inputs (Stick/Switch/Knob) - 14
Backup Module 900MHz - (upgradable)
Flight Modes - 3 (up to 6)
Free Mixes - 5 (up to 20)
Data Graphs - (upgradable)
Audio Player - (upgradable)
Logical Switches - 0 (up to 16)
Number of Remote Commands - 0 (up to 16)
Servo Sequencer - 0 (up to 6)
Timers - 3 (up to 10)
Displayed Telemetry Values - 10 (up to 40)
Sound on Events - 5 (up to 20)
Alarms - 10 (up to 40)
Vibration Alarms - (upgradable)
Voice Output - (upgradable)
MP3 - Active
Microphone - Active
Gyro Settings - 1 (up to 3)
Servo Balancer - (upgradable)
Function Curves - (upgradable)
Throttle Limiter (heli) - (upgradable)
Variometer - (upgradable)
Flight Mode Trim - Active
Data Stream Logging - 80
Telemetry Controls - 0 (up to 16)
Voice Commands - 0 (up to 15)
Lua Apps - 10
Ditex Servo Telemetry - Active
Double Path - (upgradable)
Accelerometer - (upgradable)
