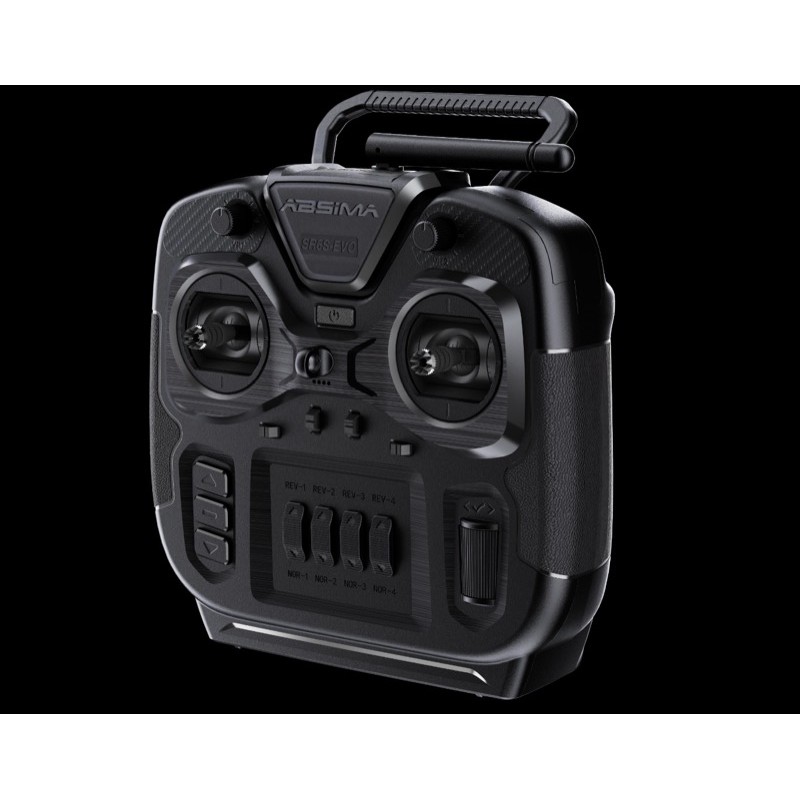

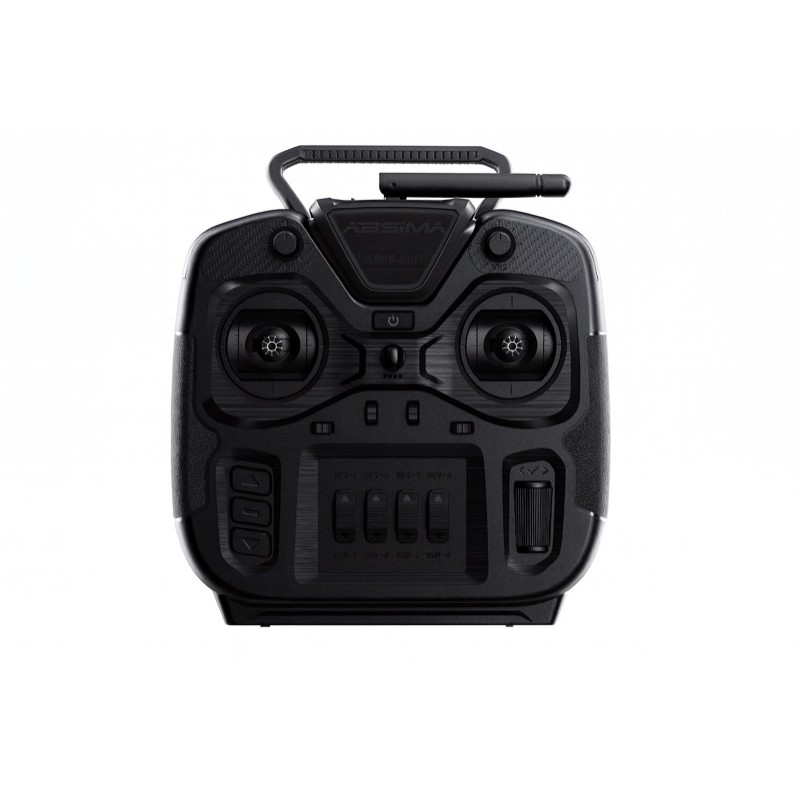

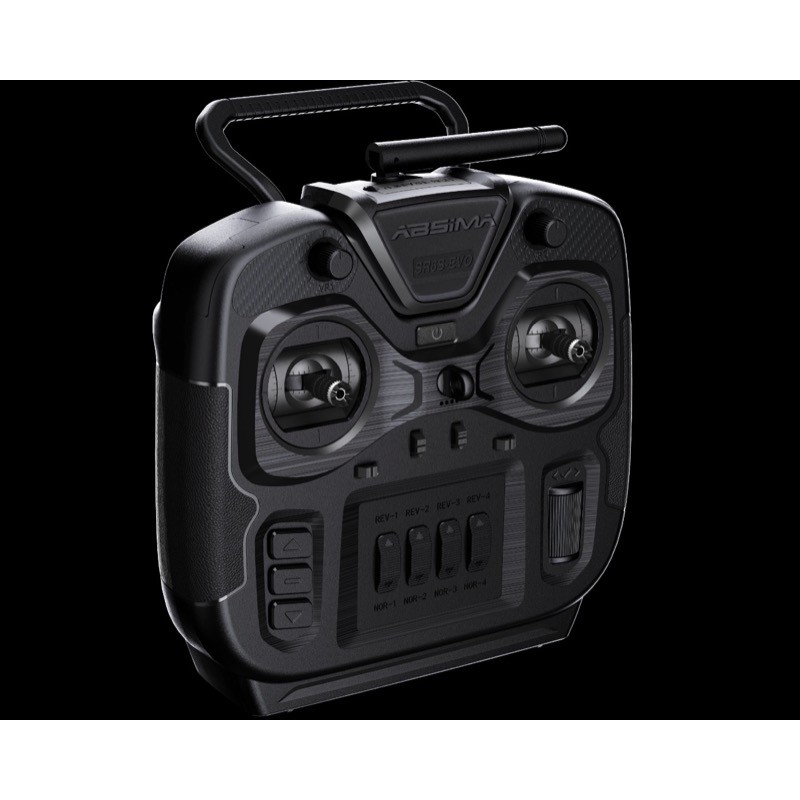

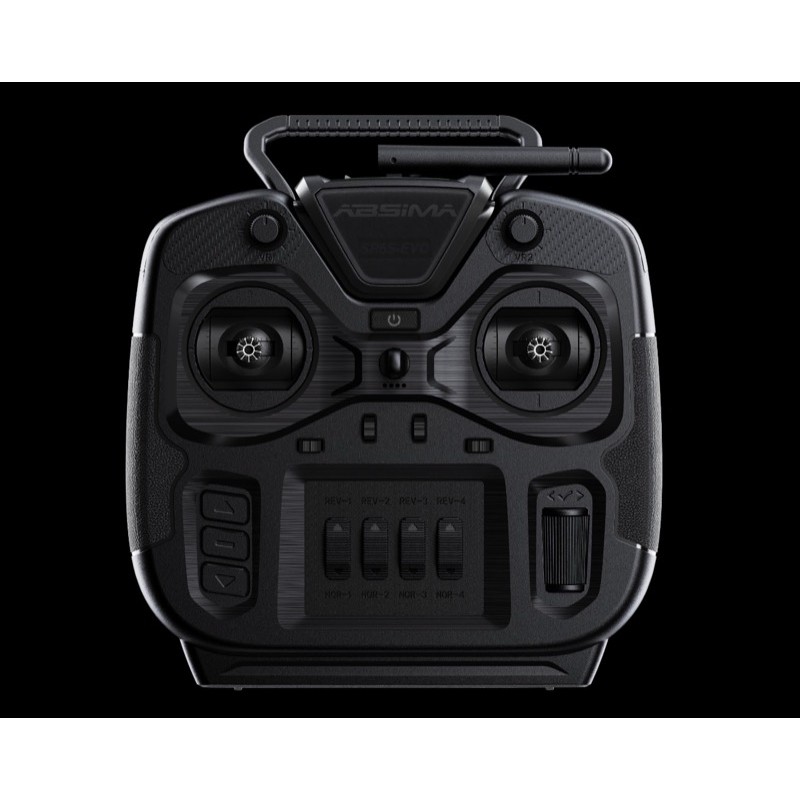

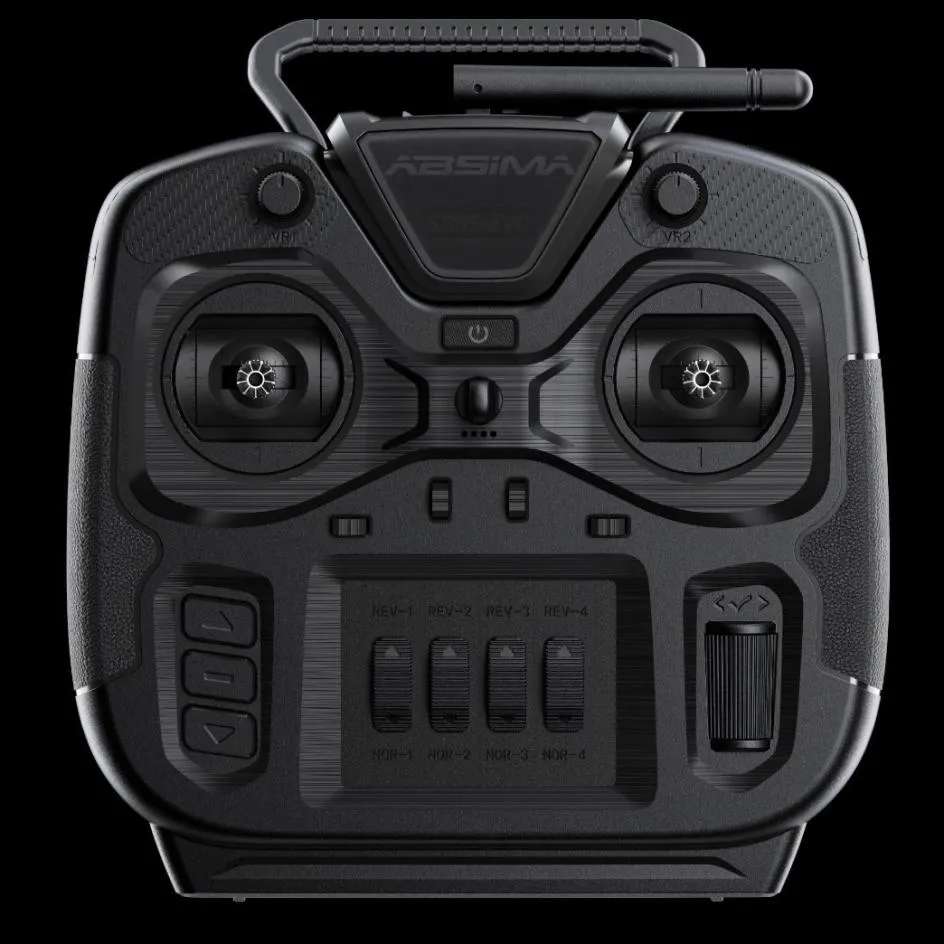

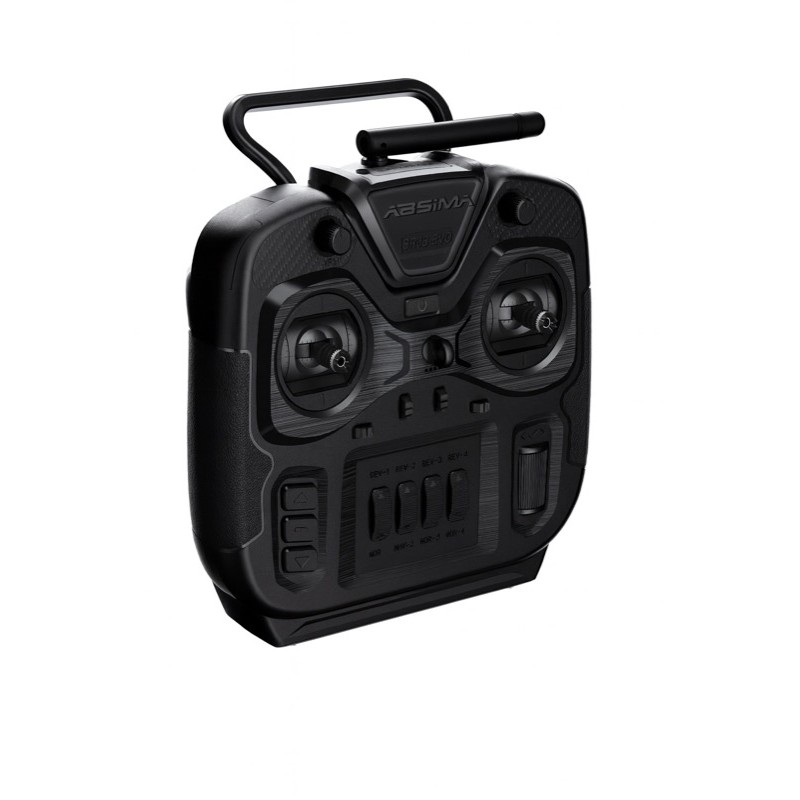

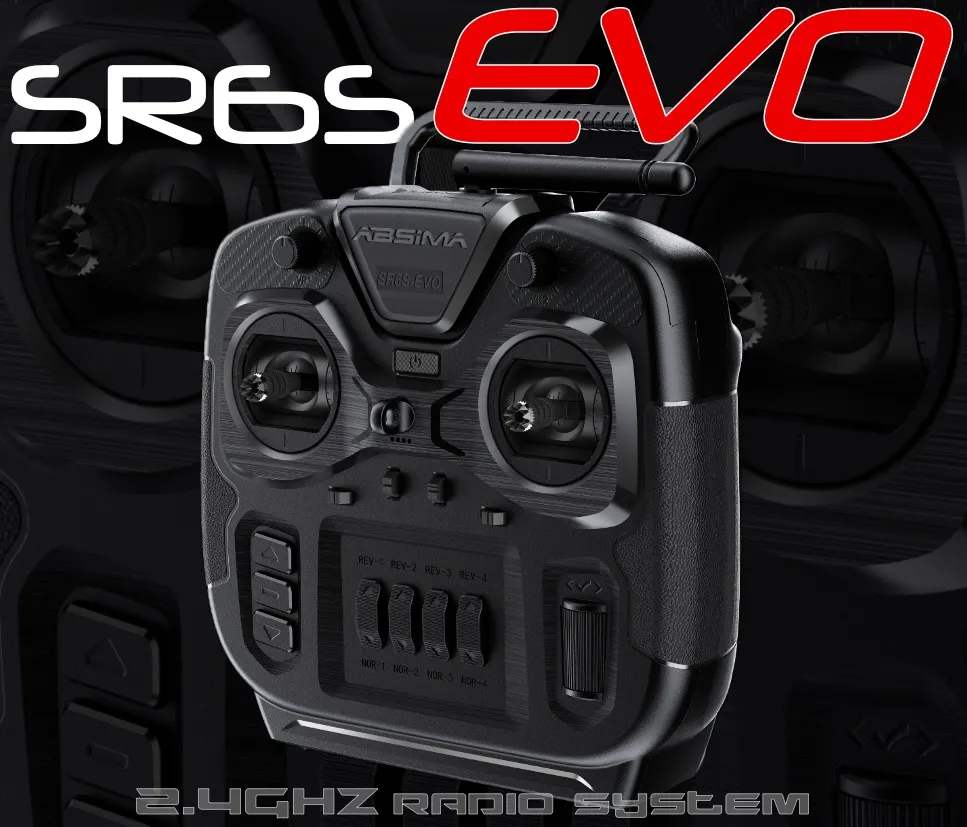

> Absima 6-Channel Stick Type Radio Set “SR6S-EVO” 2.4GHz

Manufacturers

Absima 6-Channel Stick Type Radio Set “SR6S-EVO” 2.4GHz View larger
Previous Next

Absima 6-Channel Stick Type Radio Set “SR6S-EVO” 2.4GHz

AB2000023

New product

In stock

45,00 € tax incl.

Add to wishlist

Data sheet

Frequency 2,4 Ghz
Channels 5 - 10

More info

With the SR6S-EVO 6-channel remote control and the waterproof R6WP receiver, price-conscious drivers can enjoy superior range, optimal responsiveness, and above-average interference resistance at an affordable price.

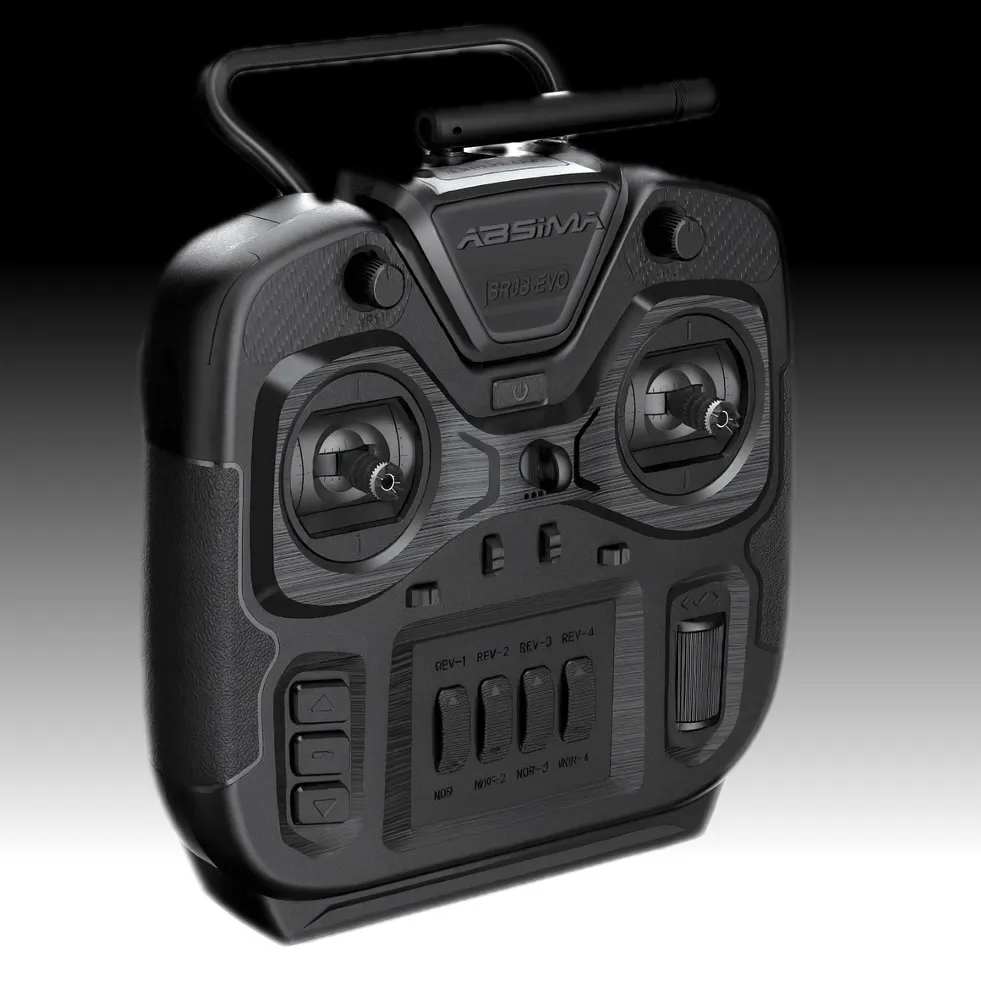

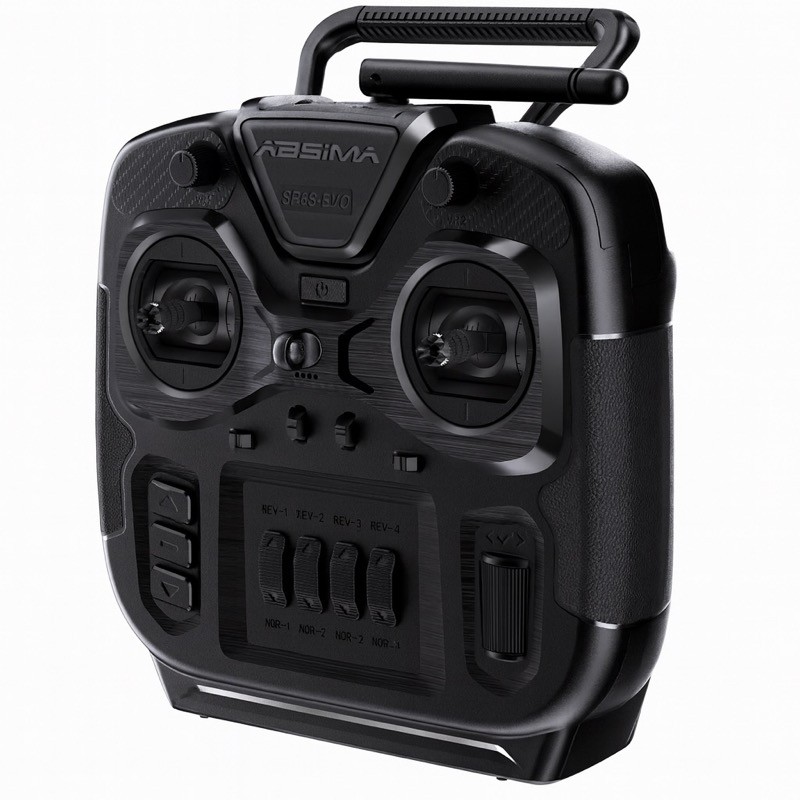

But there is no shortage of comfort and technology either. The ergonomically shaped “stick-type” transmitter not only impresses with its great looks, but also feels good to hold. The stylish aluminum sticks provide a good grip and all available channels are easily accessible while driving. In addition, the maximum speed can be limited to make it easier for beginners to take their first steps in driving.

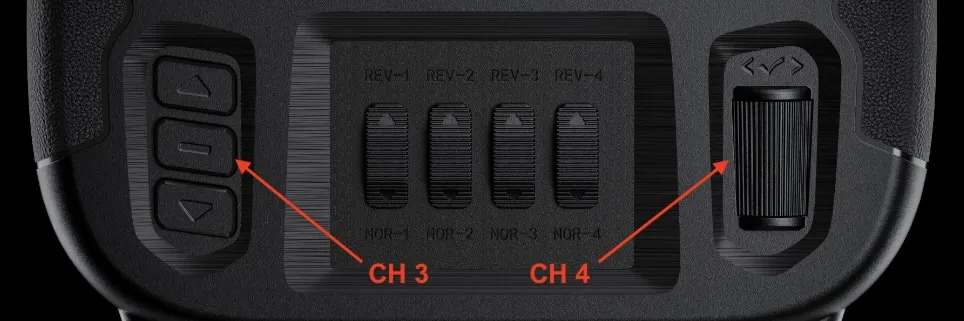

CH3: 3-way switch, for example for winches (Mode 1 / Stop / Mode 2).
CH4: Rotary control (15 clicks left / 15 clicks right / pressing the control button = neutral position)

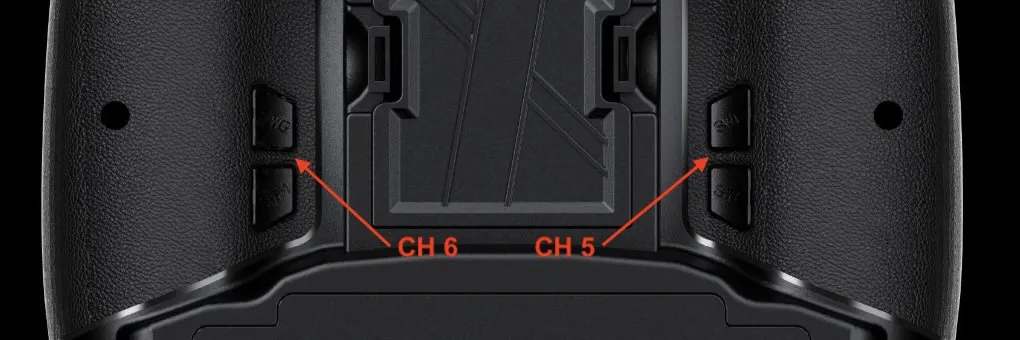

CH5 Push button (pressing the buttons = contact / releasing the buttons = no contact).
CH6 2-way switch (permanent switching by pressing the respective button)

FEATURES:

  • 6-channel transmitter SR6S-EVO

  • 6-channel receiver R6WP (waterproof)

  • TRIM function

  • D/R function

  • Reverse function

  • High-Voltage servo compatible

  • Transmitter is LiPo compatible (JST/BEC and JR/FUT connector)

  • Speed-Limiter function (D/R) for beginners

  • Failsafe function

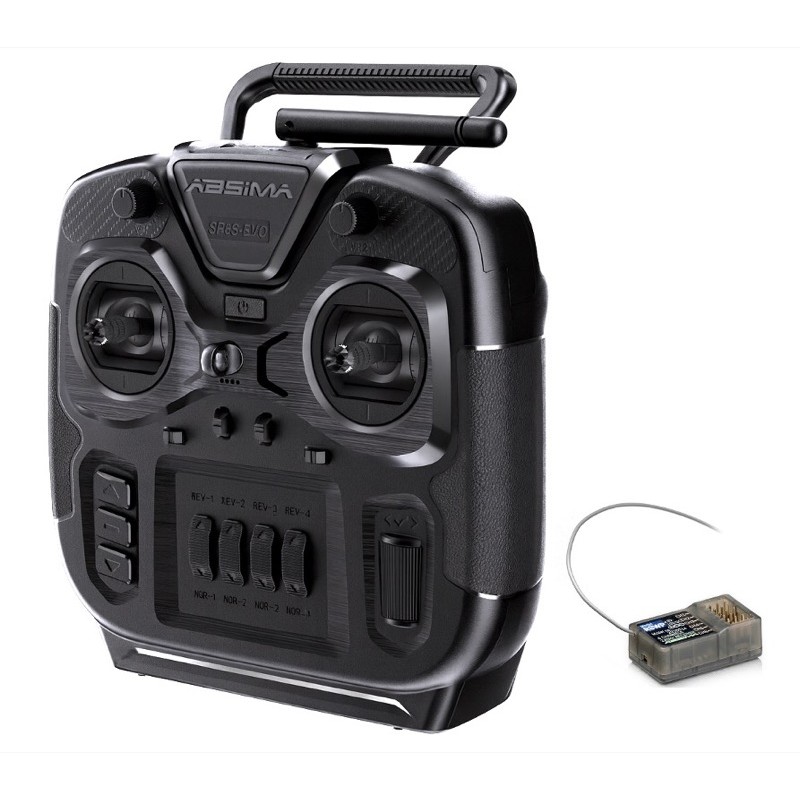

SCOPE OF DELIVERY:

  • SR6S-EVO 6-channel transmitter

  • R6WP 6-channel receiver (waterproof)

  • Manual (DE/EN/FR)

RECOMMENDED ACCESSORIES

  • 4* AA batteries for transmitter (4120012) or

  • LiPo battery for TX (NOTE: Remote control does not have a charging function)

  • Additional receiver R6WP (2020014)

TECHNICAL DATA TRANSMITTER:

  • 2.4GHz FHSS-Technology

  • Response time: 5MS

  • Battery: 4* AA batteries or LiPo pack (NOTE: Remote control does not have a charging function)

  • V-Range transmitter: 4.8V - 12V (2-3S LiPo compatible)

  • Operating current TX: 80-120mA@5V

  • Radio distance: up to 250m

  • Frequency range: 2402.0-2480.0MHz

  • Output Power (Watt): 0.096W

  • Temperature range: -10° - +60°

  • 6 channels with different functions

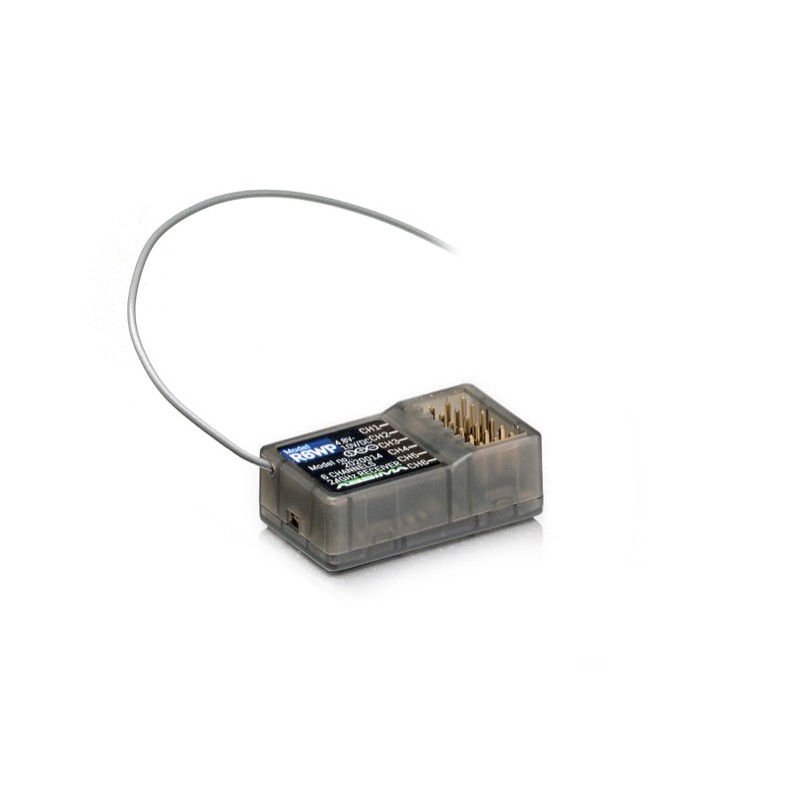

TECHNICAL DATA RECEIVER (2020014):

  • V-Range RX: 4.8V - 10V

  • Operating current RX: 30mA (HV-Servos compatible; JR/FUT)

  • Temperature range: -10° - +60°

  • Receiver port 5 and 6 usable for continuous current

  • RX dimmensions: 35x20x13 mm

  • Weight: 7g
