FEATURES

• HiEnd 32-Channel Computer Remote Control System
• Dual display: large LCD touch colour display (640 x 240 pixels) and small colour display for displaying telemetry data
• Potless joystick
• GPS
• Professional features for competition pilots & ambitious model athletes
• Transmission types T-FHSS, FASSTest, FASST, S-FHSS
• Receiver R7108SB with antenna diversity
• telemetry function
• Telemetry output via loudspeaker, display or headphones
• New S.BUS functionalities
• vibration alarm
• Possibility of conversion for mode 1 to 4
• Memory for model name & user
• Menu navigation in 9 languages
• Huge colour touch display
• 6 digital trimmings, 8 switches, 2 sliders
• Integrated antenna
• Graphical servo monitor
• Firmware updates possible via SD card
• Powerful timer
• POTLESS joystick technology
• Scanning of control stick movement without contact
• Hi Resolution with 4.096 steps
• More direct response
• No measurable latency
• Temperature stable
• Completely wear-free
• Perfect interaction with the double ball-bearing
• Futaba billet units

DESCRIPTION
HiEnd for uncompromising professional demands. The Futaba T32MZ is the flagship of the Futaba remote control series. The complete know-how of the Futaba engineers has flowed into this system. Due to the numerous innovative features, the T32MZ is clearly the reference in the remote control market.

The huge colour touch display guarantees perfect operation of the clearly arranged transmitter software. The T32MZ supports the established transmission garden T-FHSS, FASSTest, FASST and S-FHSS. Thanks to its 32 channels, the transmitter can be used in an almost limitless range of applications.

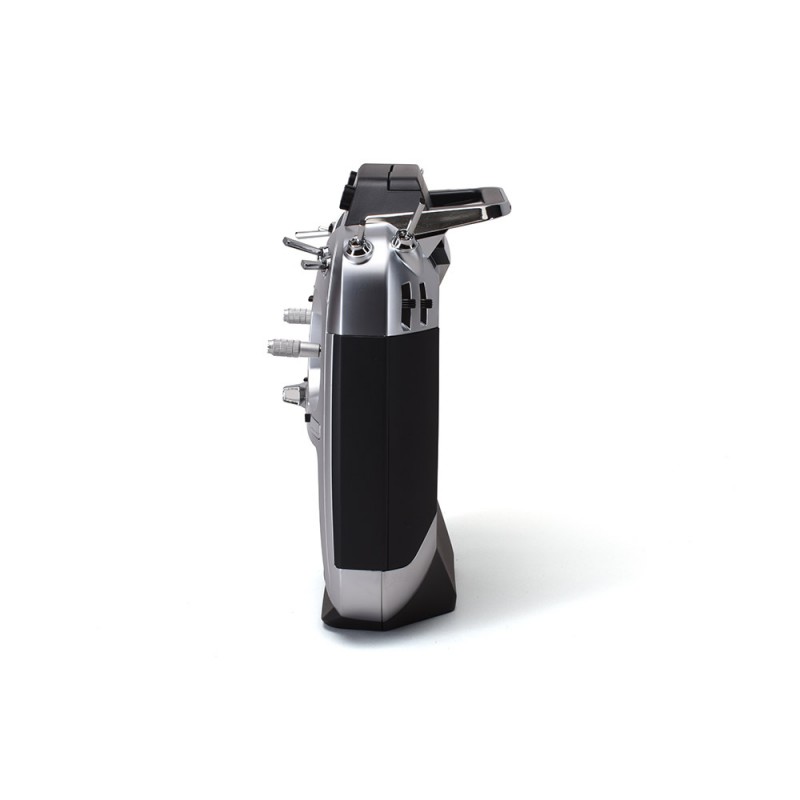

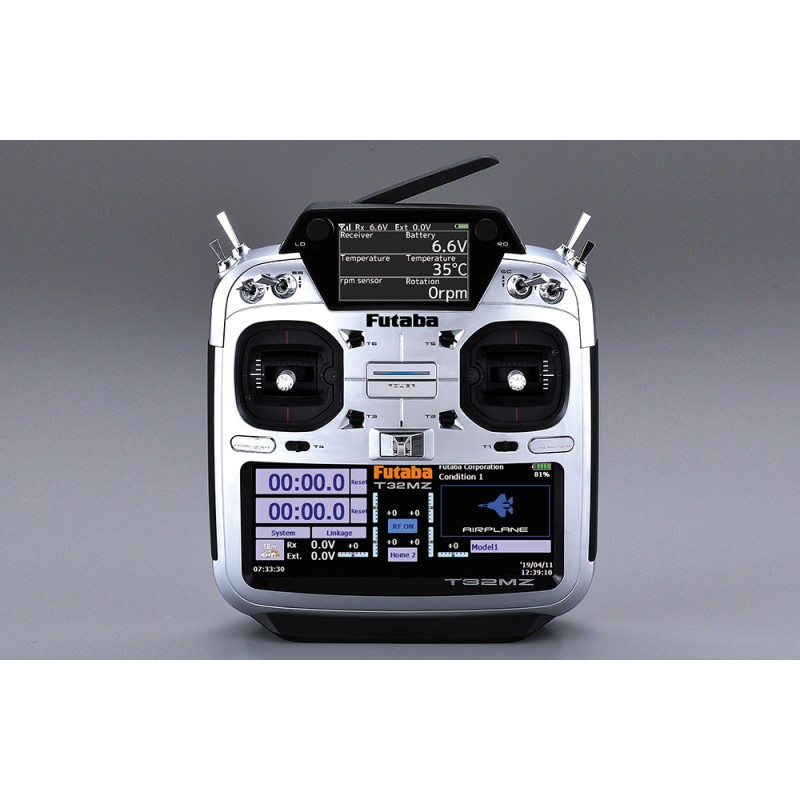

The transmitter housing in Smart Design impresses with its ergonomic design and outstanding processing quality. With the Dual Display, Futaba takes a new approach and now displays the telemetry and timer data on the upper display to make it easier to read in flight.

Of course, the T32MZ is equipped with the innovative POTLESS joysticks. The movement of the joysticks is scanned contact-free and therefore absolutely wear-free. While in a potentiometer a pickup always grinds over a carbon layer, with POTLESS joysticks there is no mechanical contact between the joystick (magnet) and the signal pick-up (magnetic sensor) during the scanning of the joystick movements.

The transmitter is equipped with 6 trim sensors, 8 switches and 2 linear sliders. All transmitters and switches are freely assignable. All operating elements are ergonomically arranged and can be operated perfectly in flight. The ball bearing mounted joystick units impress with their unbelievable precision and unique adjustability. In addition, the Futaba T32MZ has connections for S.BUS, headphones and teacher-pupil operation.

With the T32MZ, Futaba is further expanding its leading position in the remote control segment and positioning itself for the future in the RC market. For competition pilots and professional model athletes, the T32MZ is the ultimate in...!

TECHNICAL DATA

• Transmission type: FASSTest / FASST / T-FHSS / S-FHSS
• Frequency range: 2.4 GHz
• Channels: 32
• Transmission power: 100 mW EIRP

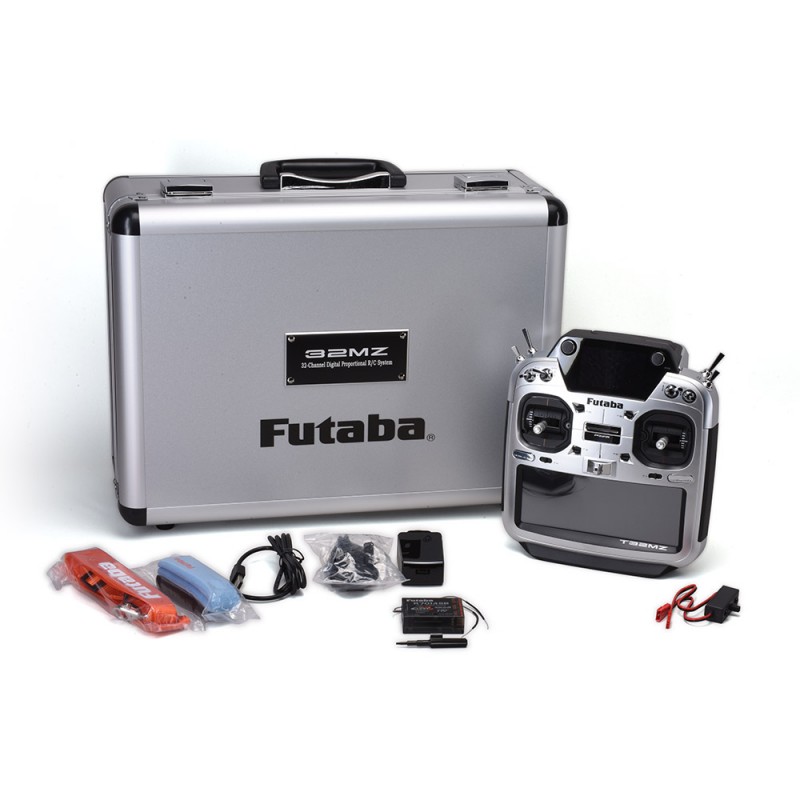

SCOPE OF DELIVERY

• T32MZ Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
• R7208SB Receiver
• LT1F6600B Lithium Polymer Battery and AC Adapter Switch Harness
• Tool Box (includes special jig for adjustment)
• Neck Strap
• Transmitter Case
