> >>Jeti Model DSM 10 - Dual Switch Mixer

Manufacturers

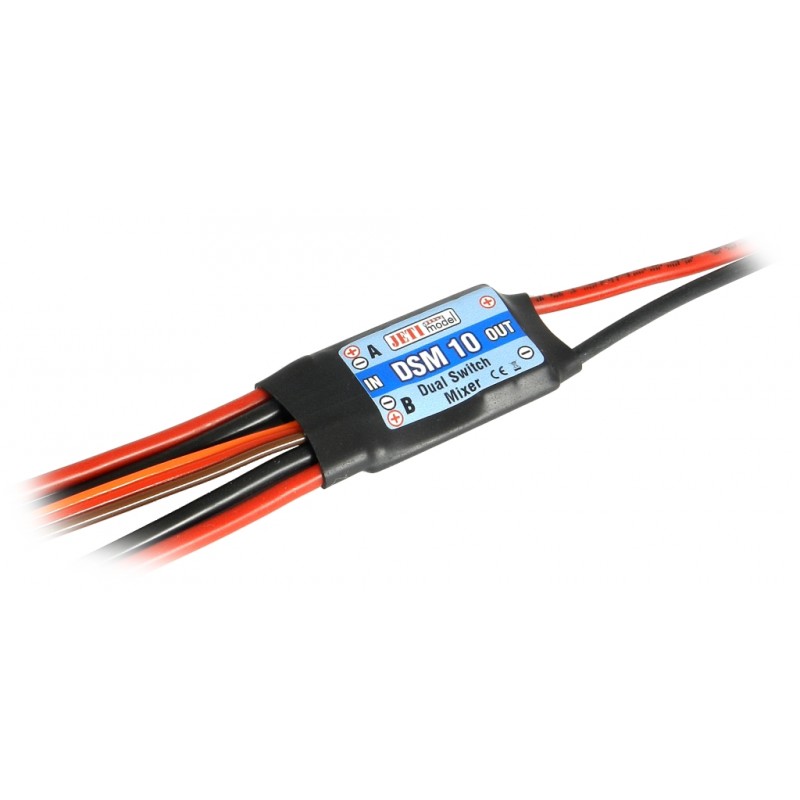

Jeti Model DSM 10 - Dual Switch Mixer View larger

Jeti Model DSM 10 - Dual Switch Mixer

JETI J-DSM-10

New product

Backorder (7 - 10 working days)

83,70 € tax incl.

Add to wishlist

More info

Description

DSM 10 is an electronic switch for switching of two receiver batteries which are connected to one receiver. The product also includes a receiver current supply switch. Batteries that are connected to the inputs of the DSM 10 are permanently measured and connected with the aid of a hysteresis comparator either both to the output, or one of both batteries with the higher voltage only.

The DSM 10 exit consists of a MPX connector which can be used for direct connection of the exit to the receiver. The MPX connector is a fixed part of Duplex receivers with the label EPC (External Power Connector)

Parameters

Weight [g] - 24
Dimensions [mm] - 38 x 20 x 7
Sustained current [A] - 10
Peak current (max 30s) [A] - 20
Telemetry - No
Operational temperature [°C] - (-20) to 85
Recommended input voltage [V] - 5 to 8.4
Idle current [µA] - 130
Number of battery inputs - 2
Input voltage max. [V] - 13
