New Jeti Model DPS 40 Twin Electronic Switch View larger

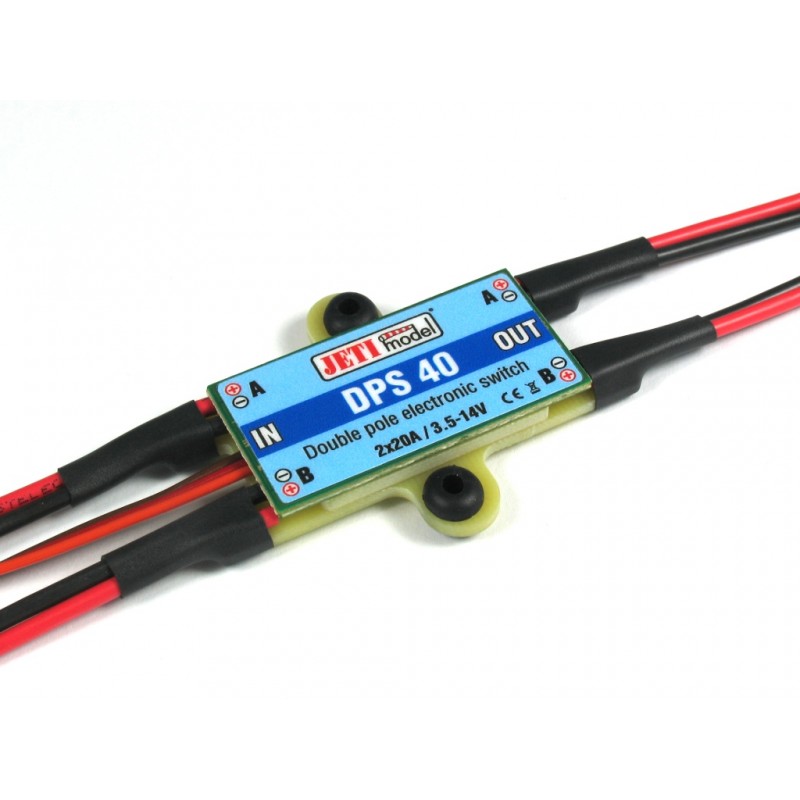

Jeti Model DPS 40 Twin Electronic Switch

JETI J-DPS-40

New product

Backorder (5 - 7 working days)

59,02 €

Add to wishlist

More info

Description

The DPS 40 (twin electronic switch) is electronic switches mainly meant to switch supply voltages of receivers / servos, regulators, fuel pumps or similar equipment. A big advantage of electronic switches in comparison to mechanical ones is in general their higher reliability as far as vibration resistance is concerned. Another advantage of the electronic switch is given by its practical ability to withstand an unlimited number of switching cycles.

Electronic switches have no moving parts like contacts which would be wearing out during switching processes, therefore their durability is extremely long. Moreover, they are not prone to spontaneous and unexpected false tripping with known disastrous effects. Last but not least, electronic switches offer much lower inherent transient resistance in comparison to mechanical switches.

The electronic switches DSP 40 is operated with the aid of a magnetic switch which can be fixed to the fuselage or elsewhere. The system becomes switched on or off with application of a special magnet.

The switches DSP 40 is admittedly intended for the purpose of switching supply voltages of receivers and servos, but they may be as well successfully used for other DC switching tasks.

Parameters

Weight [g] - 31
Dimensions [mm] - 46 x 45 x 6.5
Sustained current [A] - 20
Peak current (max 30s) [A] - 40
Telemetry - No
Operational temperature [°C] - (-20) to 85
Recommended input voltage [V] - 3.5 to 14
Idle current [µA] - 160
Number of battery inputs - 2
Input voltage max. [V] - 16
