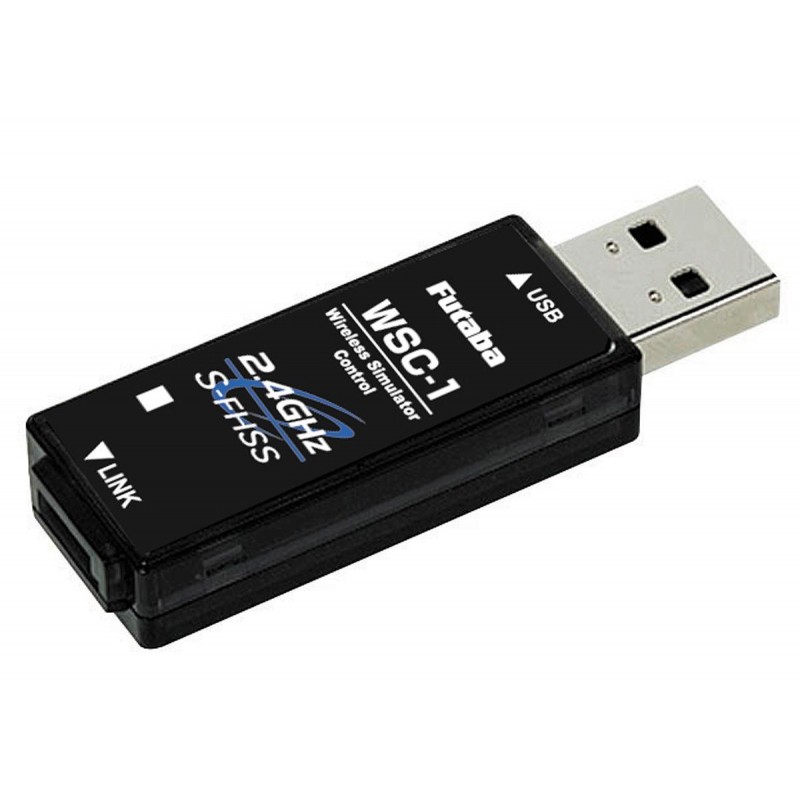

FUTABA Sim Control WSC-1

The FUTABA WSC-1 is a USB interface for PCs with Microsoft Windows 10 or Windows 8.1 operating system for wireless control of RC simulators with 2.4 GHz FUTABA transmitters via the S-FHSS transmission system. A 2.4 GHz S-FHSS receiver with eight channels is integrated in the USB module.

 The USB interface is installed via Plug & Play. After the computer has recognised the interface and installed the necessary drivers, the S-FHSS transmitter is bound to the receiver. After the successful binding process, the calibration of the control sticks and all other settings can be made on the RC simulator.

 The WSC-1 can be used to control the RC simulators Aerofly RC7 / RC8, RealFlight RF8 / RF9, MPX MULTIflight and many others. Older RC simulators, for which the supplied USB interface serves as a dongle (licence key), cannot be operated with the WSC-1.

 In addition, the WSC-1 can also be used as a game controller for other computer programs and games with the coupled S-FHSS Futaba transmitter.

INTERFACE:
USB 2.0

APPLICABLE OS:
Windows® 10/8.1

USB CONNECTOR:
USB Series A Connector

DIMENSIONS:
18.2 mm x 56.5 mm x 9.0 mm
0.72 in x 2.22 in x 0.35 in

WEIGHT:
7.5 g
0.26 oz

OPERATING VOLTAGE:
5.0 V ± 0.2 V (USB Bus Power)

MAXIMUM OPERATING RANGE:
About 32.8 ft (10m) without obstacles (Optimum condition)

OPERATING ENVIRONMENT:
Temperature: -10 – 45° C
Temperature: 14 – 113° F
