> >>Hacker Motor Standard Aluminium Servo Ditex EL3214S

Manufacturers

New Hacker Motor Standard Aluminium Servo Ditex EL3214S View larger
Previous Next

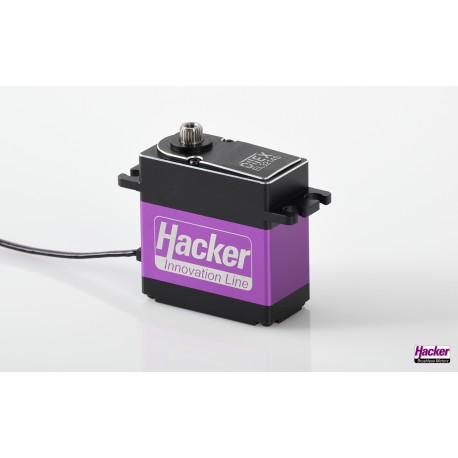

Hacker Motor Standard Aluminium Servo Ditex EL3214S

HK51003214

New product

Backorder (7 working days)

109,99 € tax incl.

Add to wishlist

Data sheet

Servo Type Analogic
Gear Metal

More info

DITEX EL3214S

Product description and features

Standard servo with all-aluminium housing and metal gearbox.
32.0 kilograms of actuating force at 7.4 volts and an actuating speed of 0.14 seconds for 60 degrees.

Suggested application area

Larger model aircraft, powerful applications such as landing flaps, ships or cars.

Delivery contents

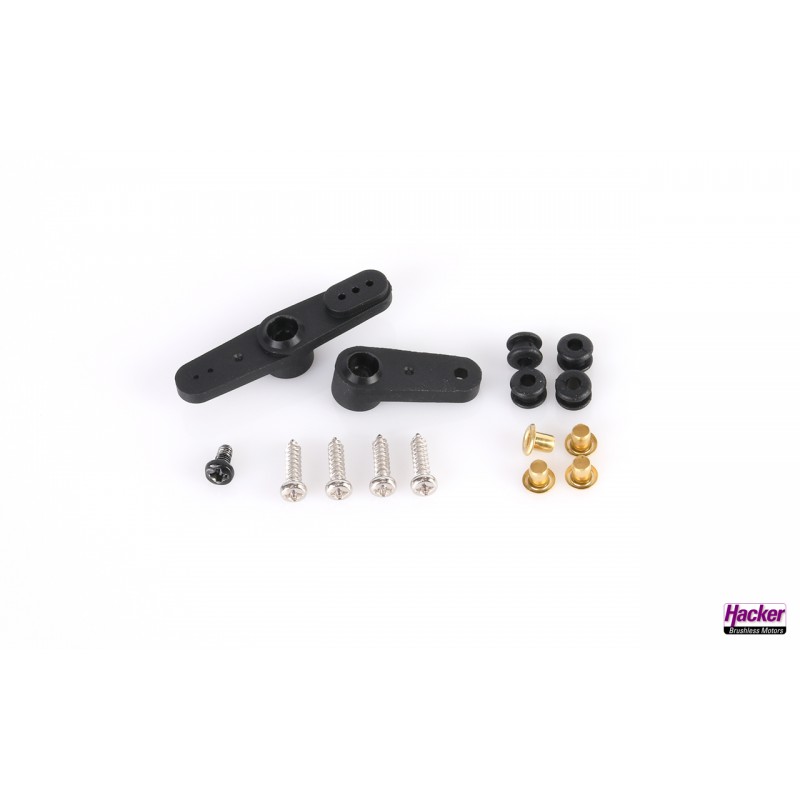

1 DITEX EL3214S, servo arms and fixing material.

General

Recommended application area - Larger flight models, strong applications e. g. flaps, ships or R/C cars.
Classification - Standard

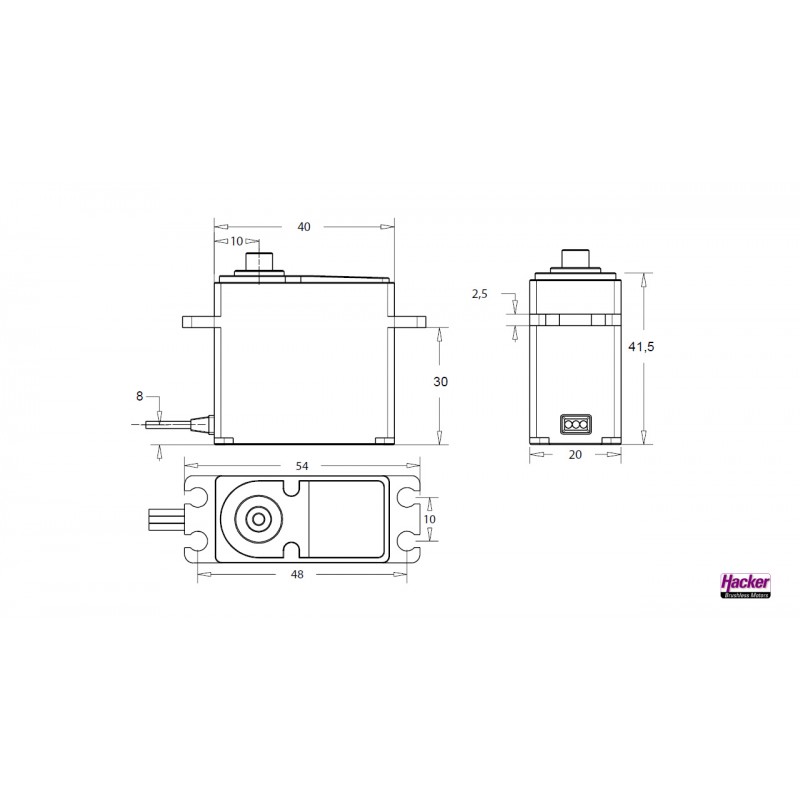

Dimensions and weight
Length - 40mm (1.57in)
Width - 20mm (0.79in)
Height - 41.5mm (1.63in)
Weight - 85g
Weight incl. connection cable - 85g (3oz)

Specifications
High voltage capable - yes
Voltage 1 (V1) - 6V
Voltage 2 (V2) - 7.4V
Max. input voltage - 8.4V
Regulating time V1/60° - 0.18s
Regulating time V2/60° - 0.14s
Pulling load V1 - 25kg/cm
Pulling load V2 - 32kg/cm
Frequency - 55Hz to 333Hz
Outer diameter output in mm - 5,9
Housing type - Aluminium
Motor type - Coreless
Transmission type - Steel
Number of output cogs - 25 (Futaba/Savöx compatible)
Angle measurement - Potentiometer
Programmable - no
Soft start - no
Telemetry - no
