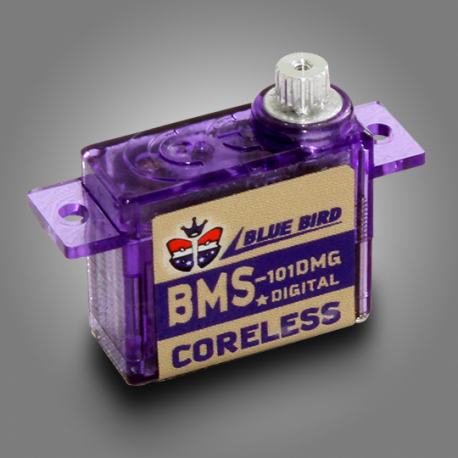

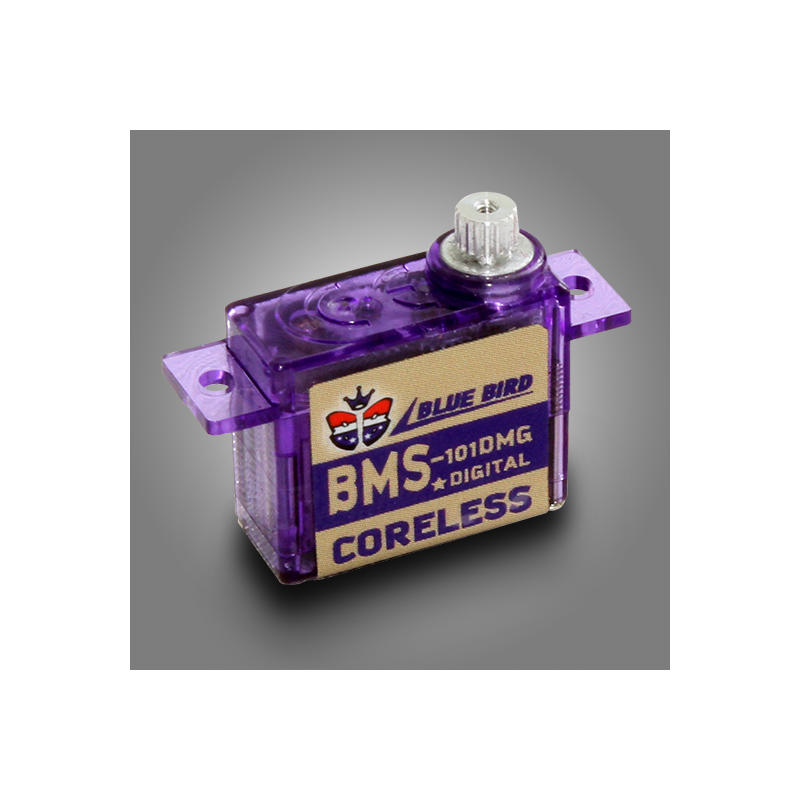

Blue Bird BMS-101DMG (Coreless) Micro Servo
Recipient :
* Required fields
or Cancel
Servo Type | Analogic |
Torque | Until 3 Kg |
Gear | Metal |
Application
3D Airplane / DLG / HLG / F3K / F3P
Specifications
Torque At 4.8V - 0.8 kg-cm / 11.1 oz-in
Torque At 6.0V - 1.0 kg-cm / 13.9 oz-in
Speed At 4.8V - 0.09 sec / 60°
Speed At 6.0V - 0.07 sec / 60°
Idle Current - 3 mAh @ 4.8~6.0V Stopped
Power Supply
Operating Voltage Range - 4.8V ~ 6.0V (4 ~ 5 Cell Ni-MH)
Control Specification
Control System: Digital Controller 12-Bits (4096 Steps) / Frequency?333Hz / Neutral?1500 or 1520us
Dead Band Width: 0.002ms (2us)
Mechanical Specifications
Ball Bearing - N/A

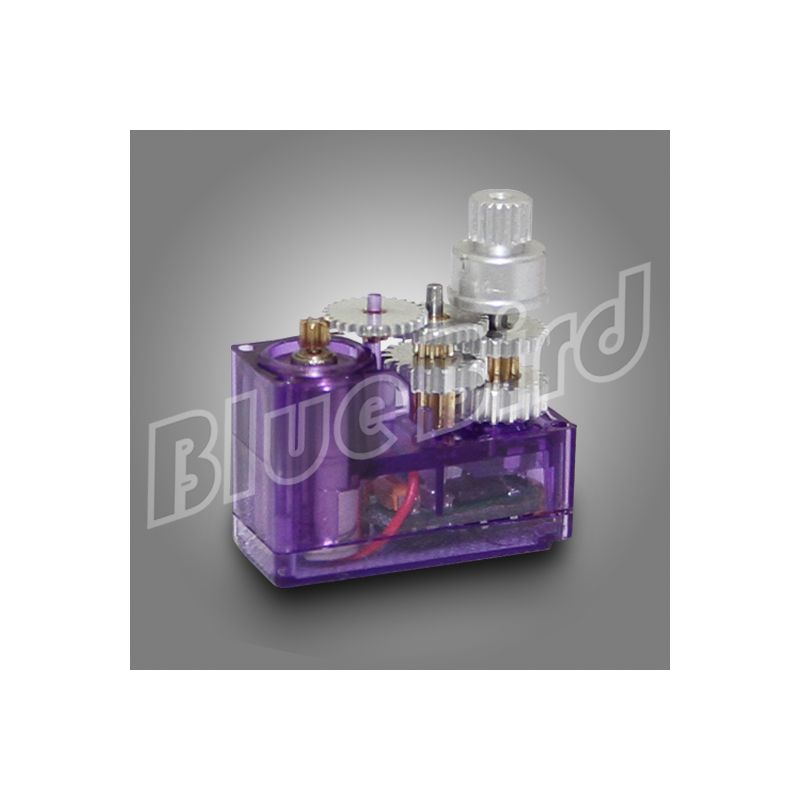

Gear - All Metal Gears
Motor - Coreless Motor
Horn / Gear Spline - 19 Teeth
Physical Specifications

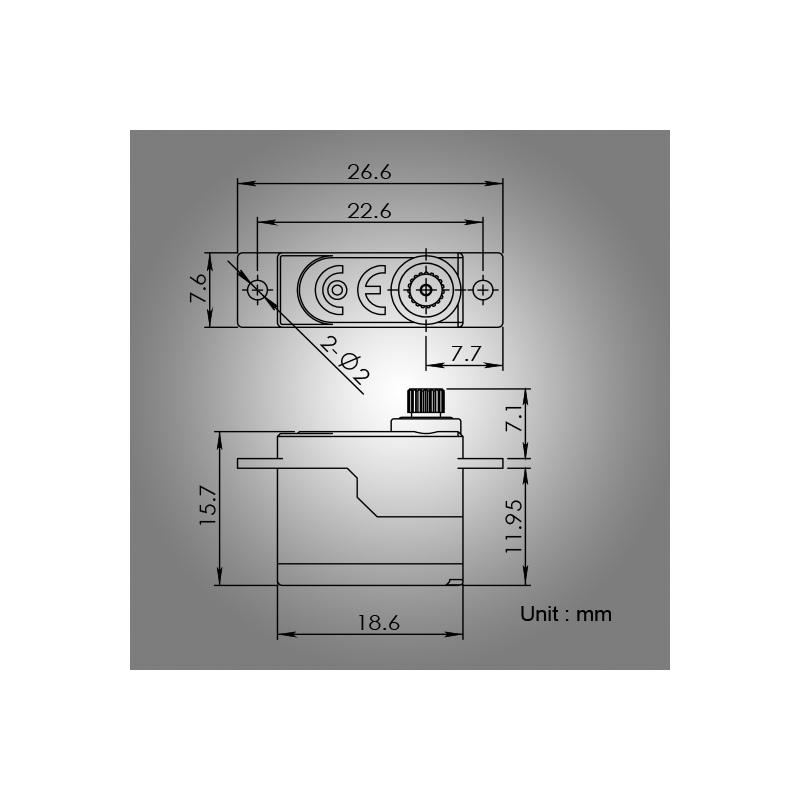

Dimension (mm) - 18.6 x 7.6 x 15.7 mm / 0.73 x 0.3 x 0.62 in
Weight (gram) - 4.4 ± 0.5 grams / 0.15 oz?
