> >>Hitec Servo HS-485HB

Manufacturers

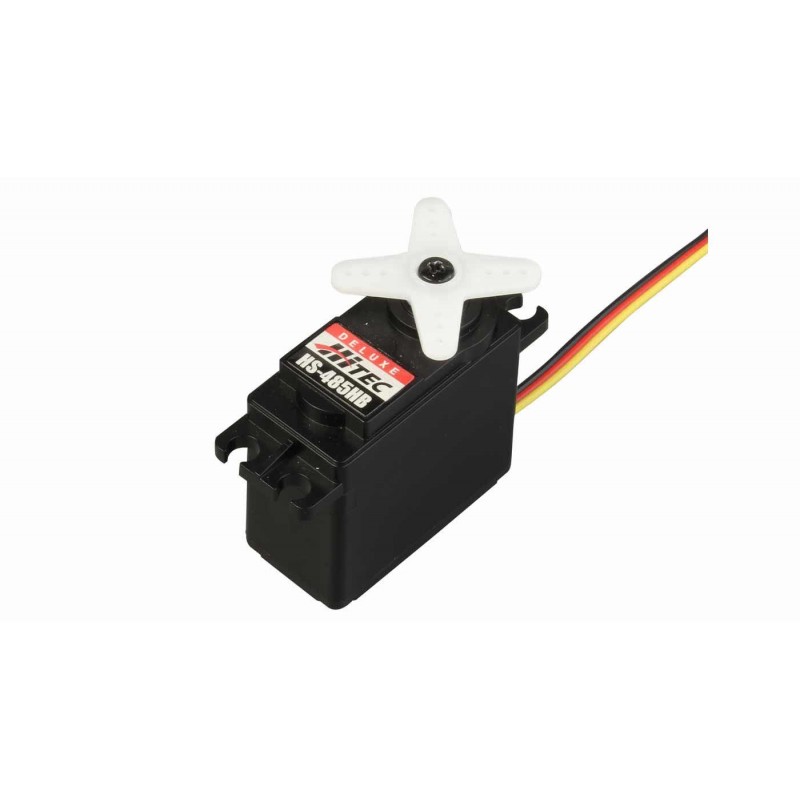

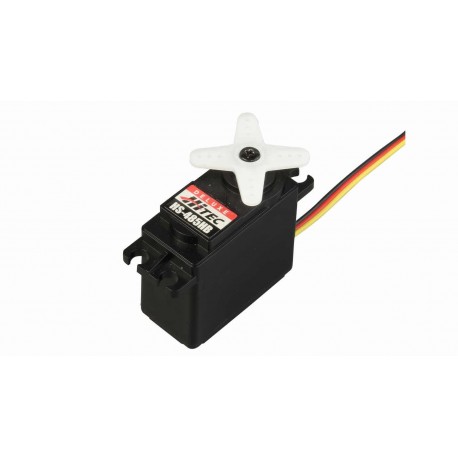

Hitec Servo HS-485HB View larger

Hitec Servo HS-485HB

HT485HB

New product

In stock

27,82 € tax incl.

Add to wishlist

Data sheet

Servo Type Analogic
Torque + 3 - 5 Kg
Gear Karbonite

More info

Powerful high-performance

servo of the 20 mm class High- torque analog servos with top positioning speed. The HS-485HB servo offers unprecedented durability thanks to its exclusive metal KARBONITE ® gearbox and ball bearing on the output shaft. This is very beneficial when low backlash and high precision are important.
The HITEC Servo HS-485HB delivers maximum performance with low weight and is also a favorite with this data for industrial applications. The long life and uniquely designed gear make it one of the most reliable and efficient standard servos on the market.

The HS-485HB is ideal for applications in demanding models such as flight models and electric helicopters.

Technical Specifications

Width : 20 mm
Height : 38 mm
Length : 40 mm
Weight : 0.045 Kg
Servo Type: Standard
Special features: Analog
motor type Servos: brushed
gear: carbonite
Operating voltage in V: 4.8-6.0 V
operating time s / 60 ° at 4 , 8 volt: 0.22
operating time s / 60 ° at 6.0 volt: 0.18
torque in kgcm at 4.8 volt: 5
torque in kgcm at 6.0 volt: 6
toothing: 24T
ball bearing: yes
waterproof: no
recommendation flight: yes
Heli recommendation: Yes
Car recommendation: No
Boat recommendation: Yes
