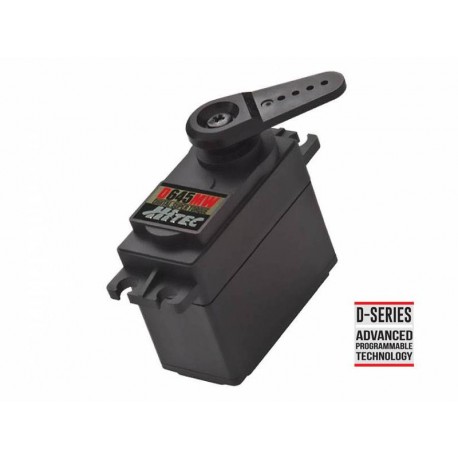

Hitec D645MW 32-Bit High Torque Metal Gear Servo

HTD645MW

Novo produto

Esse produto já não se encontra disponível

54,49 € IVA inc.

Adicionar à Lista de desejos

Ficha informativa

Tipo de Servo Digital
Torque + 10 - 15 Kg
Tipo de Engrenagem Metal

Mais informação

This is the upgraded version of the HS-5685MH

Product Description

The metal D-645MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gears Set
  • Metal / Plastic 1st Gear Set
  • Plastic Case Set
  • Applicable Horns

D645MW Servo Specifications:

Performance Specifications
Operating Voltage Range (Volts DC) - 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) - 0.28 ~ 0.20 ~ 0.17
Maximum Torque Range oz. / in. - 115 ~ 158 ~ 180
Maximum Torque Range kg. / cm. - 8.3 ~ 11.3 ~ 12.9
Current Draw at Idle - 30 mA
No Load Operating Current Draw - 500 mA
Stall Current Draw - 2,650 mA
Dead Band Width - 2 µs

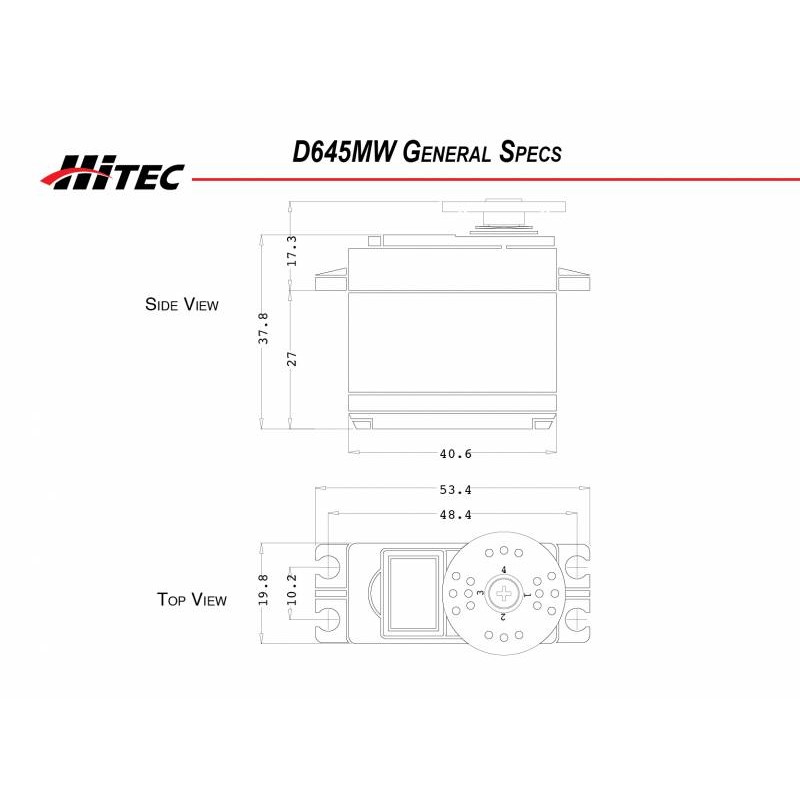

Physical Specifications
Dimensions (Inches) - 1.59 x 0.77 x 1.48
Dimensions (Metric) - 40.6 x 19.8 x 37.8
Weight (Ounces) - 2.11
Weight (Gram) - 57.0
Circuit Type - 32bit Programable Digital
Motor Type - 3 Pole Metal Brush Ferrite
Gear Material - Metal
Bearing Type - Dual Ball Bearing
Output Shaft (type / Ømm) - H25T
Case Material - Plastic
Dust / Water Resistance - N / A
Connector Gauge (AWG) / Strand Count - 22 / 60

Radio Control Applications
Parkflyer - N / A
Sport Plane - 12 - 15 lbs.
Sailplane - 2 meters and up
3D Performance - 12 - 15 lbs.
Scale - 12 - 15 lbs.
Electric Helicopter - 600mm
Gas Helicopter - 50 - 59 Class
On Road - 1/10th
Monster Truck - 1/10th
Buggies - 1/10th
Truggies - 1/10th
Short Course / Truck - 1/10th
Crawlers - N / A
Sail Boat - = >1M & Scale
Power Boat - 1/10th
