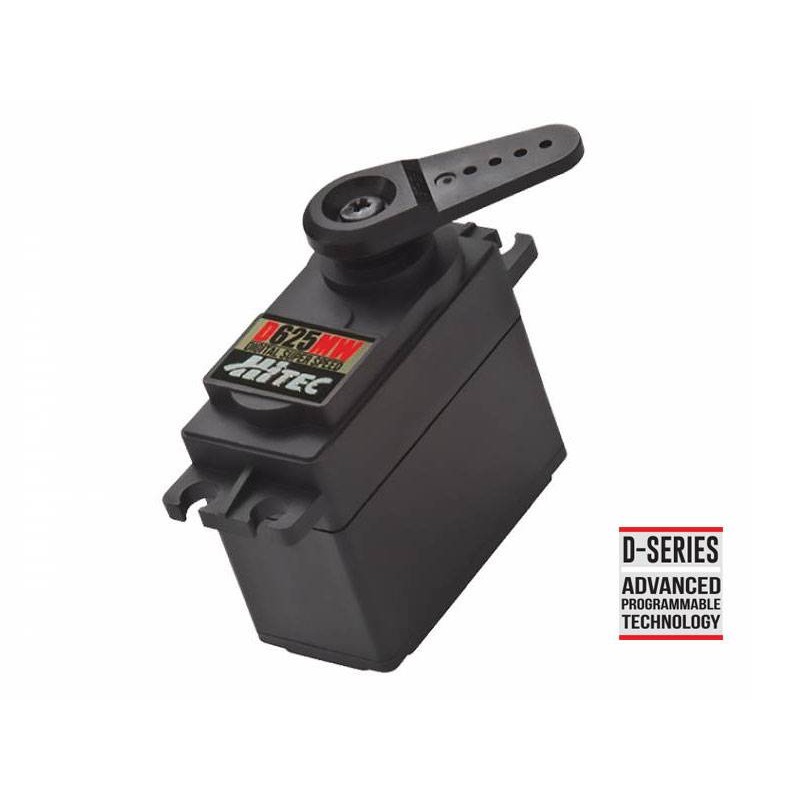

Hitec D625MW Digital High Speed Ball Bearing Metal Gear Standard Servo

For those applications that require a fast standard size servo, the D625MW is an excellent choice.  With a custom designed programmable digital circuit and Hitec's unique MP/metal gear train technology, the D625MW will deliver powerful high speed results!


Servo of the 20 mm class The D625MW, the fast version of the D645MW, is currently the highest on the market thanks to the D-series technology with 32-bit MCU (master control unit) and 12-bit ADC (analog-digital converter) available resolution of servo travels.
The finest responsiveness and perfect positioning accuracy are achieved with this.
Wide-voltage servos can be operated directly on 2-cell lithium-based batteries (LiFe / LiIo / LiPo) with a nominal voltage of 4.8 - 8.4 V.
The D625MW digital servo is fully programmable and offers good durability thanks to its robust metal gear and two ball bearings on the output shaft. It is particularly suitable when little play and high positioning precision are important.
The long service life and the uniquely designed gear make it one of the most reliable and efficient servos on the market.

Features:

• Perfect for the Roban 600 size helicopter ARF Bundles
• Wide Voltage Range: DC 4.8-8.4V
• 2 cell Li-Pi (6 cell Ni-MH) compatible
• Programmable digital amplifier with MOSFET drive
• Gold plated connector
• Narrow dead band width & high standing torque
• Applied H25T horn gear
• 3mm horn screw (‘+’ & HEX socket screw included)
• 32bit MCU / 12bit ADC
• 2 ball bearings MR106
• long life potentiometer

Programmable functions:
• setting the end point (0 ° -180 °), neutral (standard ± 60 °)
• setting the direction of rotation ( clockwise / counter-clockwise)
• Setting the dead zone
• Setting the speed (standard 100%)
• Setting Soft Start (standard 20%)
• Setting the fail-safe function
• Setting the overload protection (standard off)
• Factory settings can be restored

Scope of delivery 1x 20mm servo D625MW
1x servo lever HD-LS25 mounted
1x servo lever (disc) HD-OS25
1x servo lever (cross) HD-X25
1x servo lever HD-IM25
1x servo fastening set, screws, eyelets, rubber
1x hexagon socket screw M3x7

Performance Specifications
Operating Voltage Range (Volts DC) - 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) - 0.20 ~ 0.15 ~ 0.13
Maximum Torque Range oz. / in. - 87 ~ 122 ~ 139
Maximum Torque Range kg. / cm. - 6.3 ~ 8.8 ~ 10.0
Current Draw at Idle - 30 mA
No Load Operating Current Draw     500 mA
Stall Current Draw - 2,650 mA
Dead Band Width - 2 µs

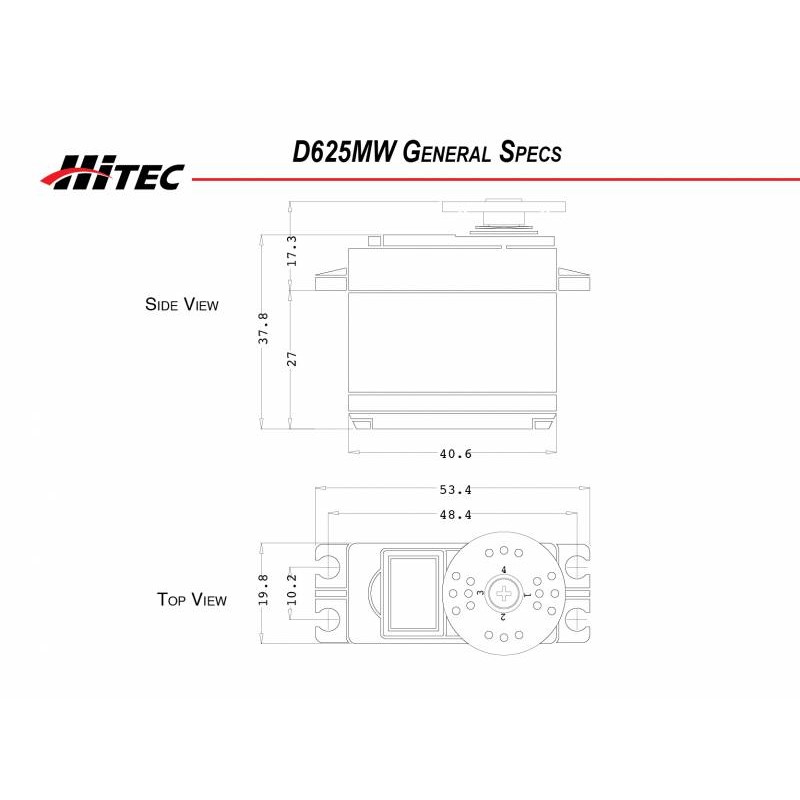

Physical Specifications
Dimensions (Inches) - 1.59 x 0.77 x 1.48
Dimensions (Metric) - 40.6 x 19.8 x 37.8
Weight (Ounces) - 2.11
Weight (Gram) - 57.0
Circuit Type - 32bit Programable Digital
Motor Type - 3 Pole Metal Brush Ferrite
Gear Material - Metal
Bearing Type - Dual Ball Bearing
Output Shaft (type / Ømm) - H25T
Case Material - Plastic
Dust / Water Resistance - N / A
Connector Gauge (AWG) / Strand Count - 22 / 60

Radio Control Applications
Parkflyer - N / A
Sport Plane - 12 - 15 lbs.
Sailplane - 2 meters and up
3D Performance - 12 - 15 lbs.
Scale - 12 - 15 lbs.
Electric Helicopter - 600mm
Gas Helicopter - 50-59 Class
On Road - 1/10th
Monster Truck - 1/10th
Buggies - 1/10th
Truggies - 1/10th
Short Course / Truck - 2 meters and up
Crawlers - N / A
Sail Boat - = >1M & Scale
Power Boat - 1/10th
