Product Description

Small, robust high-performance

servo of the 12-17 mm class Our research department and engineers work tirelessly to develop quality servo technology.

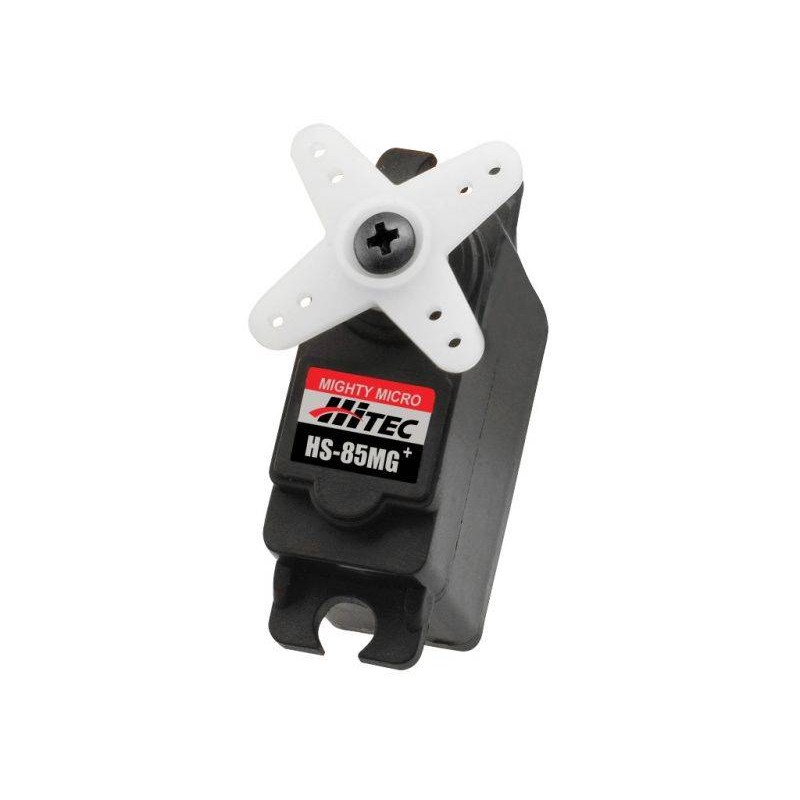

This is particularly true of the HS-85MG analog servo, with its three-pole brush motor, exclusive metal gears and a ball bearing on the output shaft, which is particularly suitable when little play and high positioning precision are important.
The servo HITEC HS-85MG delivers maximum performance with minimum weight and, with this data, is also a favorite for industrial applications. The long service life and the uniquely designed gear make it one of the most reliable and efficient mini servos on the market.

The HS-85MG impresses with its good price-performance ratio.

Features

• High Torque and Precision Centering
• Rugged Metal Gears
• Ball Bearing-Supported Output Shaft
• Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required

Specifications

Operating Voltage Range (Volts DC) - 4.8V ~ 6.0V
Speed (Second @ 60°) - 0.16 ~ 0.14
Maximum Torque Range oz. / in. - 42 ~ 49
Maximum Torque Range kg. / cm. - 3.0 ~ 3.5
Current Draw at Idle - 8 mA
No Load Operating Current Draw - 240 mA
Stall Current Draw - 1,200 mA
Dead Band Width - 8 µs

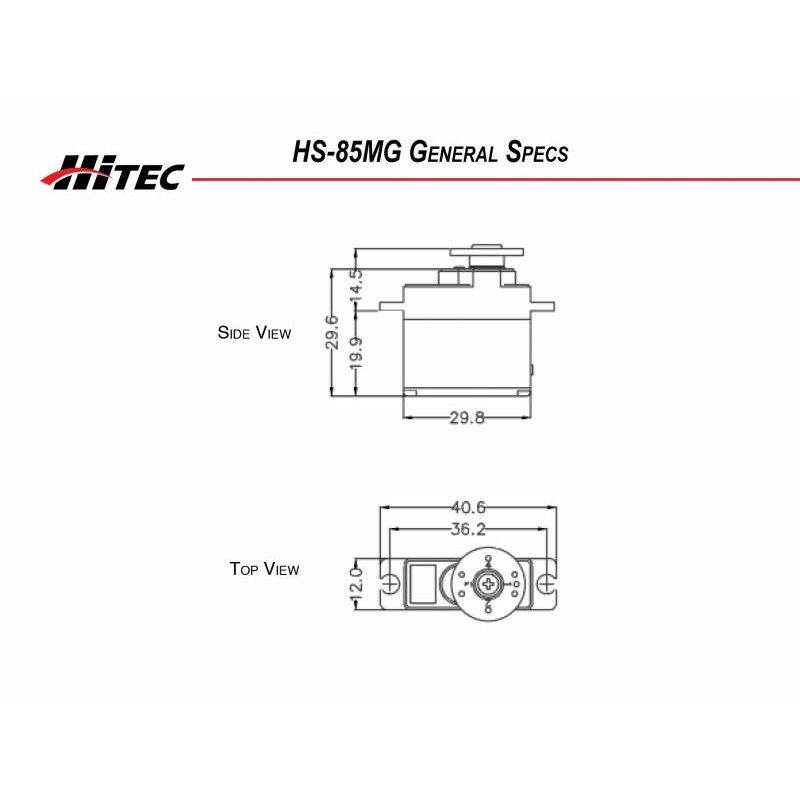

Dimensions (Inches) - 1.14 x 0.51 x 1.18
Dimensions (Metric) - 29.0 x 13.0 x 30.0

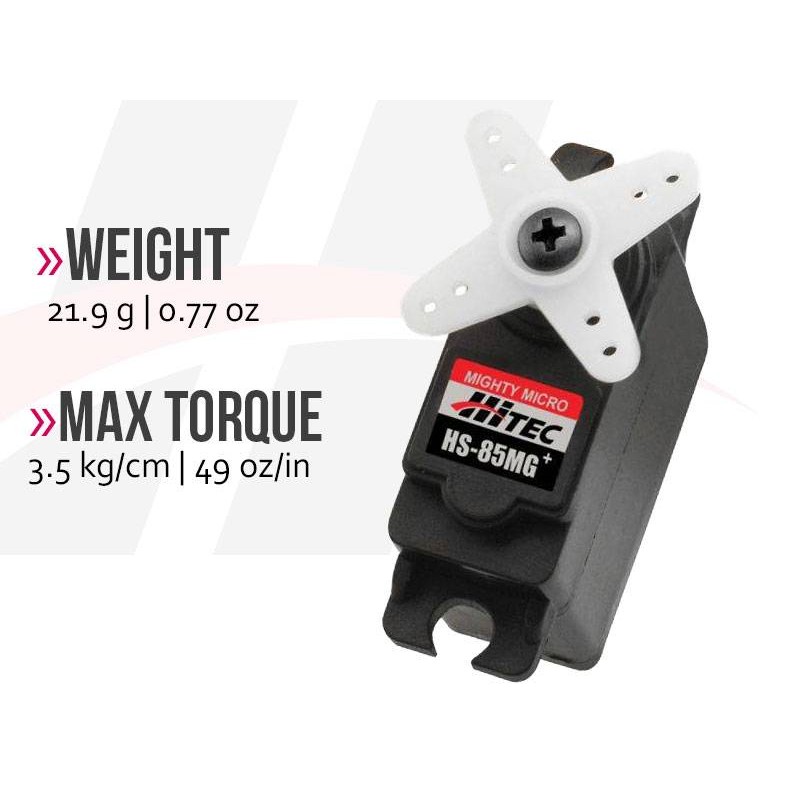

Weight (Ounces) - 0.77
Weight (Gram) - 21.9
Circuit Type - HT7003 Analog SMT
Motor Type - 3 Pole Metal Brush Ferrite
Gear Material - Metal
Bearing Type - Top Ball Bearing
Output Shaft (type / Ømm) - Standard 24
Case Material - Plastic
Dust / Water Resistance - N / A
Connector Gauge (AWG) / Strand Count - 28 / 20
