Product Description

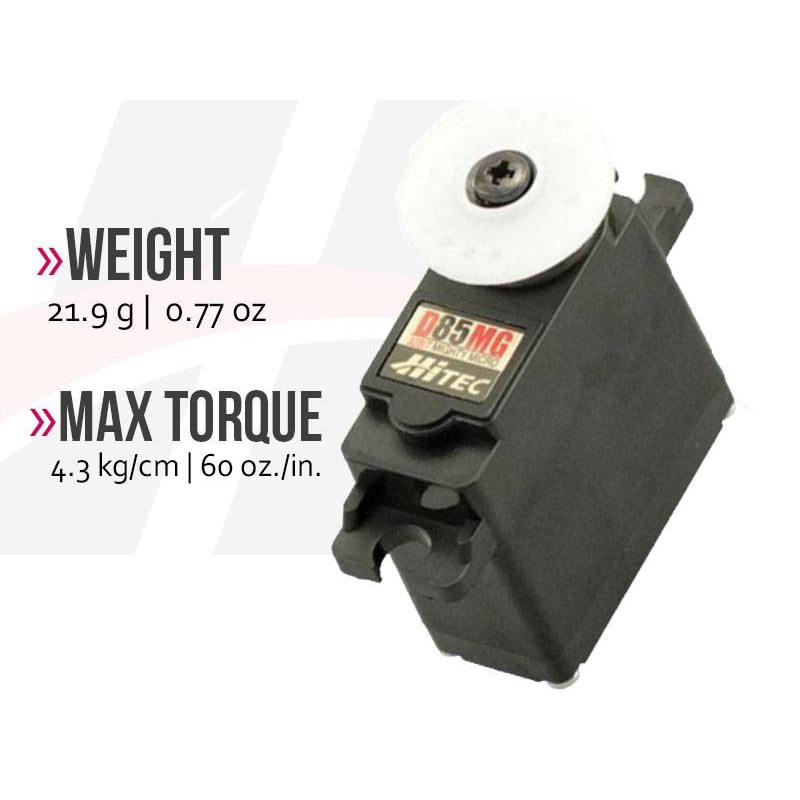

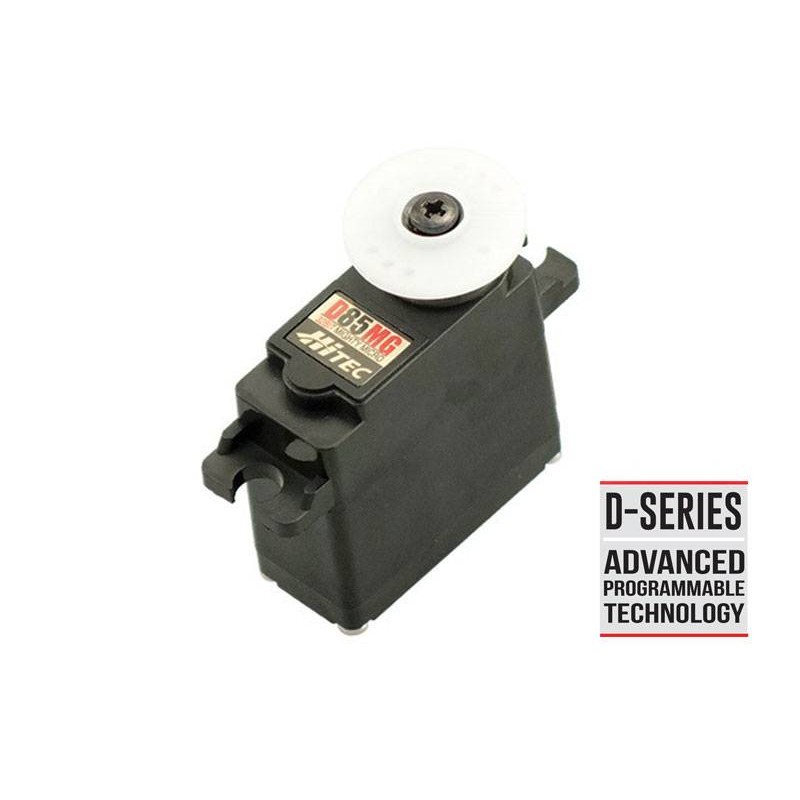

Engineered with our state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the  popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

• Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles (no internal combustion engines, electric only)

D85MG Servo Specifications
Operating Voltage Range (Volts DC) - 4.8V ~ 6.0V
Speed (Second @ 60°) - 0.17 ~ 0.14
Maximum Torque Range oz. / in. - 50 ~ 60
Maximum Torque Range kg. / cm. - 3.6 ~ 4.3
Current Draw at Idle - 3 mA
No Load Operating Current Draw - 290 mA
Stall Current Draw - 2,150 mA
Dead Band Width - 2 µs

Physical Specifications
Dimensions (Inches) - 1.14 x 0.51 x 1.18
Dimensions (Metric) - 29.0 x 13.0 x 30.0
Weight (Ounces) - 0.77
Weight (Gram) - 21.9
Circuit Type - 32bit Programmable Digital
Motor Type - 3 Pole Metal Brush Ferrite
Gear Material - Metal
Bearing Type - Top Ball Bearing
Output Shaft (type / Ømm) - Standard 24
Case Material - Plastic
Dust / Water Resistance - N / A
Connector Gauge (AWG) / Strand Count - 28 / 20

Radio Control Applications
Parkflyer - < 50 oz.
Sport Plane - 42 - 50 oz.
Sailplane - < 2 meters / DLG
3D Performance - N / A
Scale - N / A
Electric Helicopter - N / A
Gas Helicopter - N / A
On Road - 1/16th
Monster Truck - N / A
Buggies - 1/16th
Truggies - N / A
Short Course / Truck - 1/16th
Crawlers - N / A
Sail Boat - N / A
Power Boat - 1/16th
