> >>Hobbywing Flyfun BL ESC 80A 3-6S LiPo BEC V5 Speed Control

Manufacturers

Hobbywing Flyfun BL ESC 80A 3-6S LiPo BEC V5 Speed Control View larger
Previous Next

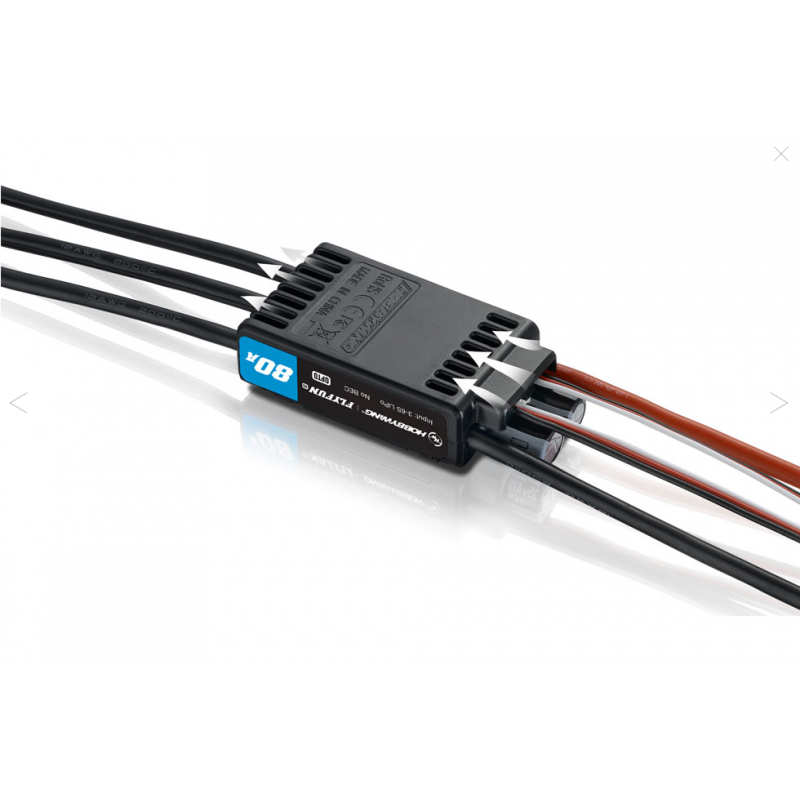

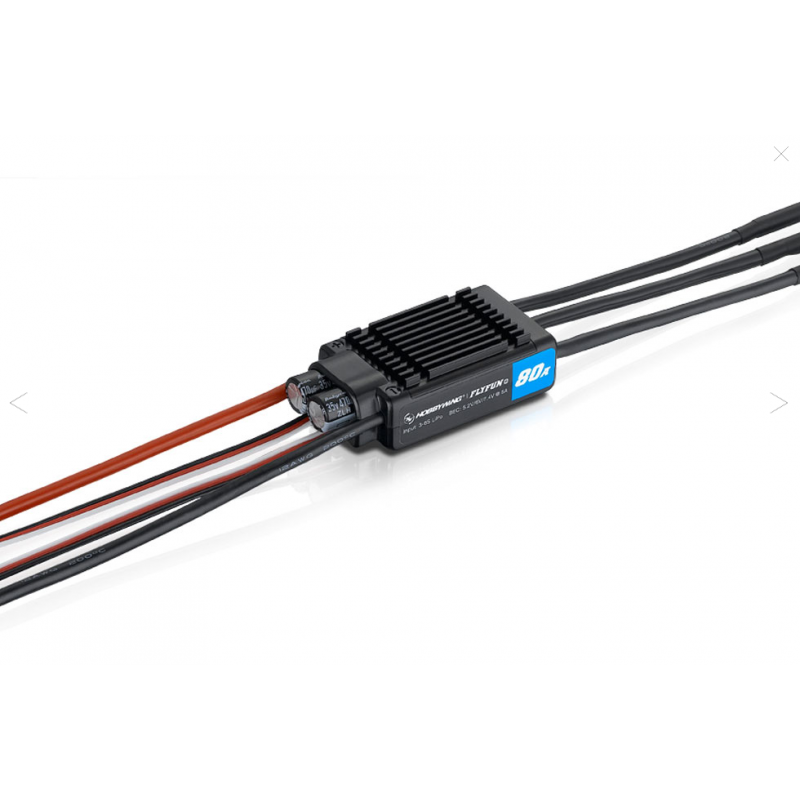

Hobbywing Flyfun BL ESC 80A 3-6S LiPo BEC V5 Speed Control

HW30214201

New product

By order (5 - 6 working days)

78,90 € tax incl.

Add to wishlist

More info

DEO Technology / Active Freewheeling

The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:

•    Rapider and smoother throttle response, better stability and flexibility during flight.
•    Higher driving efficiency, longer flight time.
•    Lower ESC temperature, more reliable operation.

Soft Start-ups & Reverse Brake:

New soft start-up modes are applicable to regular propeller aircraft and™ EDF aircraft with different sizes. With Reverse Brake mode enabled whenH landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short distance, the FLYFUN 130A/160A-HV-OPTO-V5 doesn't have this function). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.

(Warning! This is Hobbywing's registered patented)

High-power BEC

High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.

Multiple Protections

Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

New Design & Great Performance

New design brings exquisite look and good heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.

Specifications

Cont./Peak Current: 80A / 100A
Cells: 3s - 6s
BEC Voltage: 5.2V / 6V / 7.4V
BEC Output: 8A / 20A
Cable/Cable length: 12AWG / 150mm
Plug Battery/Motor: ohne / 3.5mm Plug
Dimensions: 69.8x34.6x19.2mm
Weight: 92g
