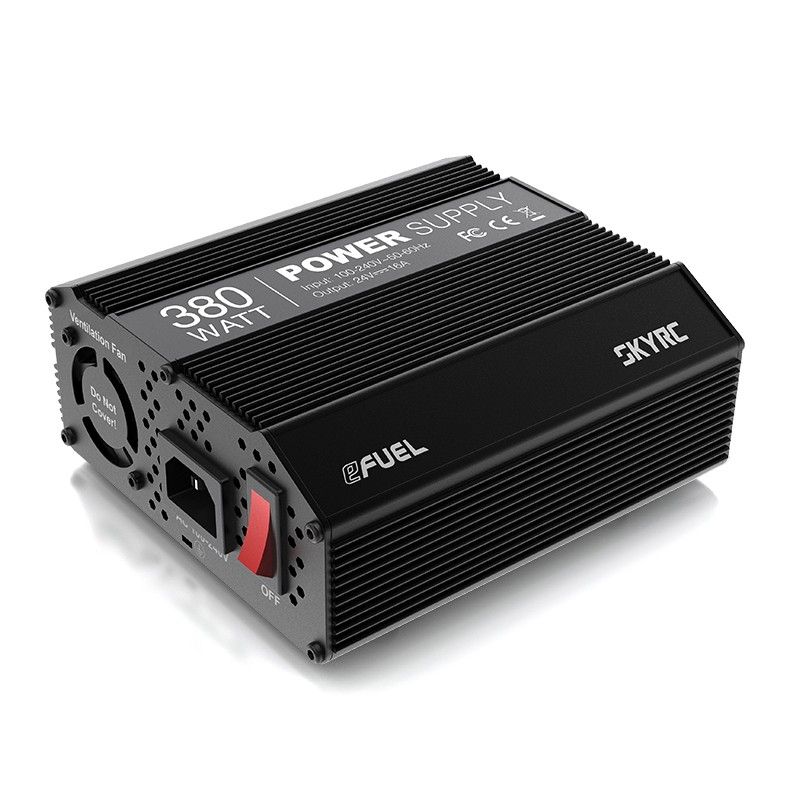

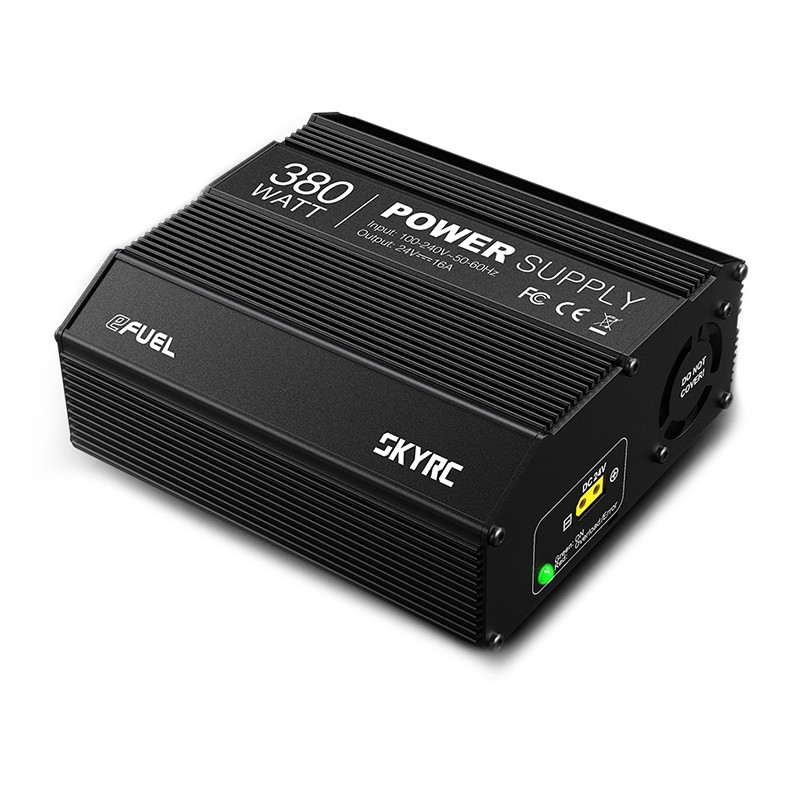

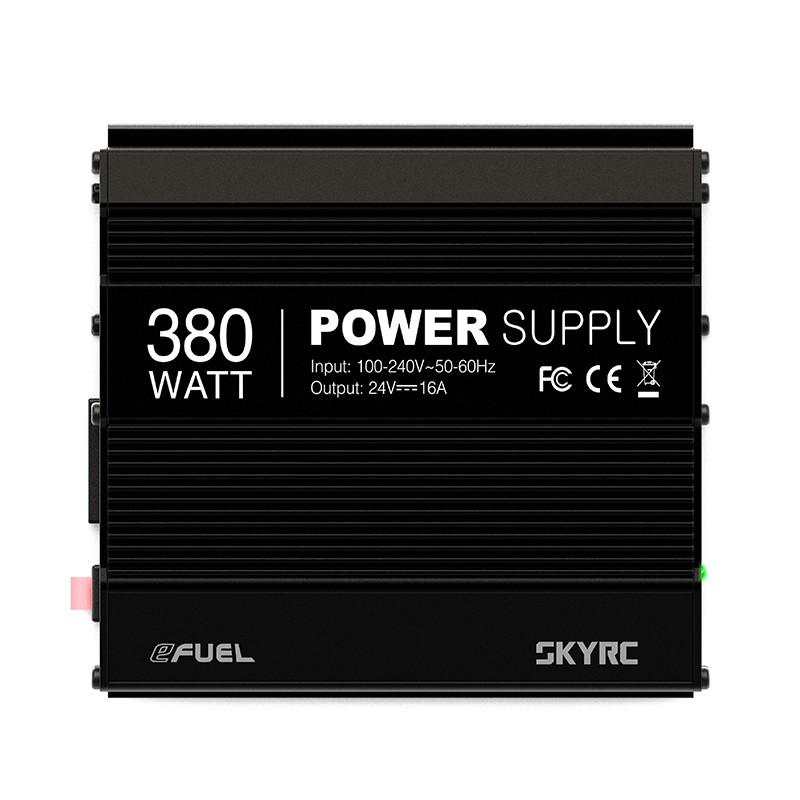

SKY RC Power Supply 380W

SK-200023

New product

In stock

99,80 € tax incl.

Add to wishlist

More info

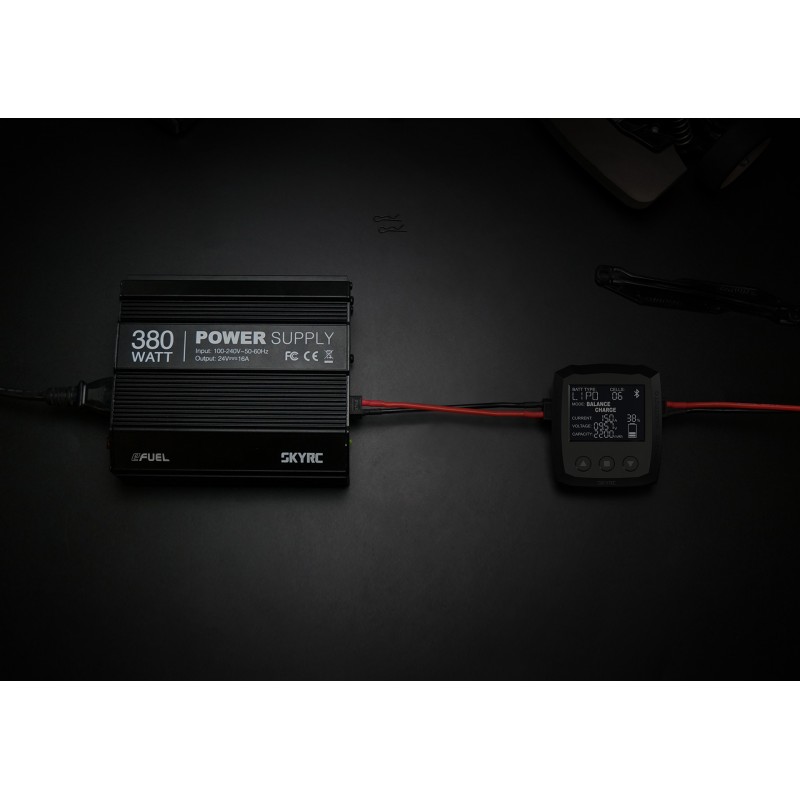

Built for most demanding pocket charger

Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.

Safer and Reliable

Active PFC

Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.

Universal Operation,Worldwide Safe

AC 100-240V AC Power input; No need any voltage converter.

Intelligent Air Cooling System

Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.

Overload/Error Indication

The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.

Specifications

POWER SUPPLY 380W- Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.

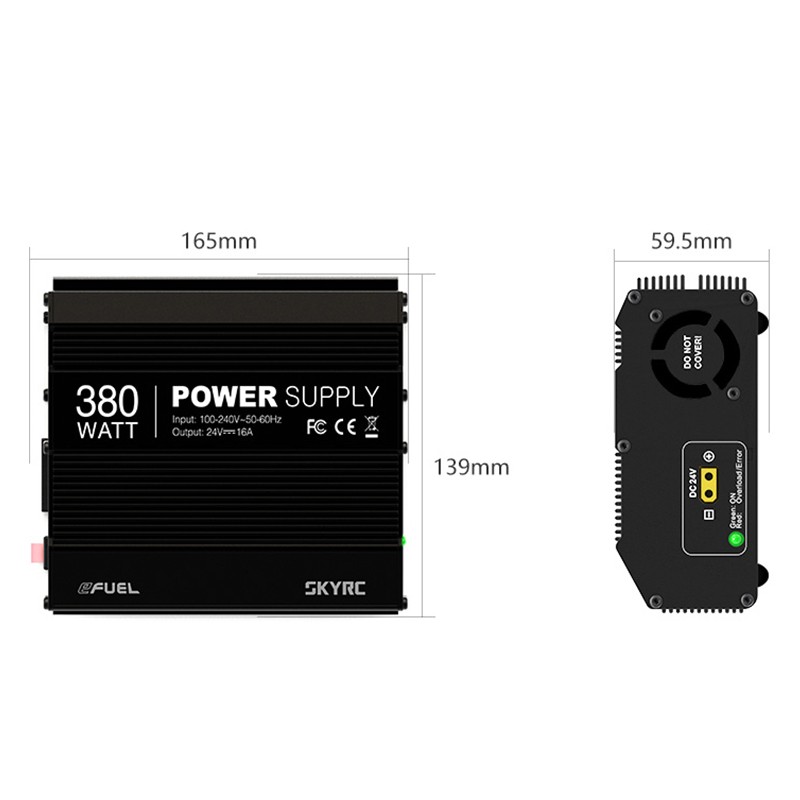

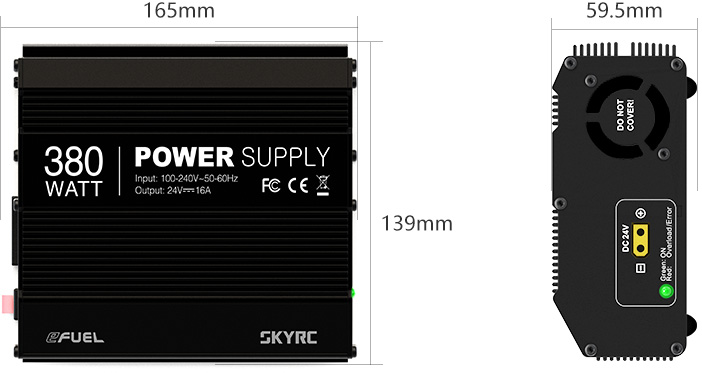

Size and Weight

Power Supply

Voltage?100-240V
Input AC Frequency?50-60Hz
Output Current?16A
Output Voltage?24V DC±0.5V
Output Voltage Ripple?<300mV
Power Efficiency?88%
Power Factor?>0.98

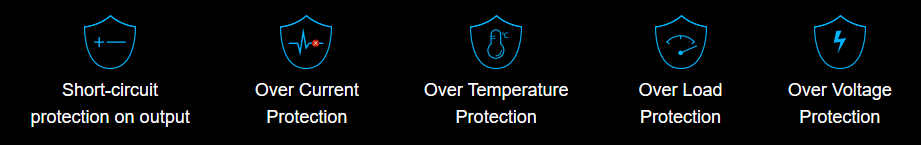

Protection

Current Overload Protection?17A ±1A
Over Temperature Protection?<80?
Cooling Method?Cooling Fan

Working

Operating Temperature?0-40?
Operating Humidity?0-90%
