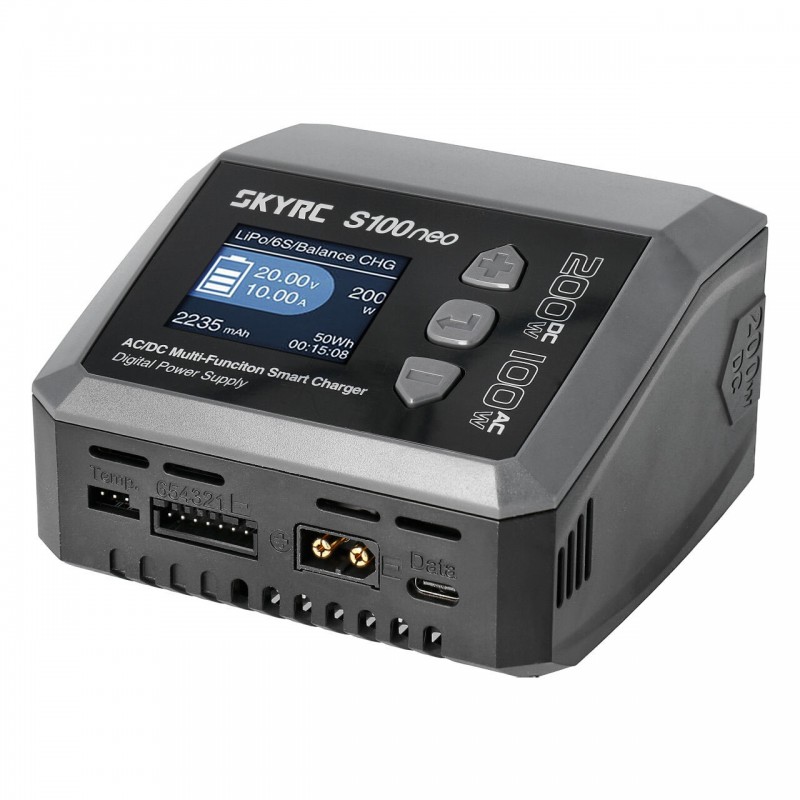

The S100neo captivates with its stylish and ultra-compact design, offering a maximum power of 200W for various battery chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) as a smart AC/DC charger. Additionally, it can be used as a power supply device. The adjustable voltage reaches up to 30V, and the current can go up to 12A.

Building on the beloved e680 charger, the S100neo presents itself with an impressive power capacity while being able to make the best of its versatility and powerful charging capabilities. But the S100neo is more than just a simple charger; it also functions as an advanced digital power supply, offering precise and efficient charging with unparalleled accuracy in both Constant Current (CC) and Constant Voltage (CV) modes. Furthermore, it allows voltage measurement without the need for an active power supply, significantly simplifying the evaluation of battery voltage. All while the vibrant color LCD screen is enhancing the user experience through intuitive navigation and easy monitoring.

Features:

• Efficient successor to the well-known e680 charger
• 2 inputs, 1 output
• Max. 100W AC charging power
• Max. 200W DC charging power
• Time-saving charging with up to 12A
• Easy to use 3 button controls
• Lightweight and compact
• With PD/QC3.0 fast charging
• Compatible with Charger Master

Technical Specifications:

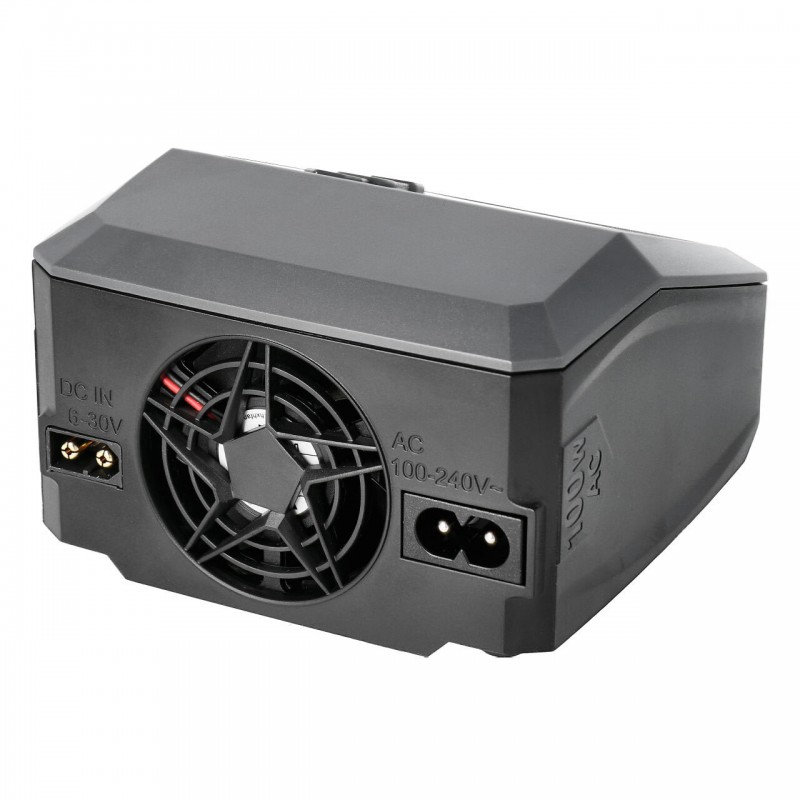

Input Voltage:
- AC: 100-240V (50-60Hz)
- DC: 6-30V
Charge Power DC: max. 200W (+- 10%)
Charge Power AC: max. 100W (+- 10%)
Discharge Power: 5W (Hauptanschluss) (+- 10%) max. 20W (Balance Port, LiPo/6S)
Charge Current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb: 0.1A~0.5A (±0.1A) | 0.6A~12A (+-10%)
Discharge Current: LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb: 0.1A-0.2A (±0.1A) | 0.3A-2A (+-10%)
Balance Current: max. 1.0A
Trickle Charge Current:    50 ~ 300mA & OFF Standard: 60mA
Battery Types: LiXX: 1-6S
NiXX: 1-15S
Pb: 3S / 6S / 12S
Weight:    340g
Dimensions: 105x105x62mm

DC Power Supply
Voltage: 2V ~ 30V
Current:
- 0.1A ~ 10A (Voltage 2V ~ 2.9V)
- 0.1A ~ 12A (Voltage 3V ~ 30V)
Over Current Protection:
- 0.1A (+- 0.1A)
- 0.2A ~ 4A (+- 20%)
- 4.1A ~ 10A (+- 10%)
- 10.1A ~ 12A (+- 5%)
Power: AC Input: max. 100W
DC Input: max. 200W

DC Motor Run-in
Voltage: 3-12V
Current: 1-5A
Direction: Forward
Time: 1-60min
Protections:
- Motor Stall Protection
- Over Current Protection
- Overload Protection

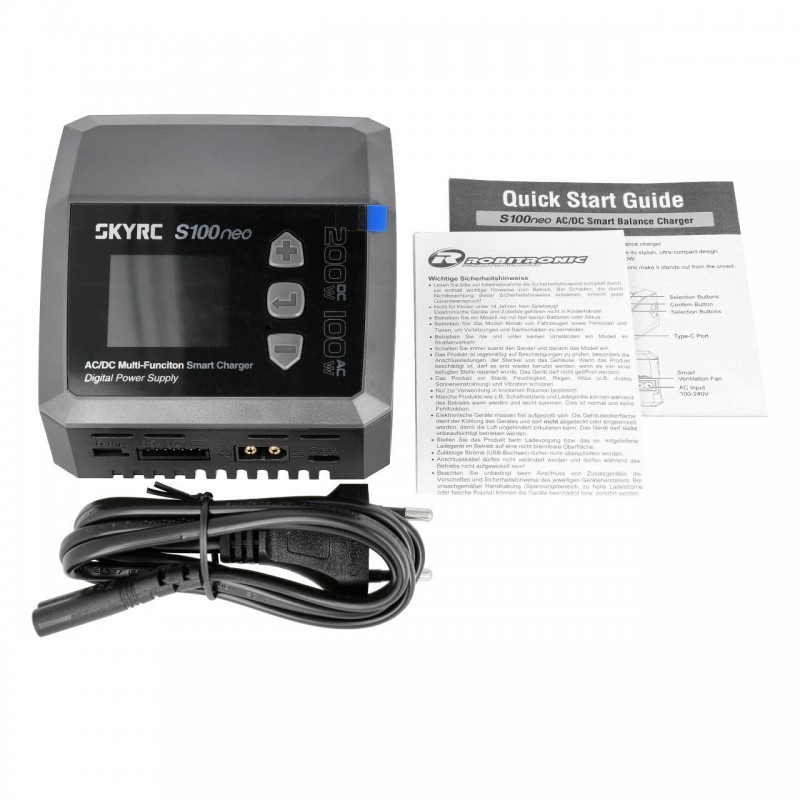

Delivery:

1x SKYRC S100neo Charger
1x Manual
