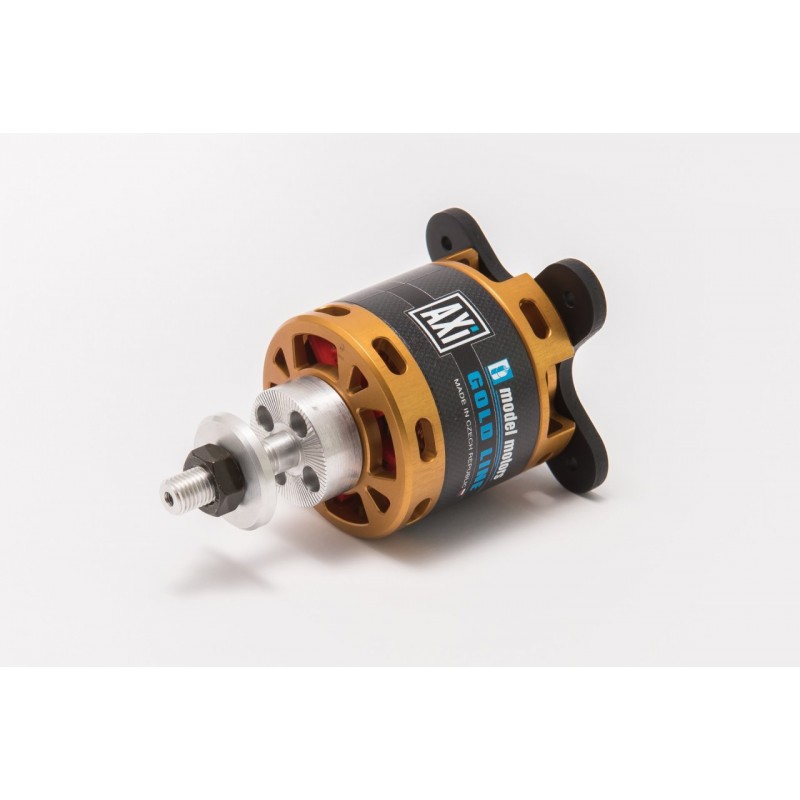

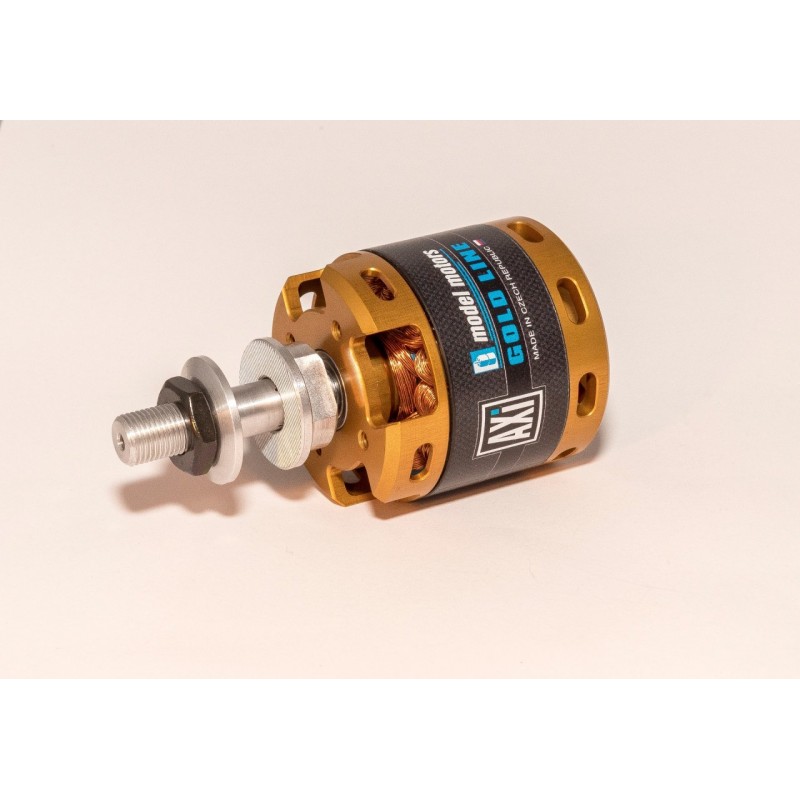

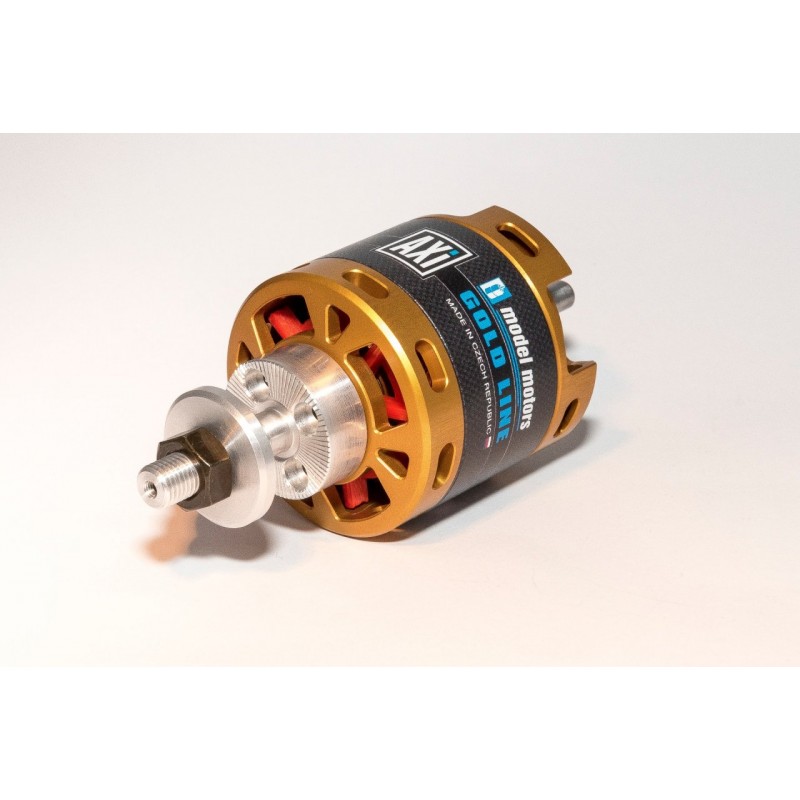

Axi Motors Brushless 4120/18 Gold Line V2

AXI4120-18V2

New product

By order (5 - 6 working days)

138,00 € tax incl.

Add to wishlist

Data sheet

Motor Type Brushless

More info

Product description

These brushless motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials. The hardened steel shaft supported by three ball bearings, and overall robust yet lightweight construction, ensure a long service life.

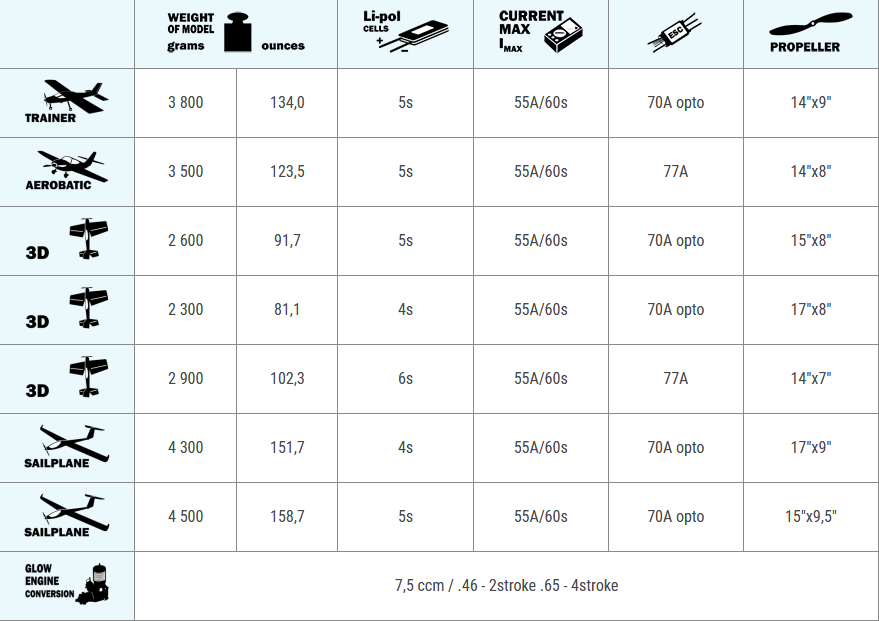

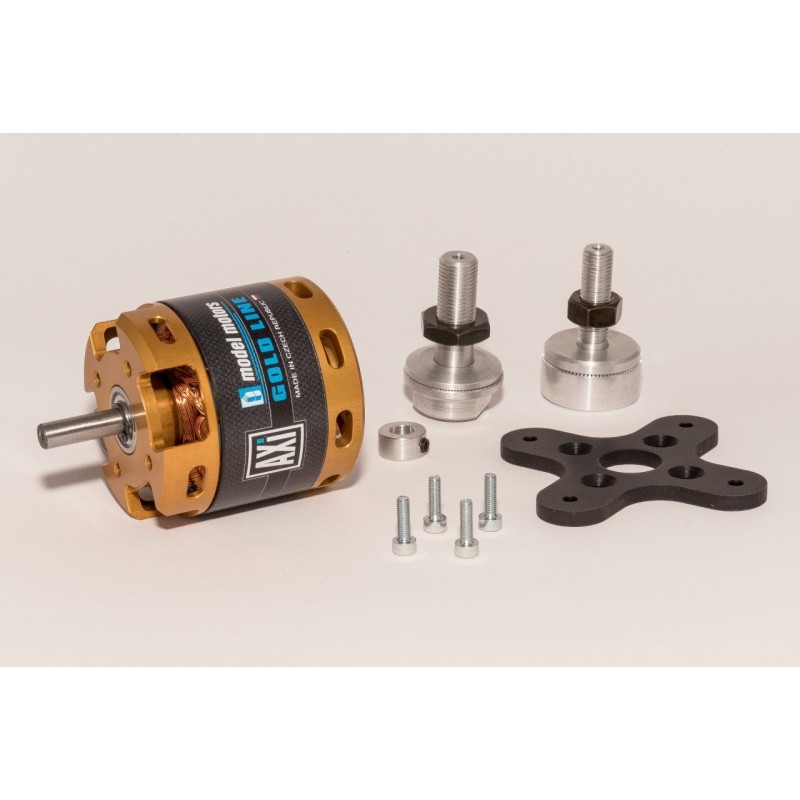

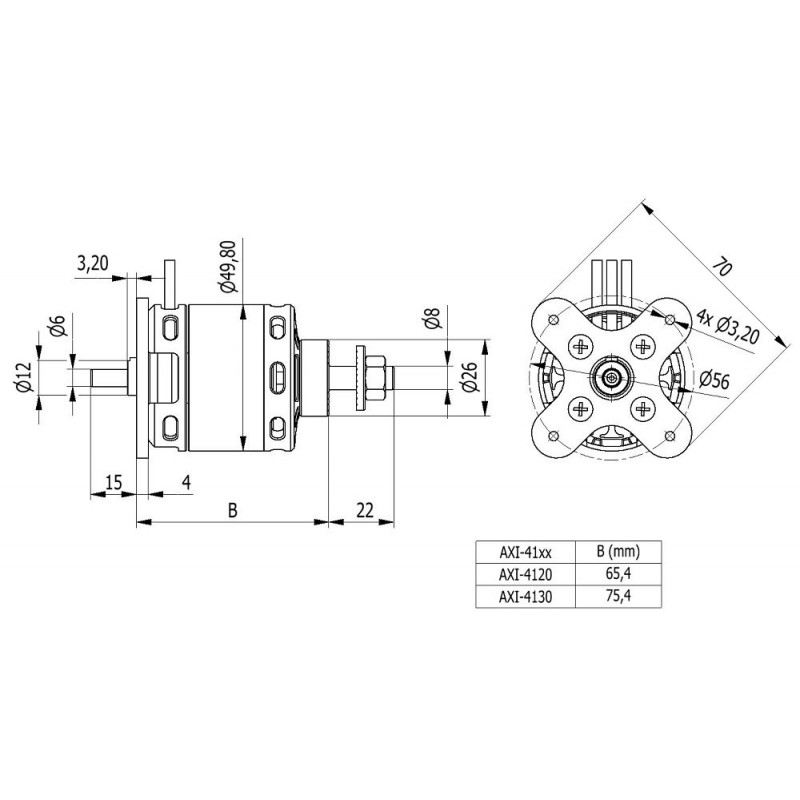

A new feature in the AXI design is a provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws. The unique design of these motors gives extremely high torque levels to turn large diameter and high pitch propellers with a high level of efficiency. This motor is suitable for large sailplanes weighing up to 5000g and sports aerobatic models up to 3500g.

Best Practices

Technical specification

No. of cells: 5-7s Li-Poly
RPM/V: 515 RMP/V
Max. efficiency: 89%
Max. efficiency current: 15 - 40 A (>82%)
No load current: 1,3 A
Current capacity: 59 A/60 s
Internal Resistance: 21 mohm

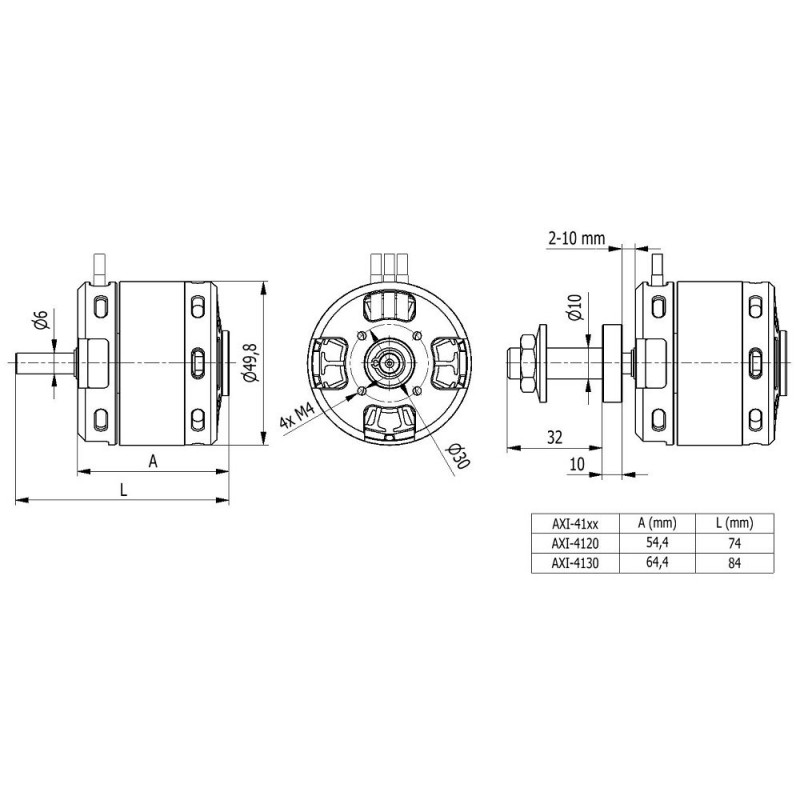

Dimensions (? x L): 49,8x54,4 mm
Shaft diameter: 6 mm
Weight: 315 g
Max. Power: 1500 W
