New Graupner receiver GR-12L HoTT 2.4 GHz Lose View larger

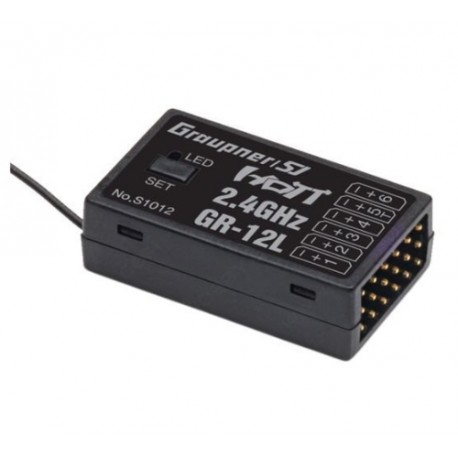

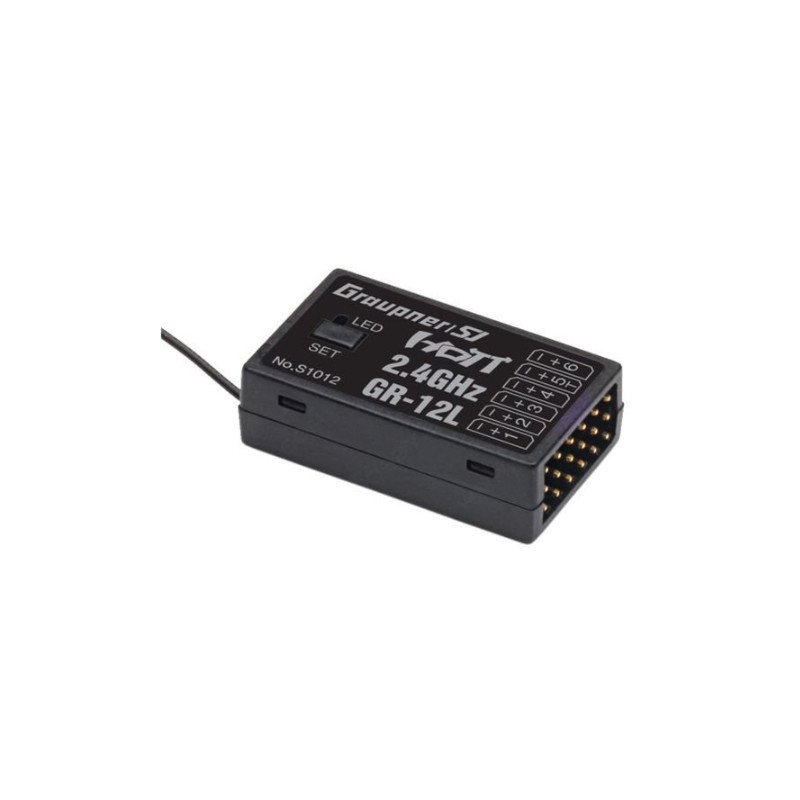

Graupner Receiver GR-12L HoTT 2.4 GHz

GRS1012

New product

Backorder (5 - 6 working days)

45,20 €

Add to wishlist

Data sheet

Frequency 2,4 Ghz
Channels 5 - 10

More info

Our most affordable 2.4GHz full range receiver with built-in telemetry, the Graupner GR-12L 6 Channel receiver is small sized and lightweight, lending itself very well for small park flyers, lightweight hand launch sailplanes, helicopters and multirotors. The ultra-low voltage requirements of the GR-12L allows it to operate on a single-cell LiPo making ideal for DLG gliders.

The GR-12L provides real-time bi-directional data transmission of critical system health datalike temperatures, receiver voltage and signal strength using the Graupner HoTT protocol providing you with telemetry information you need for a safe and secure flight.

FEATURES
“ Up to 75 channel hopping for extreme operating reliability and immunity to external interference
“ Compact and lightweight
“ Front load servo connections for easier installation in small airframes
“ Digital SUMD, SBUS signal output providing connectivity to other vendors flight controllers
“ Selectable frame rate of 10ms or 20ms for digital or analog servos
“ Fail Safe and Hold function
“ Low power consumption
“ Wide voltage ranges from 3.6V to 8.4V
“ Built-in telemetry for temperatures, receiver voltage and receiver strength monitoring

INCLUDES
GR-12L Receiver
Manual

Specifications
“ Channel: 6 channels
“ Frequency: 2400 to 2483.5 MHz
“ Modulation: 2.4GHz FHSS
“ Temperature Range: 5 to 158° / F-15 to 70° C
“ Operating Voltage: 3.6 to 8.4V
“ Current Consumption: 70.0 mA
“ Antenna: 5.93 in 150 mm
“ Range (approx.): 6561 ft (1.24 mi)2000 m
“ Amplifier: O
“ Size: 1.42 x 0.83 x 0.39 in 36 x 21 x 10 mm
“ Weight Approx.: 0.25 oz 7 g

Technical data
Channels: 6
L/W/H (mm): 36/21/10
Weight (g): 7
