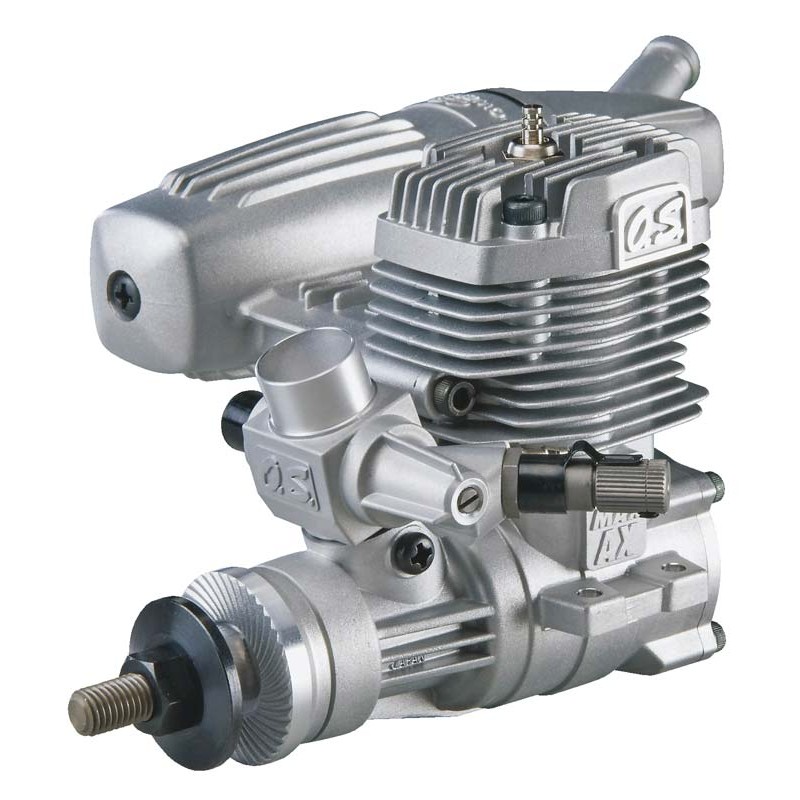

> >>O.S. MAX 35AX ABL .35 Airplane Glow Engine w/Muffler

Manufacturers

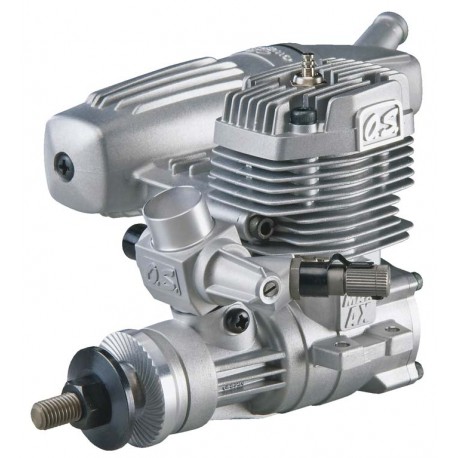

O.S. MAX 35AX ABL .35 Airplane Glow Engine w/Muffler View larger

O.S. MAX 35AX ABL .35 Airplane Glow Engine w/Muffler

OS13100

New product

By order (6 - 8 working days)

189,70 € tax incl.

Add to wishlist

More info

Big power in a small AX engine!

All of the features that make AX Series the choice of more and more modelers: Distinctive 5-sided heat sink head design for better cooling, diagonally-mounted needle that makes adjustments much safer, and dual-layer durability of ABL (Advanced Bimetallic Liner) construction.
  • Produces exceptional output for popular-sized planes.
  • The same mounting dimensions as the 32SX and 25FX engines.
  • The included E-3080 muffler effectively dampens noise and is fully positionable.

This is the O.S. .35AX ABL Model Airplane Engine with E-3080 Muffler. Ideally suited to a variety of RC aircraft including trainer, sport types.

Description
Same mounting dimensions as the O.S. .32SX and .25FX Weighs only 0.35oz (10g) more than the .32SX
Advanced Bi-Metallic Liner. This process uses a double layer of plating material rather than one thick layer. This helps the metal to bond to the cylinder and is more durable. Also, the plating process is more consistent, resulting in a more precise fit between
piston and sleeve for better compression, longer life.
Newly designed E-3080 Power Box muffler generates mild and pleasant sound and is constructed with an O-ring between the front and rear body to prevent oil leaking and is fully positionable 21K carburetor with needle valve angled toward rear of engine for safer adjustments
Ball bearing-supported crankshaft

Specification

Displacement: 0.352 cu in (5.77cc)
Bore: 0.795 (20.2mm)
Stroke: 0.709 (18.0mm)
Practical RPM: 2,500-17,000
Output: 0.9PS 11,000 RPM
Weight: 12.8oz (363g) with muffler
Recommended Propellers: 10x6, 10x7, 11x6, 12x6 (10x6 for break-in)
Crankshaft Size: 14-28
Distance from center of engine to drive hub: 2.1 (53mm)
Distance from center of engine to end of crankshaft: 3.1 (77mm)
Distancecrankshaft center to muffler exhaust outlet: 3.8 (96.2mm)
Height from crankcase bottom to top of cylinder head: 3.02 (76.9mm)
Heightmounting tab to top of cylinder head: 2.4 (61.5mm)
Width including mounting tabs: 1.8 (45mm)
Crankcase width below mounting tabs: 1.2 (30.6mm)
Width between mounting holes same side: 0.59 (15mm)
Width between mounting holes opposite side: 1.5 (38mm)
Diameter of muffler body: 1.2 (32mm)
Needle Settings: High Speed: 2 turns out from fully closed
Low Speed: Flush with carb body then 12 turn in

Requirements

Fuel containing 5-20 nitromethane with at least 16 lubricant

Includes

One O.S. Max .35AX ABL BB model airplane engine with muffler, 8 glow plug, two 3x28mm cap head muffler screws, needle valve extension cable, warranty sheet, decal sheet and illustrated instruction manual
