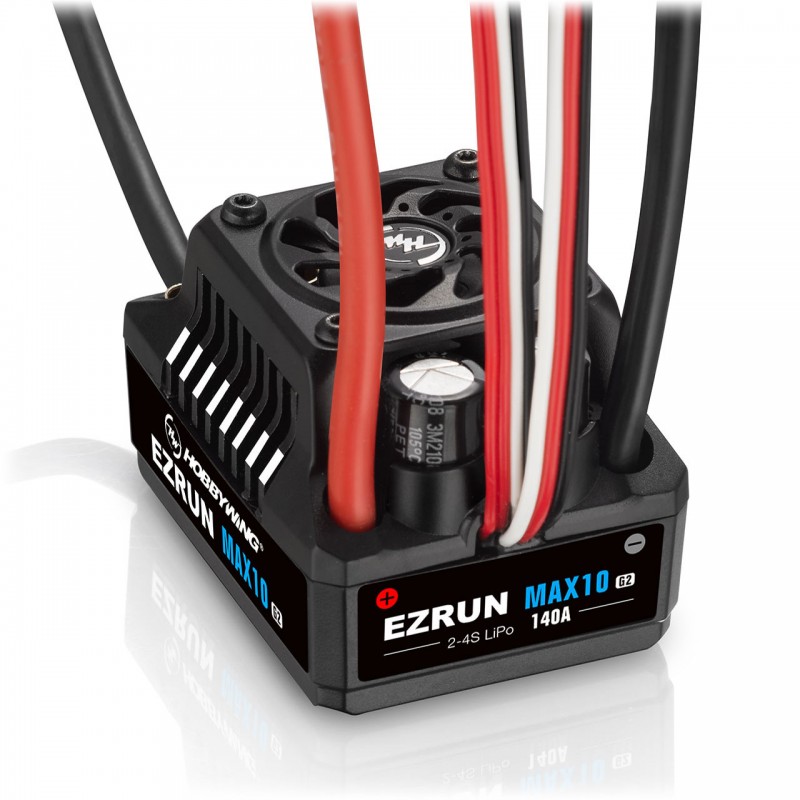

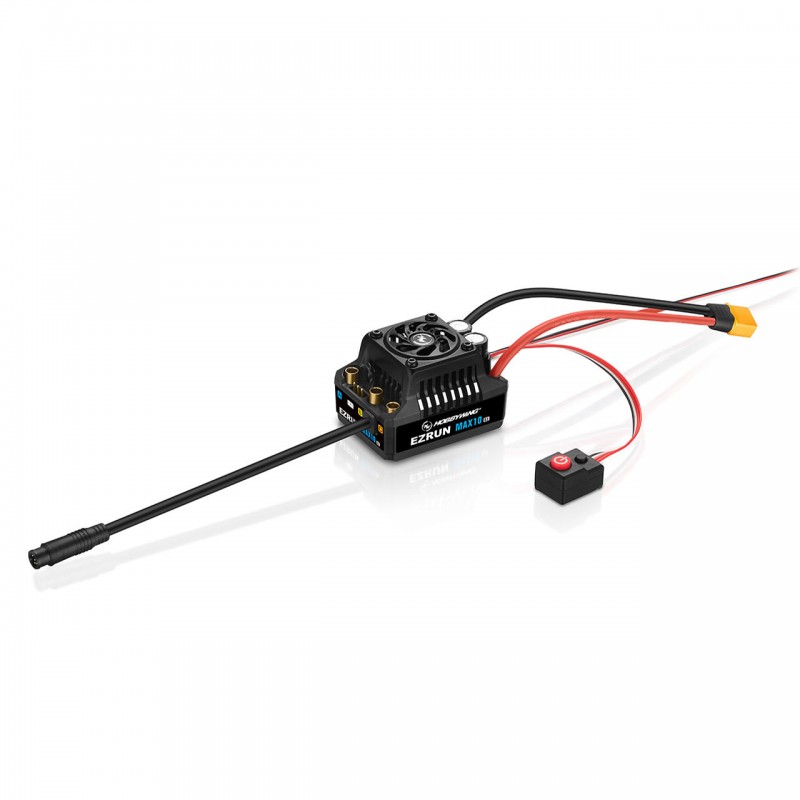

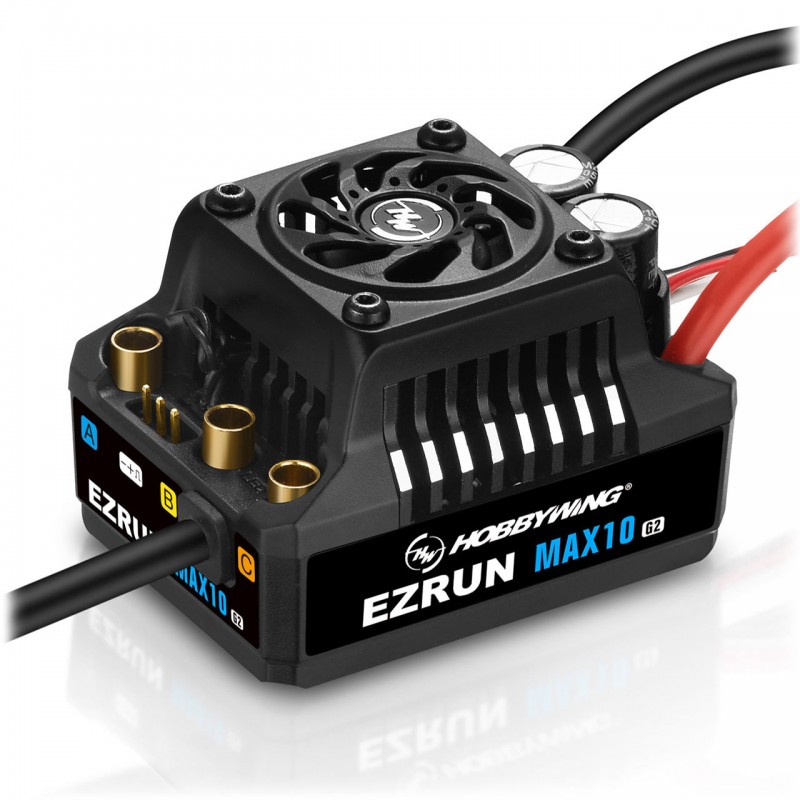

The second generation of the Ezrun Max10 ESCs with 140A brings with it a variety of innovations and optimizations that make driving 1/10 short courses and trucks even more enjoyable. For example, the improved sensor mode with accompanying waterproof cable provides great throttle response - especially when paired with an Ezrun 3652/3665 G3 motor. Compared with the previous generation, MAX10 G2 also has stronger power and more stable output power. At the same time, of course, this brings excellent linearity even at low speeds.

In terms of heat development, no other ESC can beat the MAX10 G2 so quickly. Thanks to an innovative protection system, the capacity of the capacitors has also been increased by 74% and are at the same time protected against overheating. Ultimately, this ensures better power transmission from the battery to the controller and overcharging is less likely than before.

Features

• Great flexibility & versatility
• New sensor cable design to protect against water and dust
• Suitable for all weather conditions
• Built-in Super BEC

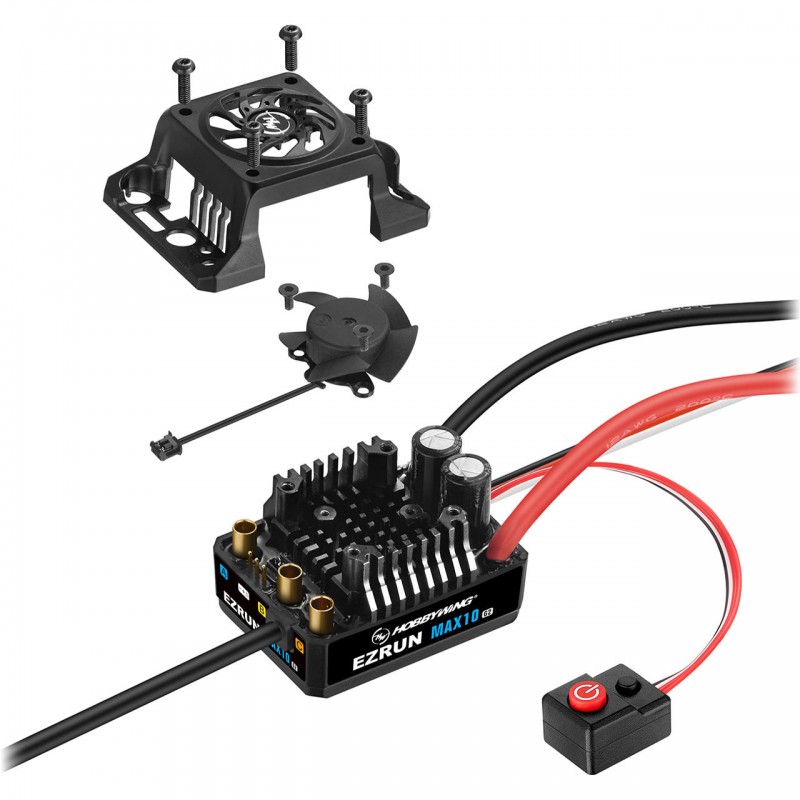

• Frameless smart fan
• Real-time data & data recording possible
• Includes turbo timing setting
• Multiple protection features
  • Low voltage
  • Overheating
  • Loss of signal
  • and more

Technical Specifications

Type:    1/10 Brushless Sensored
Current (cont./peak):    140A / 880A
Input Voltage:    2-4S LiPo
BEC:    6V/7.4V, 5A
Motor Types:    Brushless Motors (with/without sensor)
Motor Limits:    3S LiPo: KV<=4000 - 3665er Motor
4S LiPo: KV<=2600 - 4268er Motor
Fan:    Yes, powered by BEC
Fan Size:    30x30x10mm
Programming:    LED Program Box
LCD Program Box (G2)
OTA Program Module
Seperate Programming Port
Waterproof:    Yes
Input:    XT60
Output:    4.00mm Gold (female)
Dimensions:    53x39.5x37.2mm
Weight:    120g
Application:    1/10 Short Course Truck, Truck and Monster Truck

Delivery

    MAX10 G2 140A ESC

Optional Accessories

    HW30501003 LED Program Card
    HW30502001 LCD G2 Program Box
    HW30850400 OTA Program Module
