This switching module is particularly suitable for switching special functions on and off, such as water pumps for extinguishing monitors or other consumers that are switched individually. Any free proportional channel, switch or button can be used as a transmitter on the transmitter.

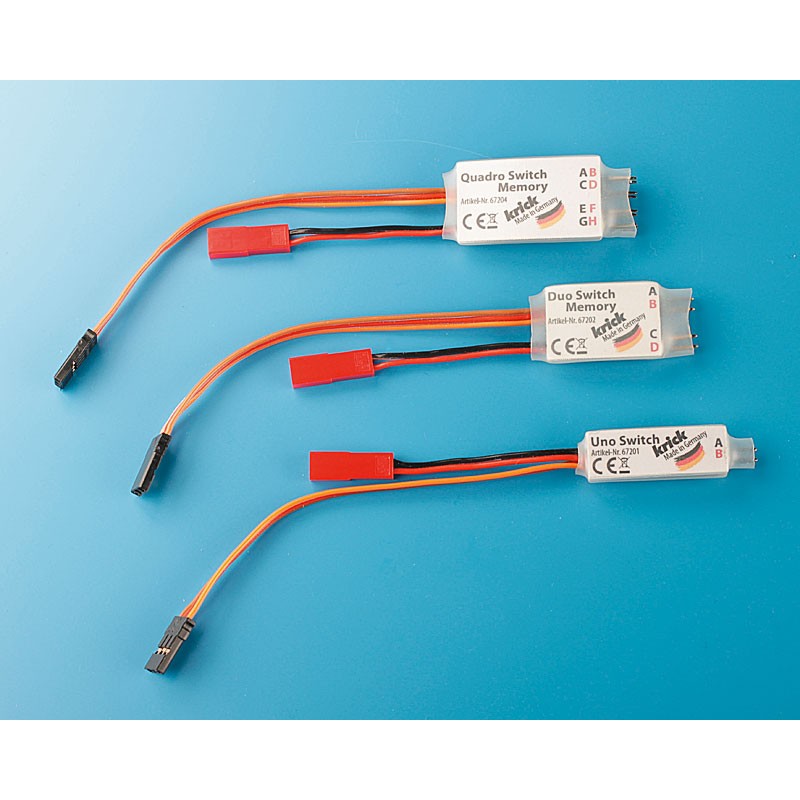

The switching module is plugged directly into a receiver output. This means that every free channel on the transmitter can be used to switch consumers in the model. All variants are wired ready for installation - just connect a power source up to a maximum of 30 V and the loads to be switched. The series begins with the Uno Switch and a switching function, through the Duo Switch with two outputs to the Quadro Switch with 4 separately switchable loads on one remote control channel. The duo and quadro switch versions are equipped with a memory function. This means that the consumer switches on the consumer with a single actuation of the prop channel or switch on the transmitter and is supplied with power until another actuation of the stick / switch switches the function off again.

The new series of electronic switching modules is completely manufactured in Germany.

Technical specifications

Switching functions 1
Switching current max. 5A
Switching voltage max. 30V
Operating voltage 4.8 - 9V
Dimensions approx. 12x40 mm
Weight 5g
