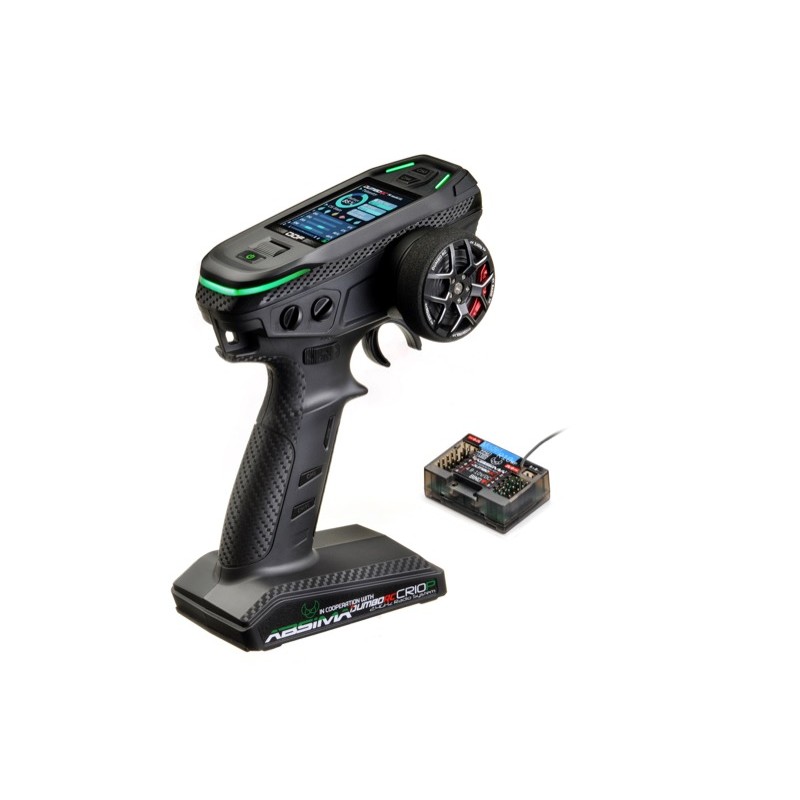

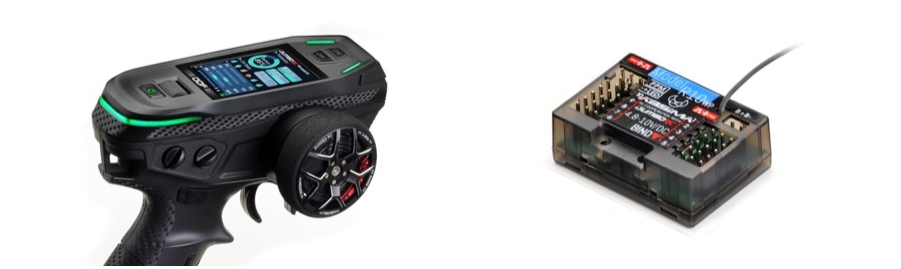

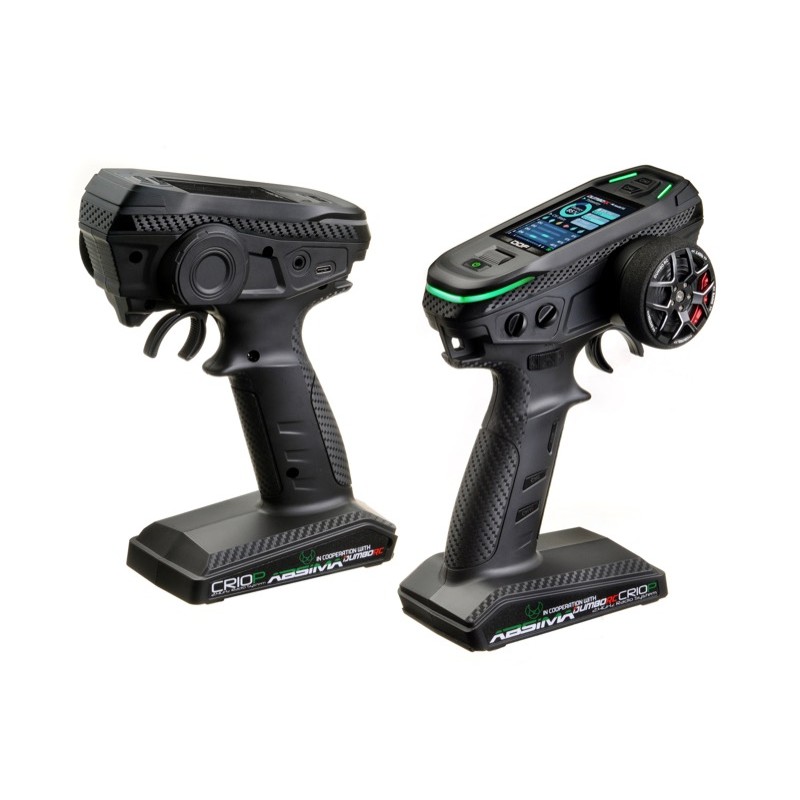

This 10-channel remote control set consists of a transmitter and a waterproof receiver and uses the latest 2.4 GHz frequency communication technology. The system is ideal for crawlers, on-road cars, off-road cars, drift cars and boats.

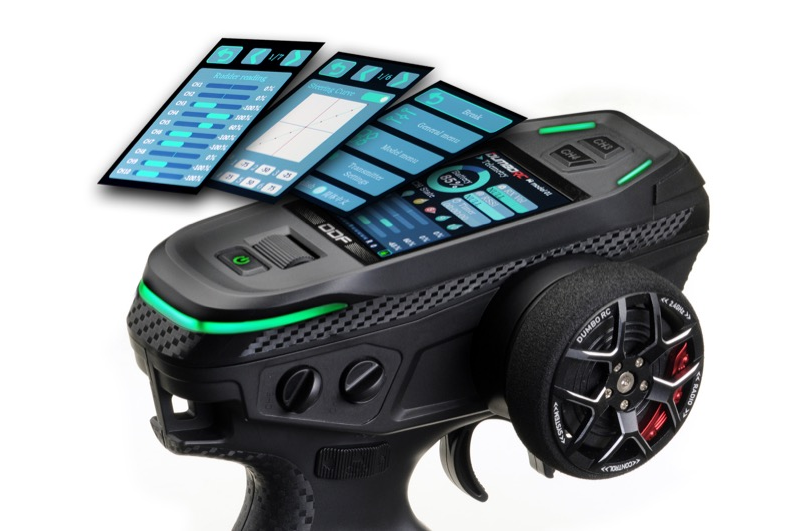

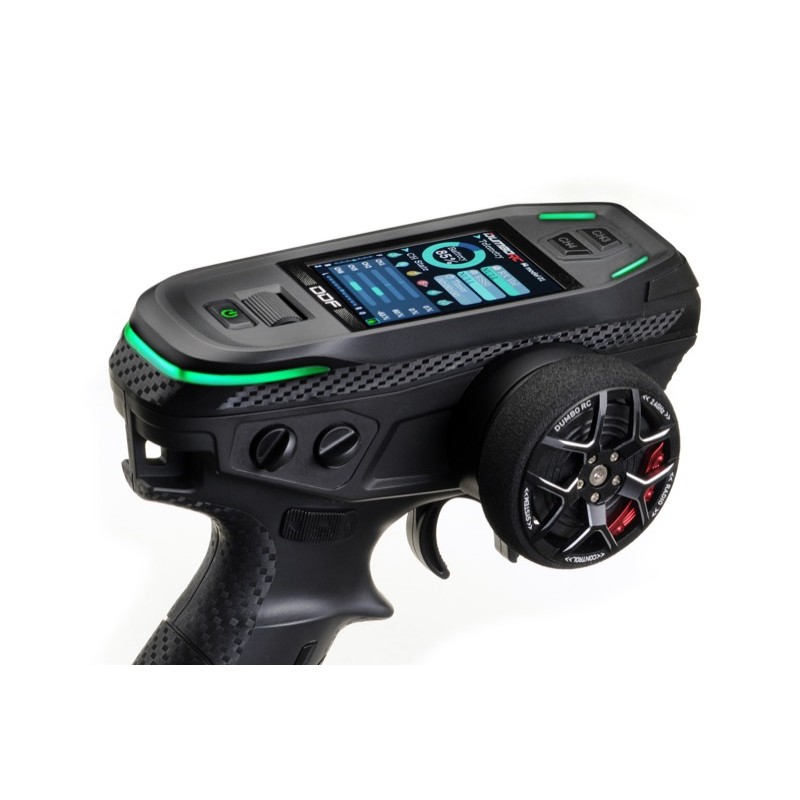

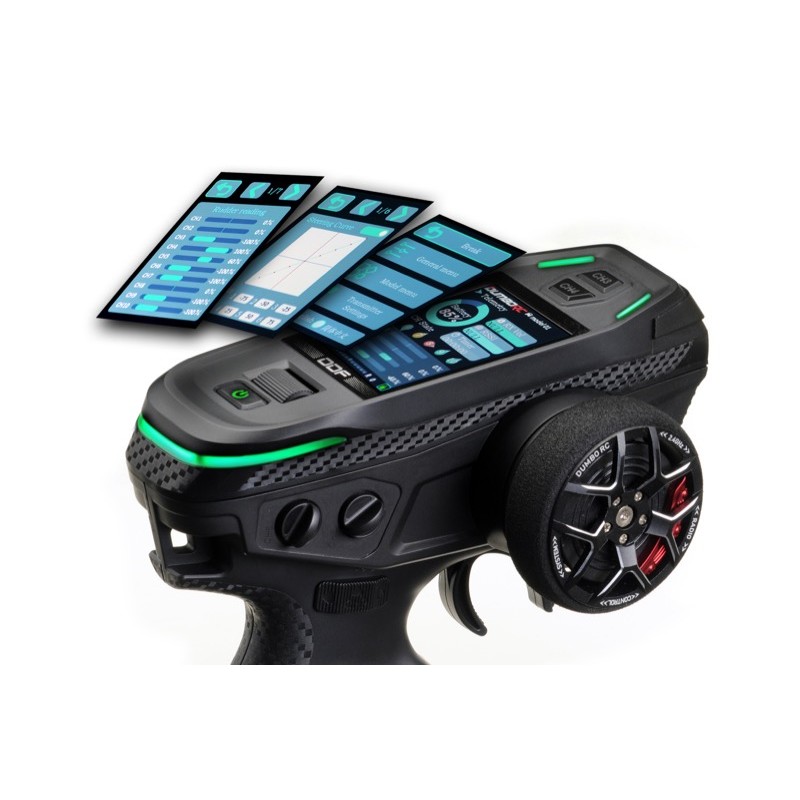

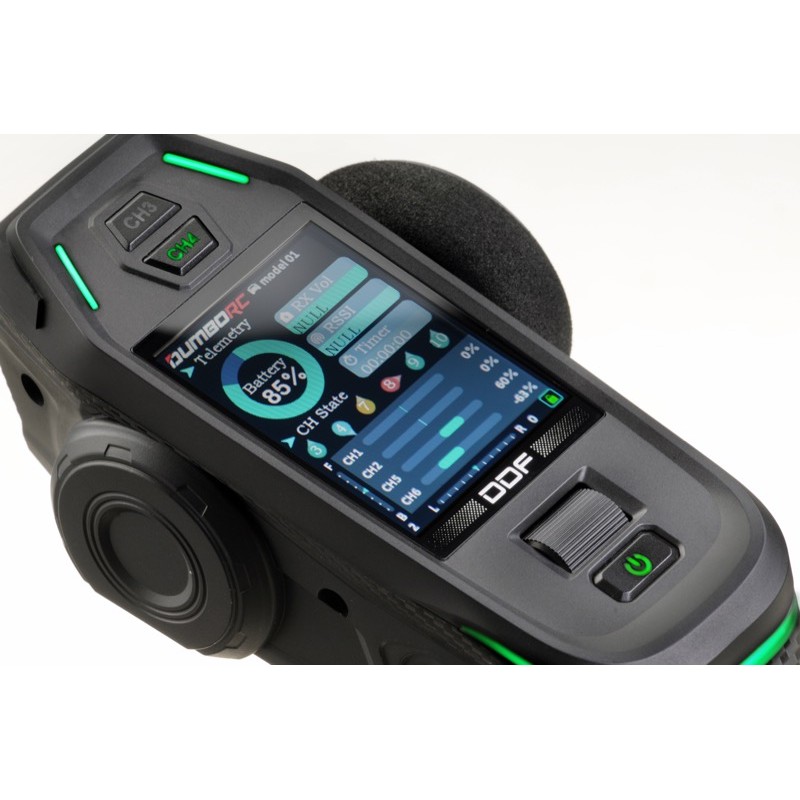

The large 4.0 x 5.3 cm color display clearly shows all important parameters. The menu navigation is divided into 3 parts, which are easy to understand. The main menu focuses on everyday settings such as trim and channel settings, while the model menu concentrates on special vehicle functions such as MIX settings. The third menu is responsible for the basic settings of the remote control. Among other things, alarm, display and sound settings can be made here.

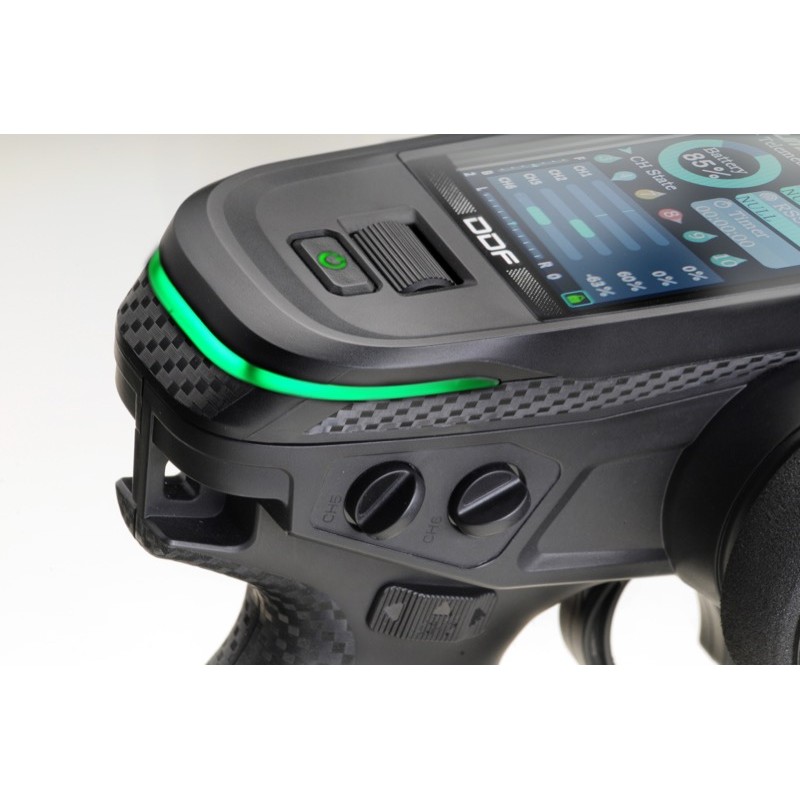

The menu is operated simply using just 2 buttons - the power button and the "Push&Spin Wheel". This means that settings can be made quickly and easily.

HIGHLIGHTS

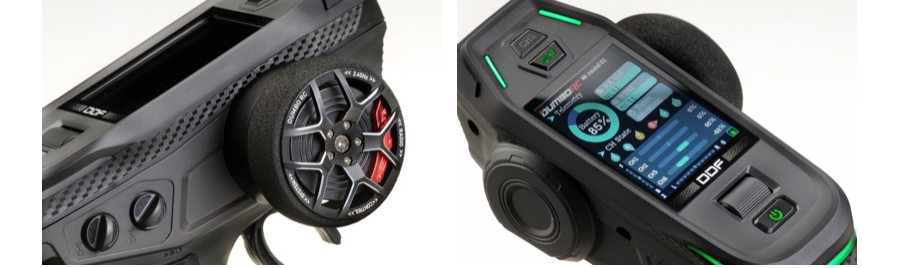

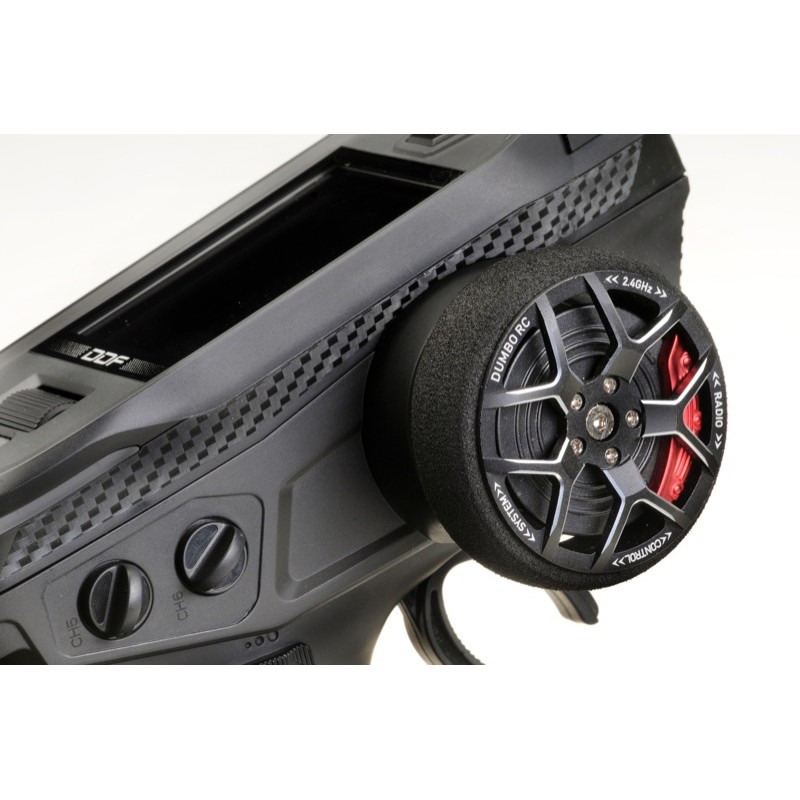

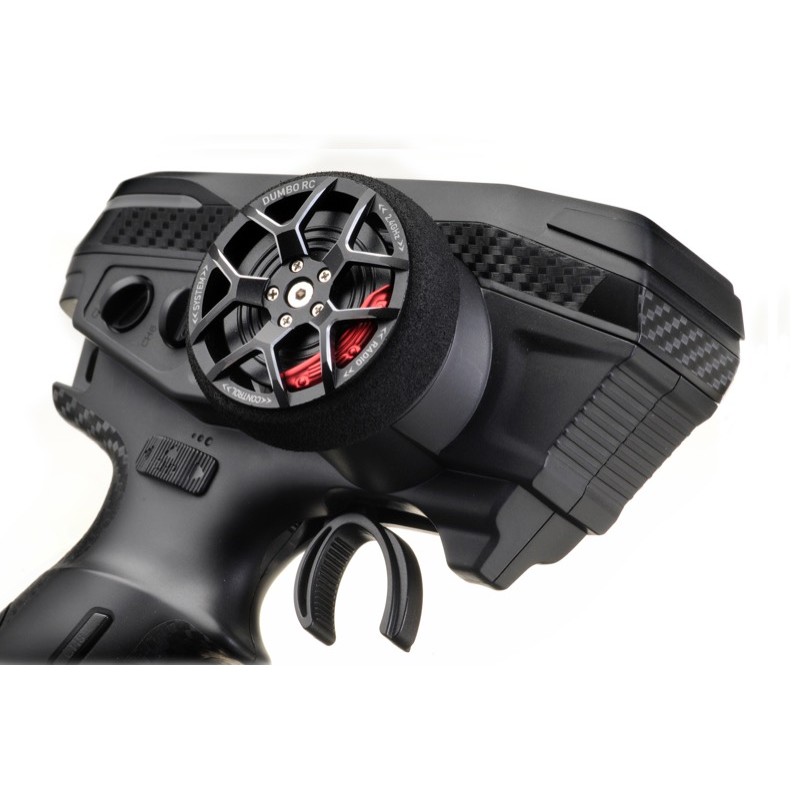

• Aluminum steering wheel with foam rubber cover
• 4,0 x 5,3cm color display
• Super easy operation with "Push&Spin" button
• 10 model memory

FEATURES

• Simple menu can be operated using just 2 buttons (push&spin wheel and power button)
• Supports tank mix mode and user-defined mix functions
• Independent setting of the servo direction and limitation of all channels
• Steering and acceleration curve can be adjusted
• Gyro and winch mode (separate accessory)
• Operating voltage display on the main screen
• 10 model memory
• Range of up to 350 meters

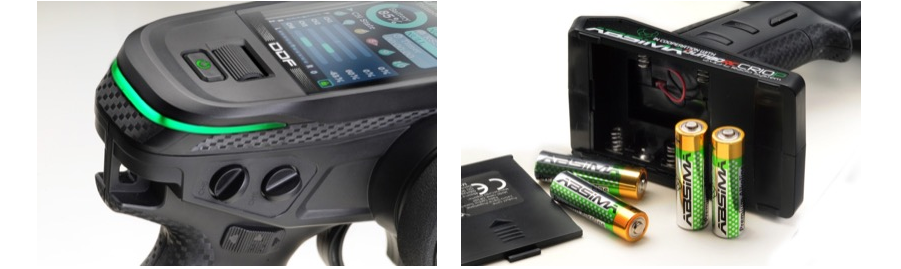

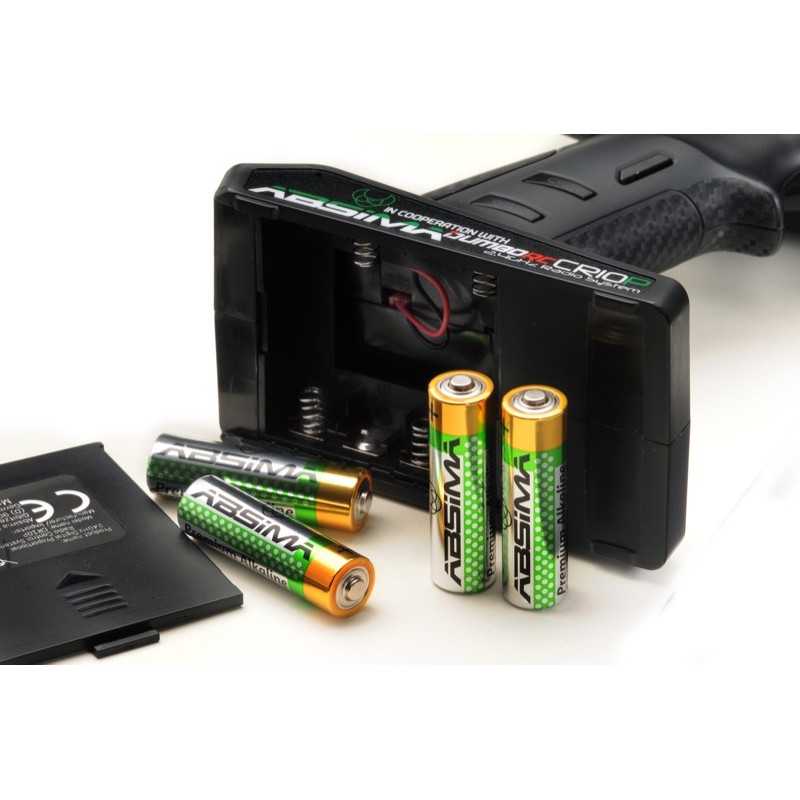

• Transmitter supports 4* AA batteries or 2S LiPo battery (Art. 4140015) as power supply
• Timer
• Various alarm and security functions
• LED lighting
• Suitable for on-road cars, off-road cars, crawler, tanks, boats

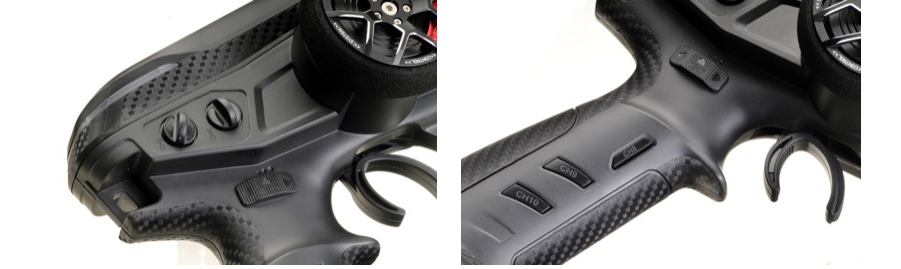

Description of the channels:
CH1: Steering
CH2: Trigger (acceleration/brake)
CH3/CH4: Button

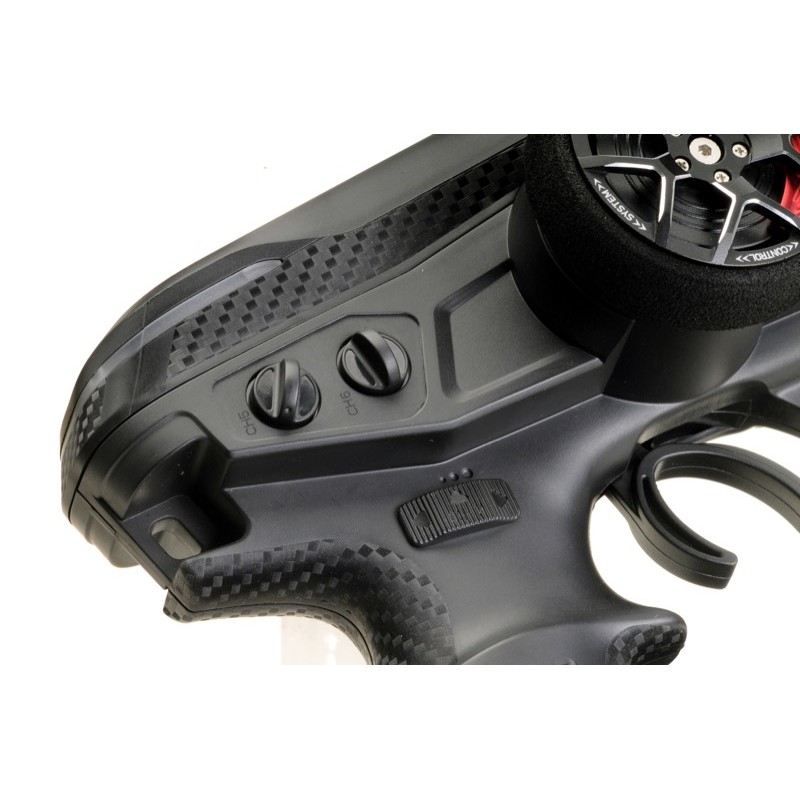

CH5/CH6: Rotary control
CH7: 3-way switch

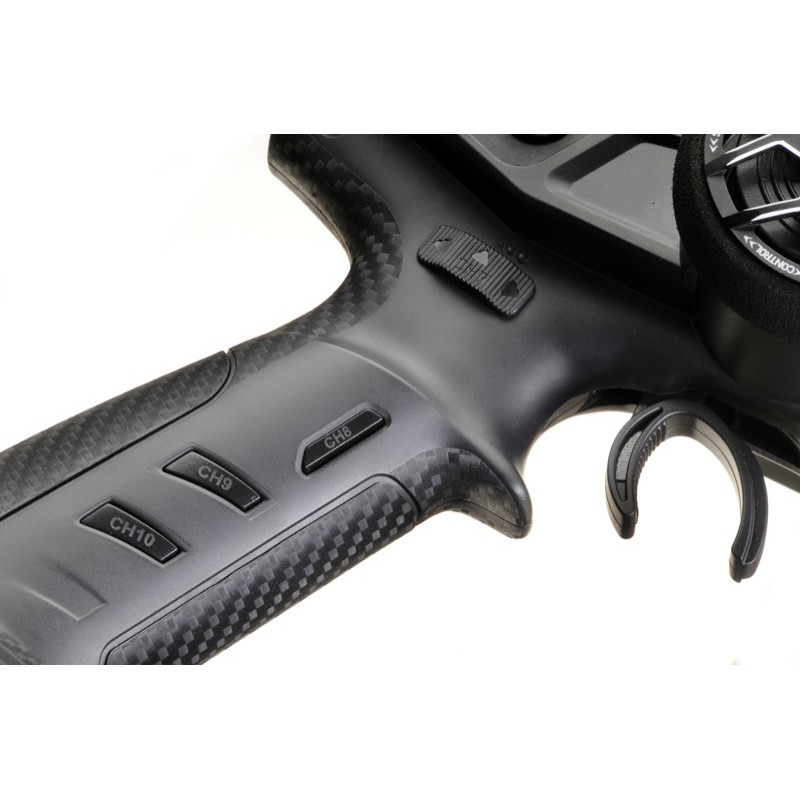

CH8/CH9/CH10: Button

TECH SPECS

RADIO:

• Frequency: 2.4GHz FHSS
• Operating voltage: 4.8V-11.1V (4* AA Mignon / 2/3S LiPo)
• Battery compartment size: 50*50*14mm
• Temperature range: -10°~+60°
• Dimensions (H/W/D): 200x85x150 mm
• Weight (without battery(s): 285g

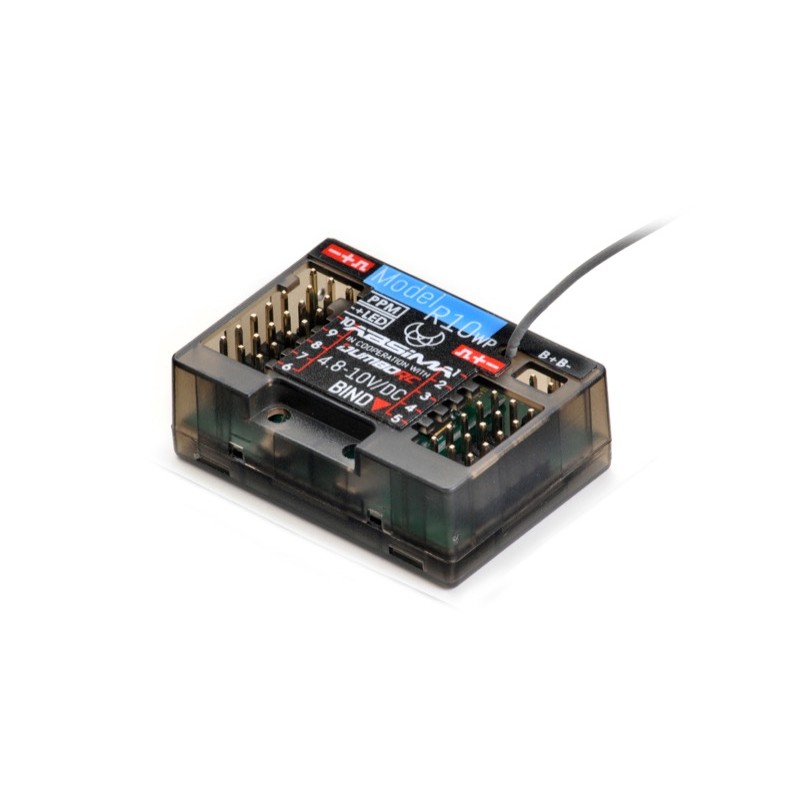

RECEIVER:

• Item number: 2020025
• Model: R10WP
• Frequency: 2.4GHz
• Channels: 10
• Waterproof: Yes
• HF-Frequency: 2.4 GHz FHSS
• Input power: 4.8–10 V/DC
• Weight: 10g
• Dimensions: 40*27*13mm

SCOPE OF DELIVERY

1* CR10P radio
1* R10WP receiver
1* Quick start guide (DE/ENG/FR)
