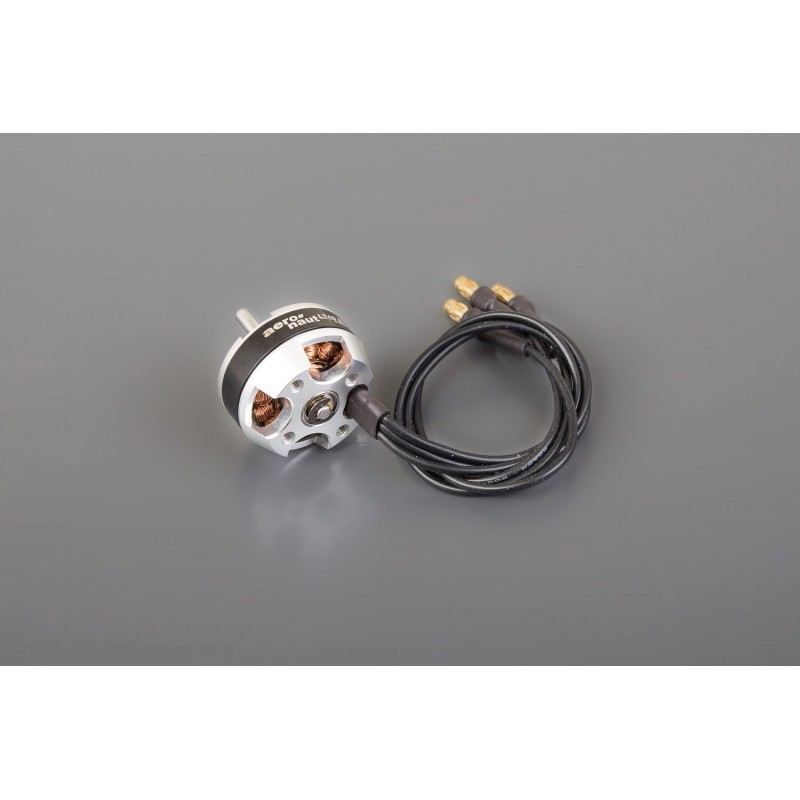

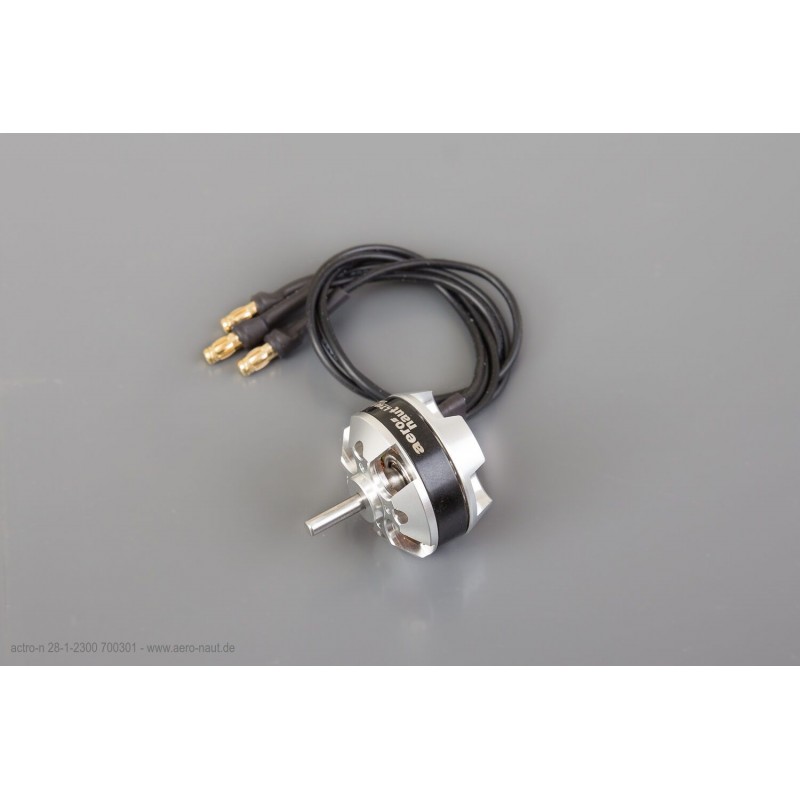

The new actro-n motors are designed not only for our own kits, but also for a wide variety of model aircraft on the market. This series offers powerful electric motors in sizes 28-50 mm, whose speed and torque are adapted to the common electric gliders in the 1.5-3 m class. The motors also find their place in our boats with hulls up to approximately 80 cm. The 35 mm motors are also ideal for trainer models with a wingspan of up to approximately 1.6 m and a take-off weight of up to 2.5 kg, or boats with a length of approximately 80 cm or more. The 50 mm series is suitable for larger electric model aircraft such as our Cessna (order no. 1371/00) and for boats in the size class of our Comtesse (order no. 3085/00). This actro-n 28-1-2300 motor is designed for backmount installation, meaning the shaft exit is on the side of the rotating part of the motor. A mounting bracket is included with the motor for easy installation. This motor is ideally suited for mounting on motor pylons or as a front mount in front of the fuselage (as is the case with many shock flyers or indoor flyers). The motor is also used in the Lilienthal 40 RC and DMFV Jump Racer drive sets.

Technical data

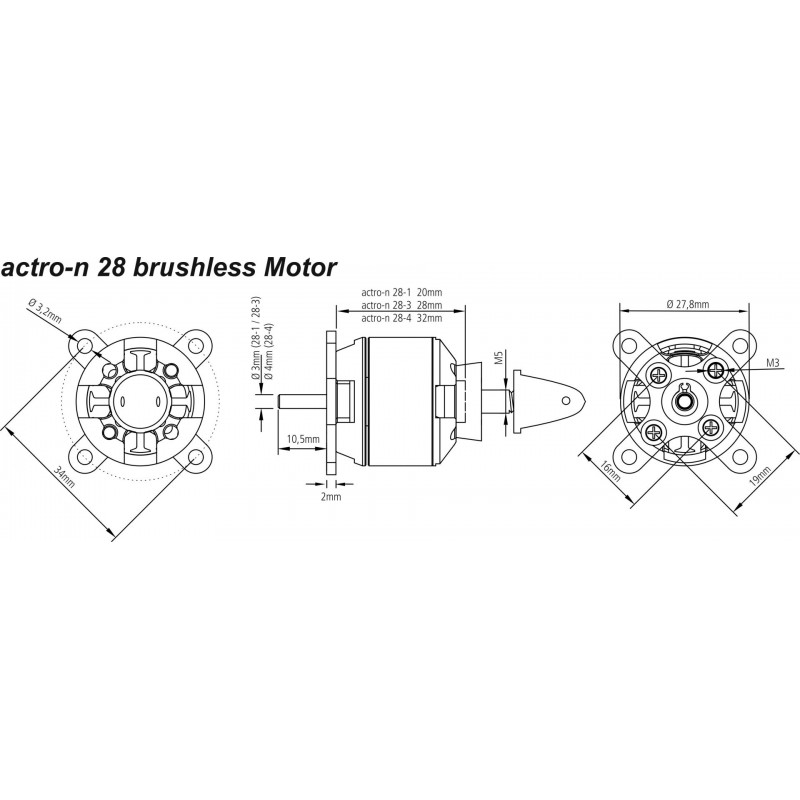

dimensions approx. - 28 x 20 mm
idle speed - 2,300 rpm
came - 3mm
shaft length approx. - 10 mm
LiPo - 2-3
Idle current - 0.5 A
Recommended continuous current - 12 A
Max. short-term current - 18 A
Max. power approx. - 216 W
Weight approx. - 31 g
Propeller recommendation - 2S - 6x3"
Propeller recommendation - 3S - 5x3"
