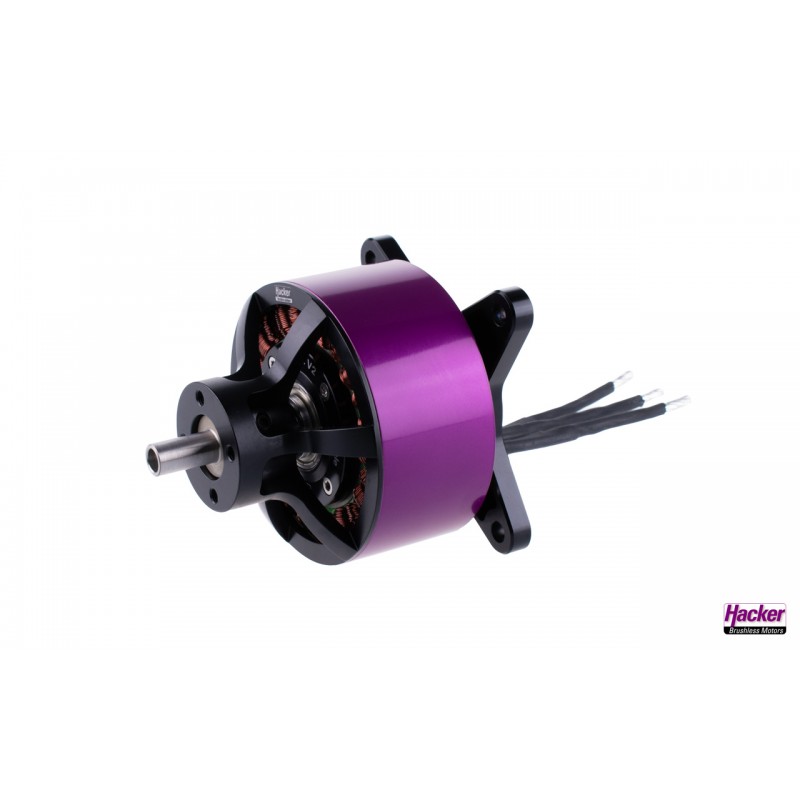

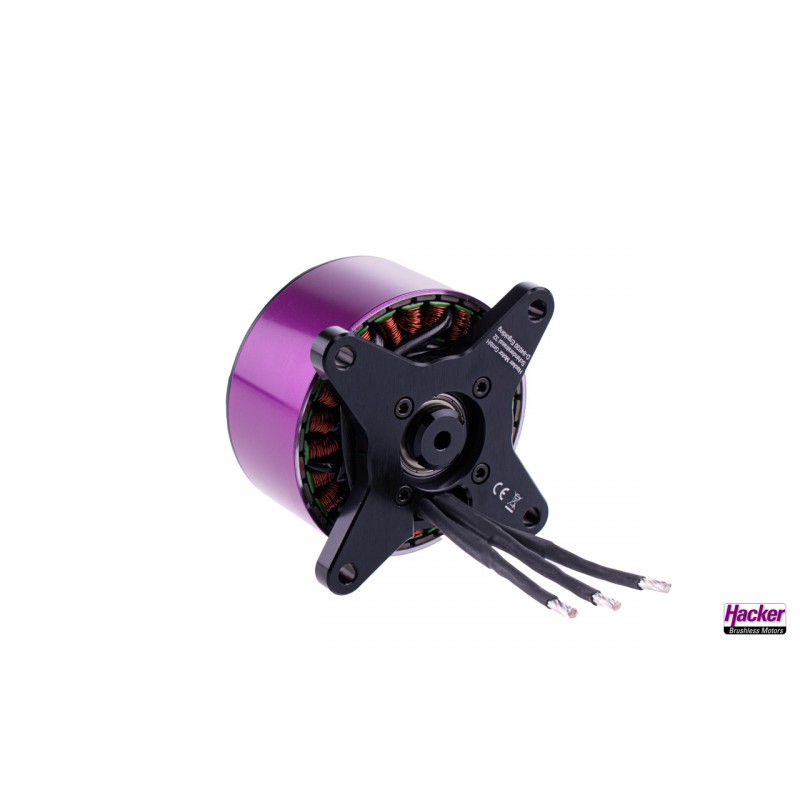

the new Q80-5L V2  made in Germany

The Q80-L fits perfect to electric powered large rc-models. Ideal for 3D / aerobatic models with ~ 2.5 -2,6m span and up to ~ 12kg (Aerobatics 15kg) kg weight. Also in scale models to ~ 20kg or fast WW2 models to 18kg, the motor makes a good figure.

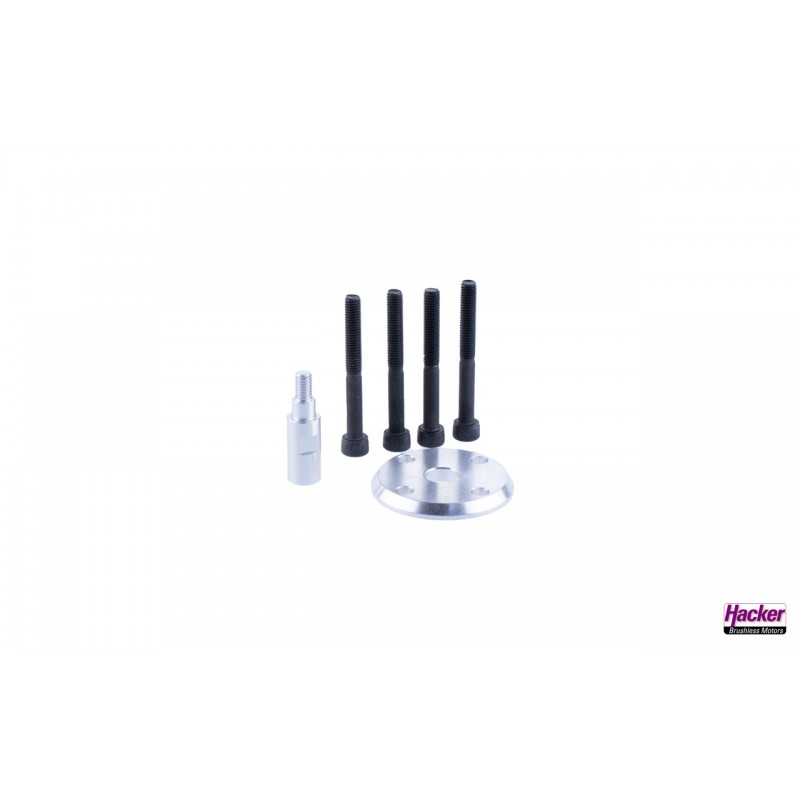

The new Propadapter with 30mm bolt circle and 4 x M5 screws transmits the high torque of Q80 perfectly to the Prop.

Technical Data:

Powerrange - max. 7000W (15 sec.)
Idle current bei 8,4V - 2,4A
Resistance - 0,007 Ohm
Kv - 215
Weight - 1335g

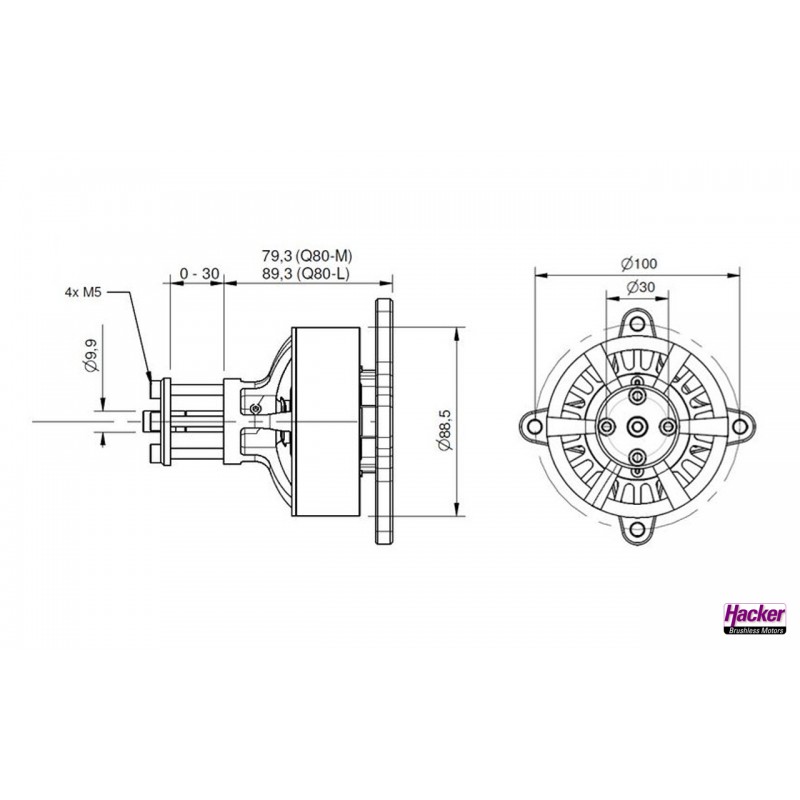

Diameter - 88,5 mm
Lenght (Backmount - Prop) - 89,3 mm
Pole - 28
recommend ESC - MasterSpin 170 OPTO
recommend Timing - 25-30°
Shaft - 10mm

Specifications
max. power range [W] (max.15 sec.) - 7000
Poles - 28
Turns - 5
Idle current (I0) at 8.4V [A] - 2,4
Internal resistance (Ri) [Ohm] - 0,007
Recommended timing [°] - 25
Switching Frequenzy [kHz] - 8
Controller recommendation [A] (depending on setup) - 170 - 300
Idle speed per volt (kv) - 215

Dimensions and weight
Weight [g] - 1335
Length [mm]/[in] - 89,3
Outer diameter [mm]/[in] - 88,5

Delivery contents
Prop Adapter - Yes
Mounting cross - Yes
Gold plug mm (recommended) - 5,5 - 8
Backmount mountable - Yes
Front mountable - No
