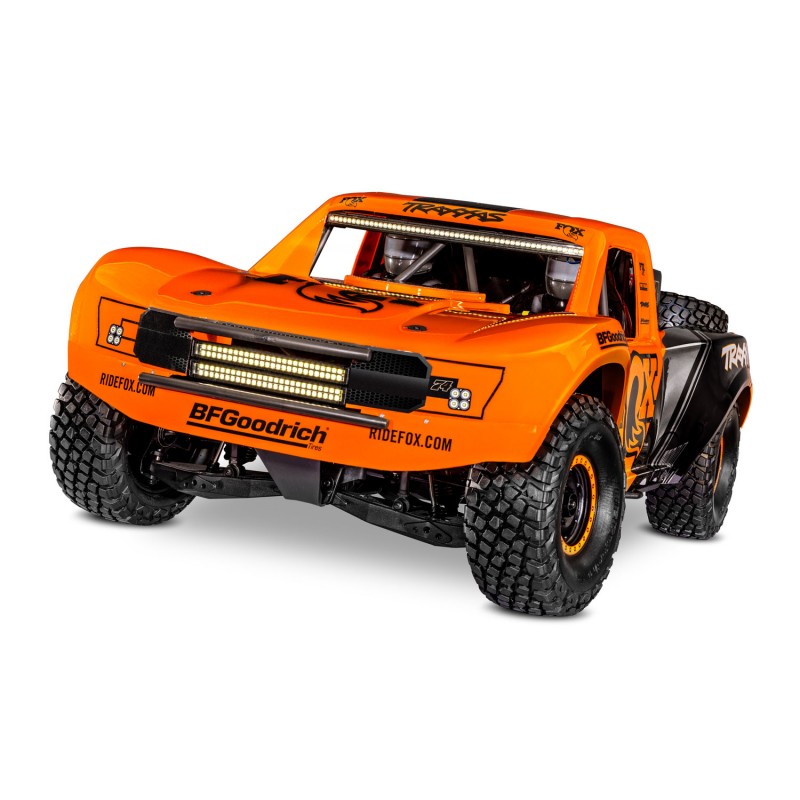

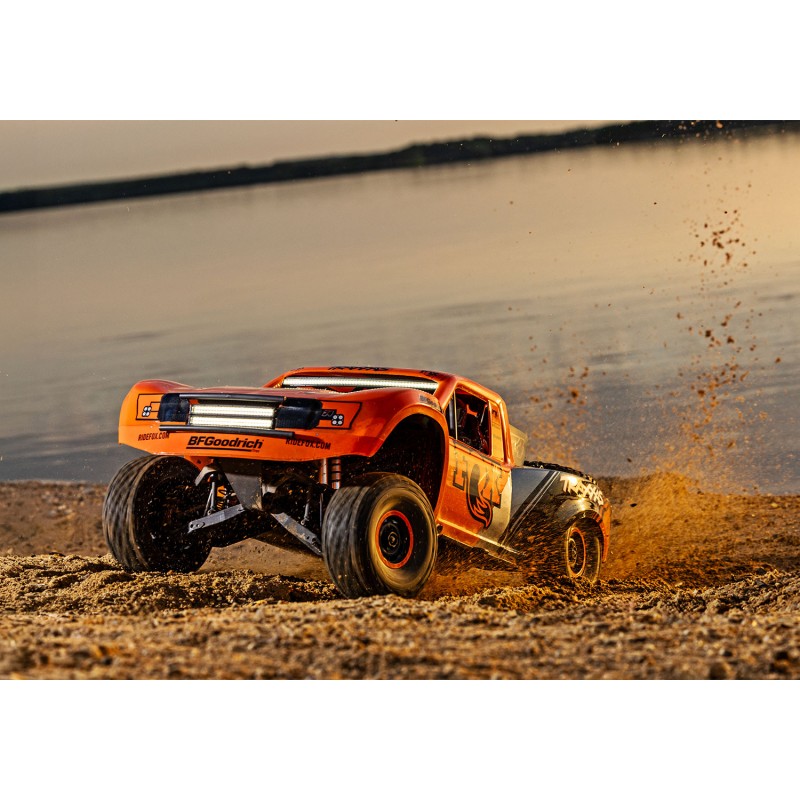

MODEL 85086-4: Unlimited Desert Racer^® Pro Scale^® 4WD race truck, Ready-To-Race^® with TSM^®, with TQi™ 2.4 GHz radio system, Velineon^® VXL-6s™ brushless power system, and licensed race replica painted body

Name:     Unlimited Desert Racer®
Type:     Desert race truck
Speed:     30+ mph (with 4s LiPo), 50+ mph (with 6s LiPo)
Skill Level:     5
Scale:     Pro-Scale®
Weight:     13.4 pounds (6.1 kg)

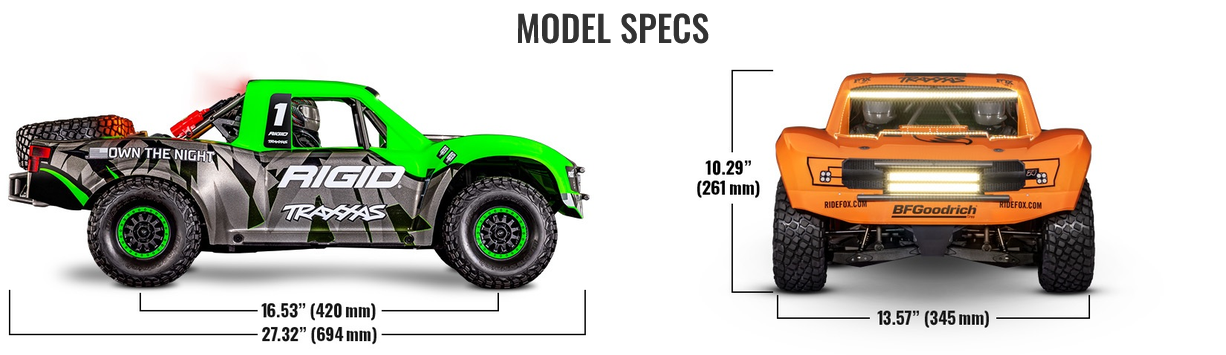

Length:     27.32 inches (694 mm)
Width:     13.57 inches (345 mm)
Front Track:     13.57 inches (345 mm)
Rear Track:     13.57 inches (345 mm)
Height:     10.29 inches (261 mm)
Wheelbase:     16.53 inches (420 mm)
Center Ground Clearance:     2.27 inches (58 mm)
Driveline:     Shaft-driven 4WD
Transmission:     Direct-drive with Torque-Biasing Center Drive
Differential Type:     Sealed, 4-gear (front), locked spool (rear), Sealed, 4-gear (1M weight oil) (center)
Gear Ratio (Internal):     17.89:1
Gear Pitch:     32 pitch
Steering Servo:     2270 metal gear, digital high-torque waterproof
Radio System:     TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs:     181 mm X 46 mm X 56 mm

MOTOR SPECS

Motor Name:     2200 Kv
Motor Type:     Sensorless brushless
Motor Weight:     14.32 ounces (406 g)
Motor Length:     2.97 inches (76 mm)
Motor Diameter:     1.65 inches (42 mm)
Motor Shaft Size:     5 mm
Motor Connector Type:     6.5 mm bullet

ESC SPECS

Name:     Velineon VXL-6s
ESC Type:     Brushless
Case Size:     2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight:     7.30 ounces (207 g)
Motor Connectors:     6.5 mm bullet
Battery Connectors:     Traxxas High Current Connector

FEATURES

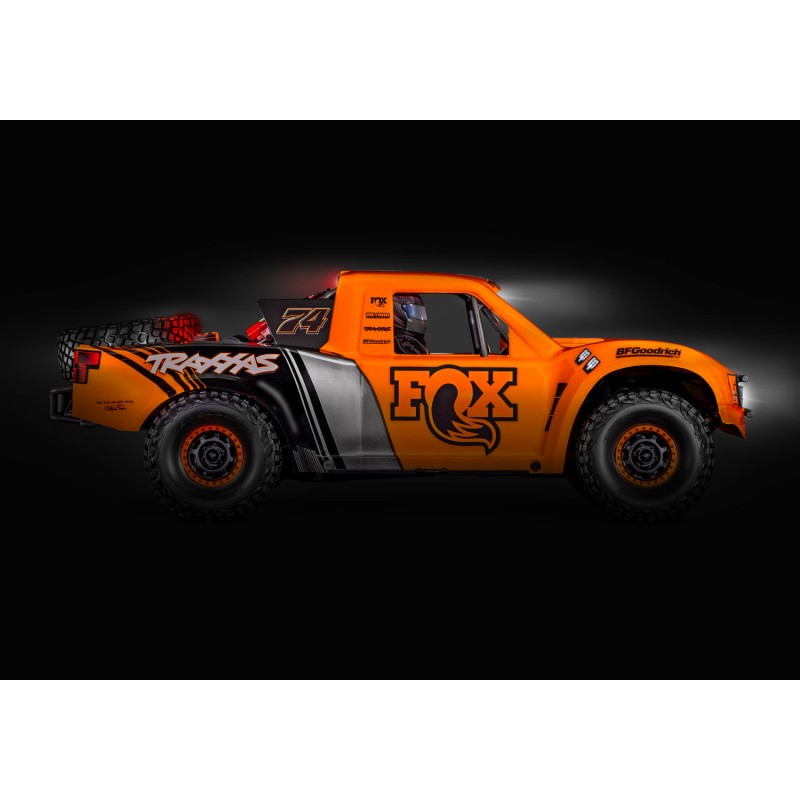

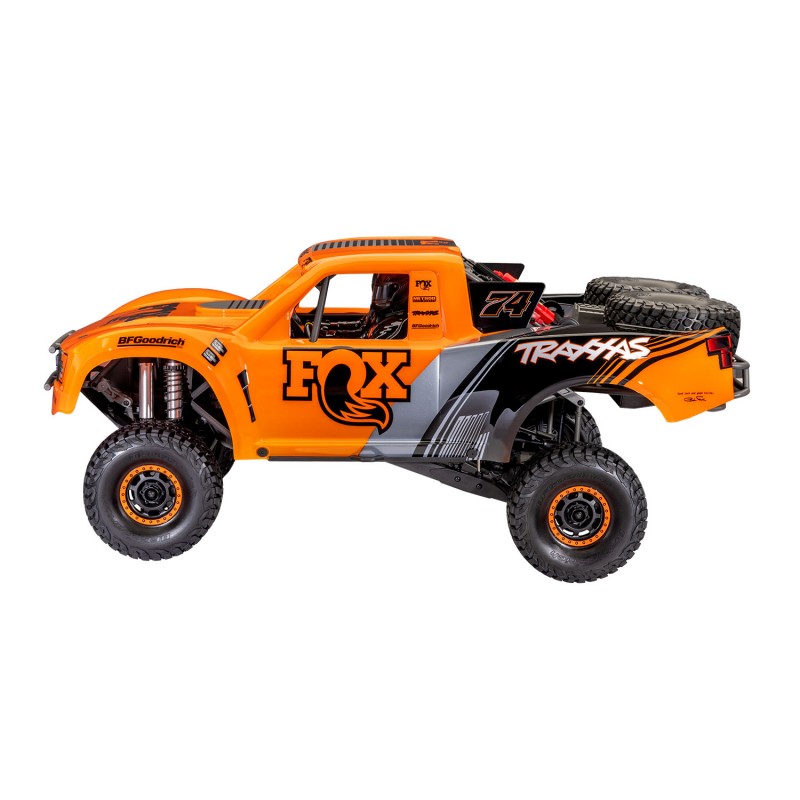

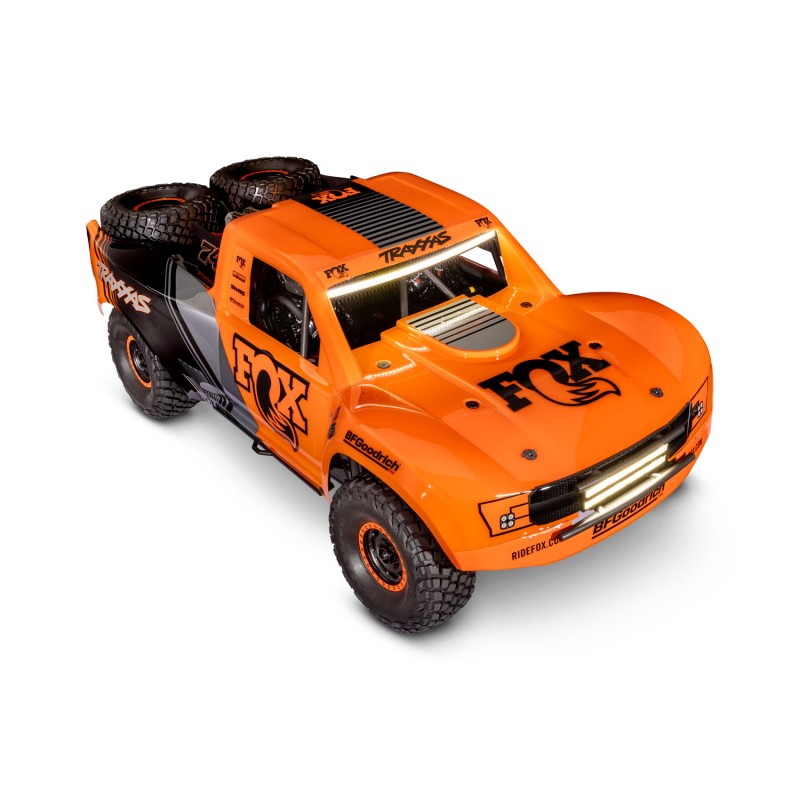

• Large Pro Scale^® Body with Highly Detailed Replica Parts
• Heavy-duty truck body mounts to chassis in multiple locations

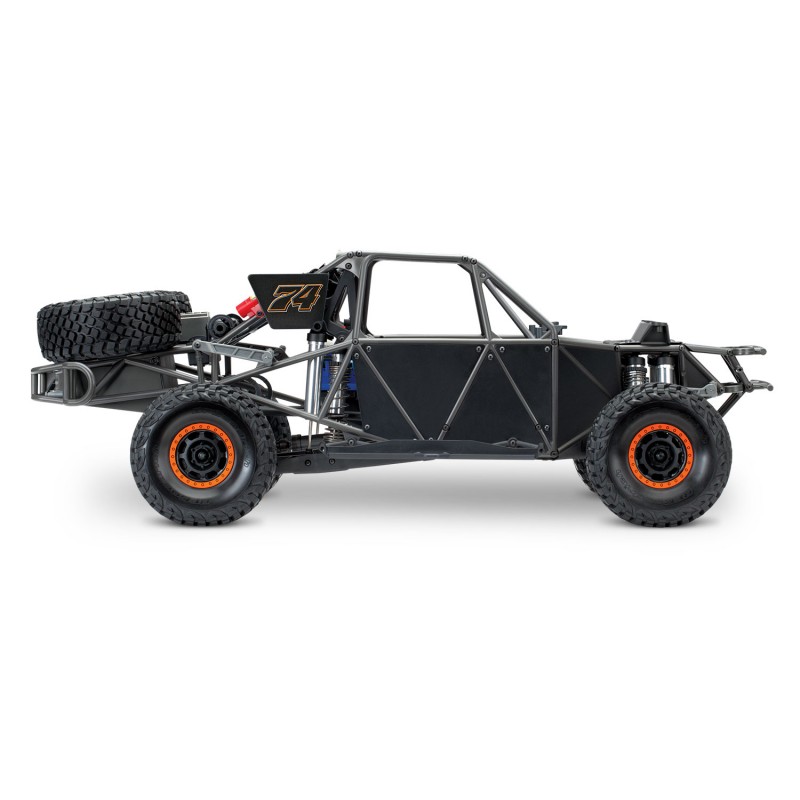

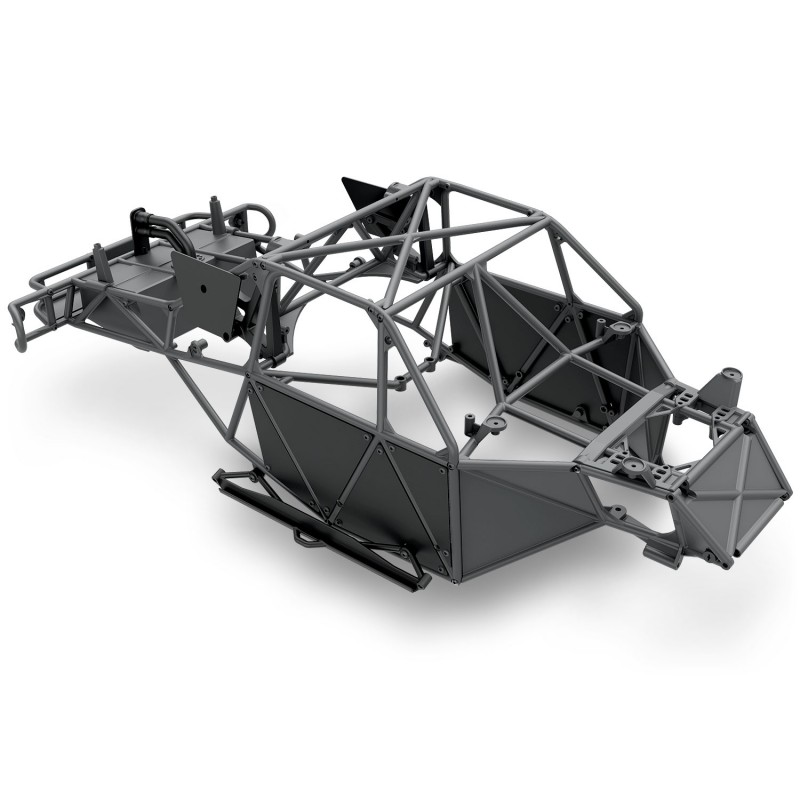

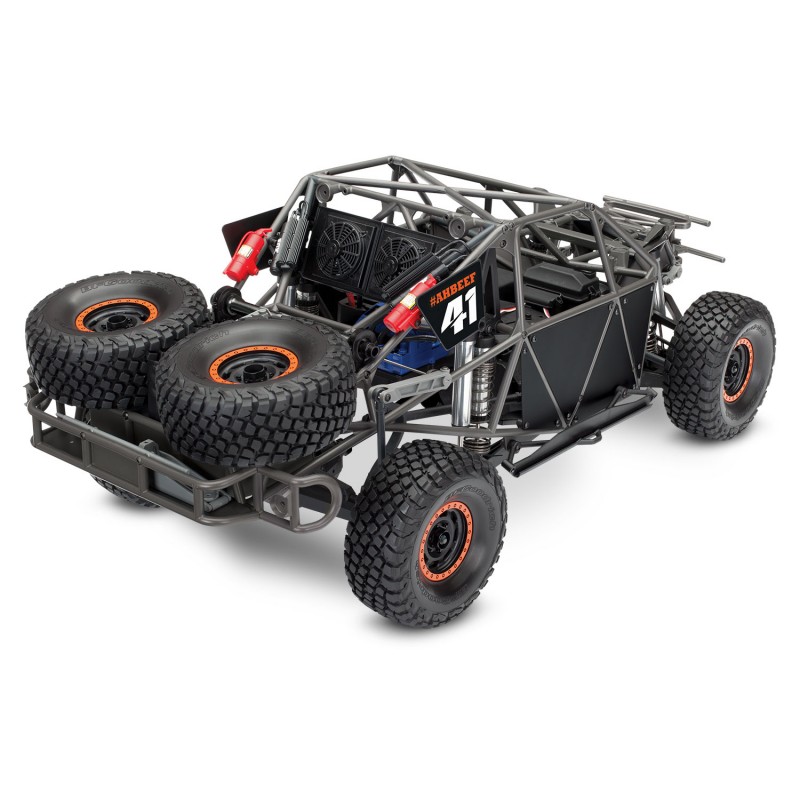

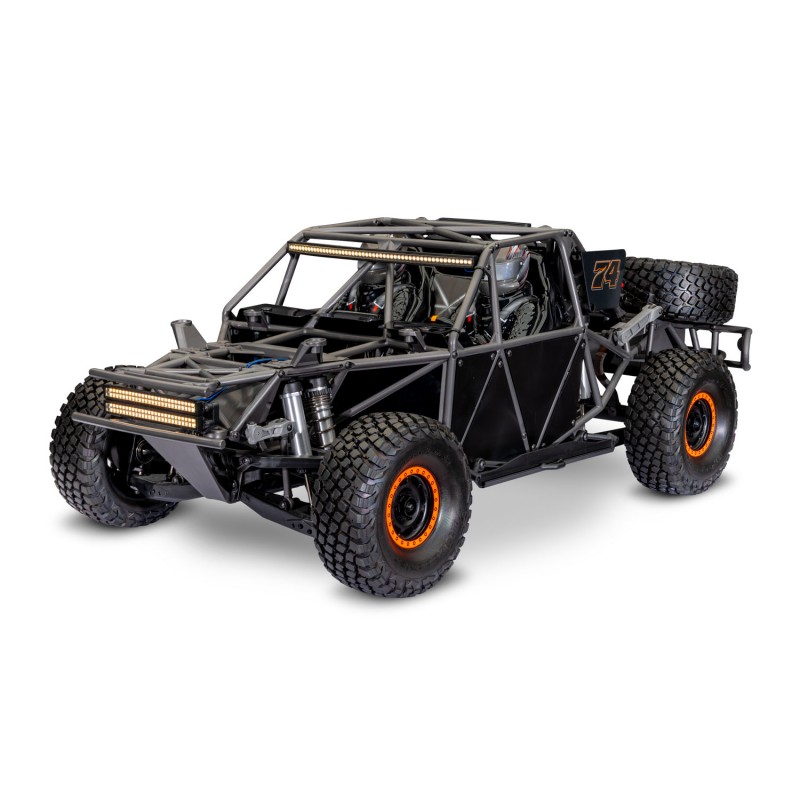

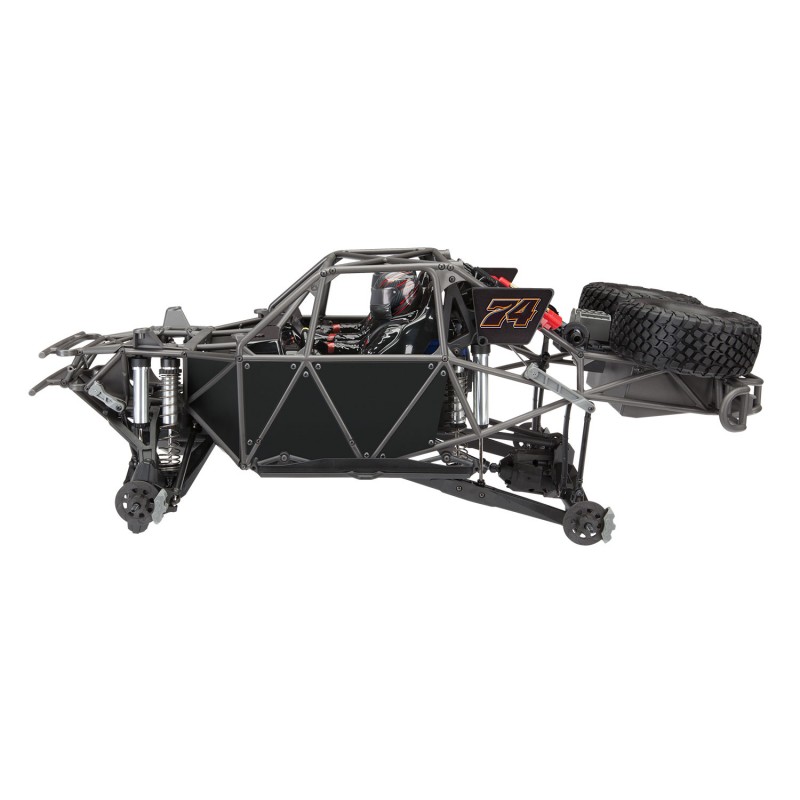

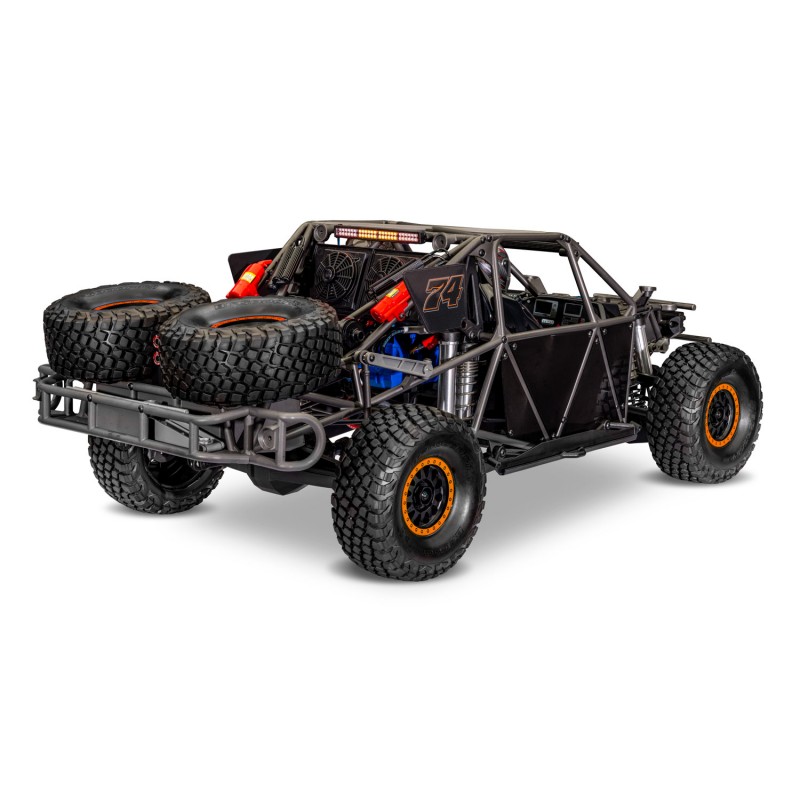

• Strong and functional tube frame mimics full-size off-road racers

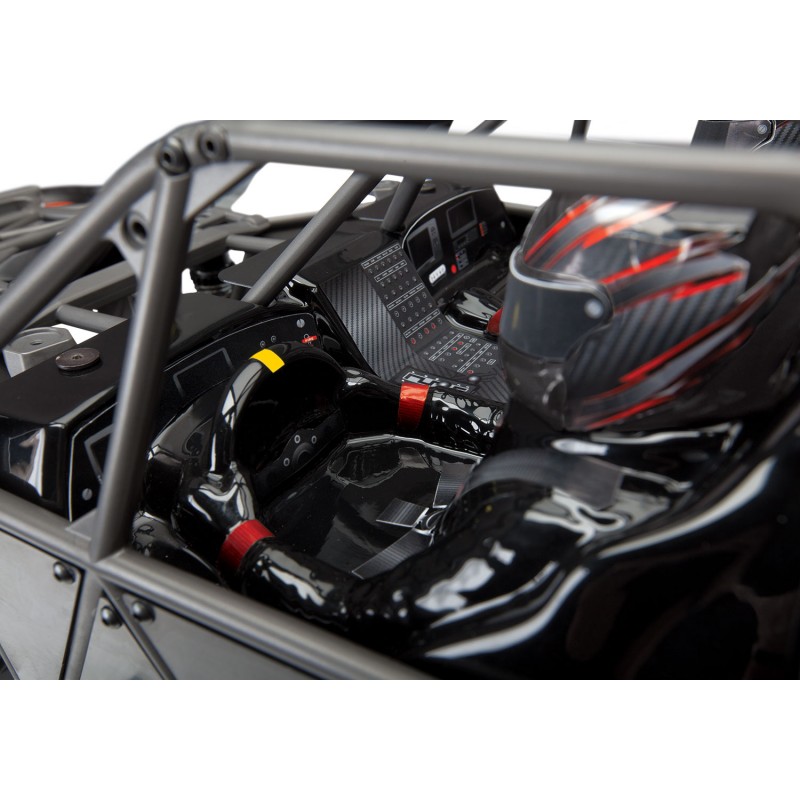

• Detailed interior cabin with driver figures
• Replica brake calipers and discs with integrated 17 mm wheel hubs

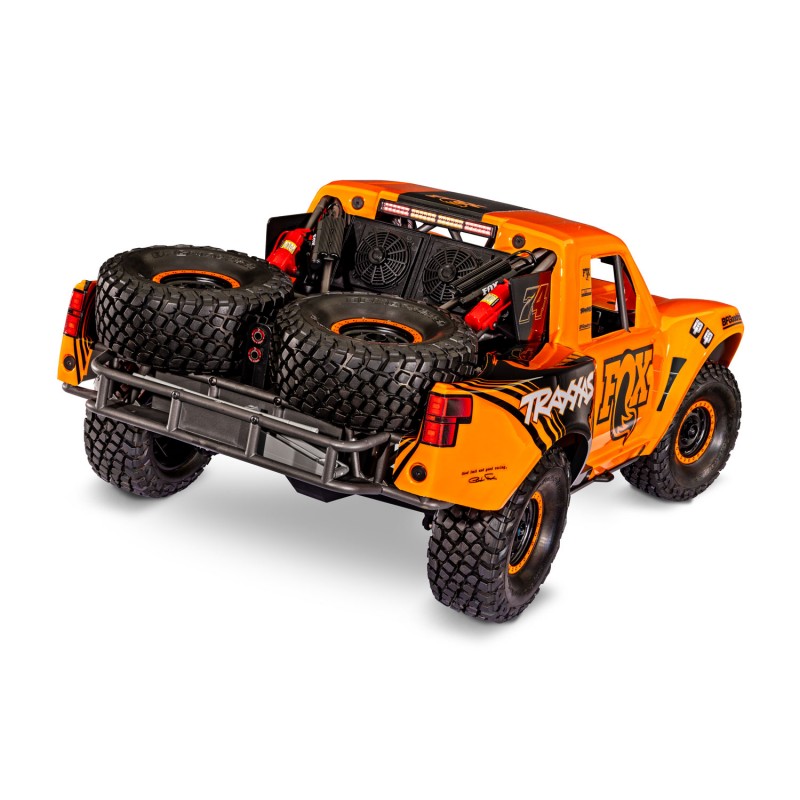

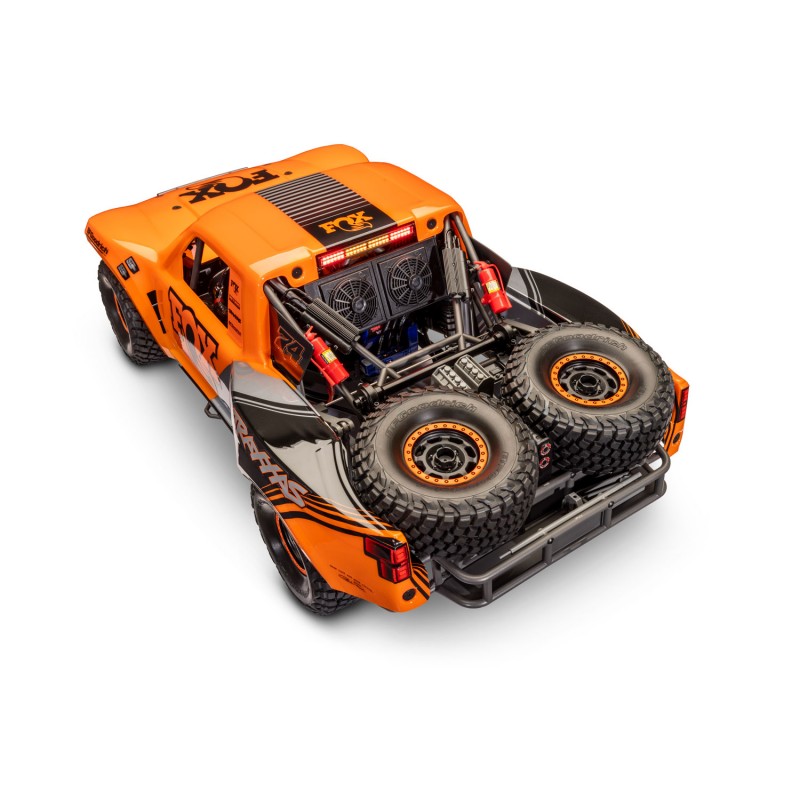

• Two fully functional spare tires and functional spare driveshaft
• Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
• Realistic side plates mount to tube frame
• VXL-6s™ Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Velineon^® Brushless Motor
• 4-pole 2200 Kv brushless motor
• 5 mm output shaft
• Finned can for better heat dissipation
• Traxxas Stability Management^® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

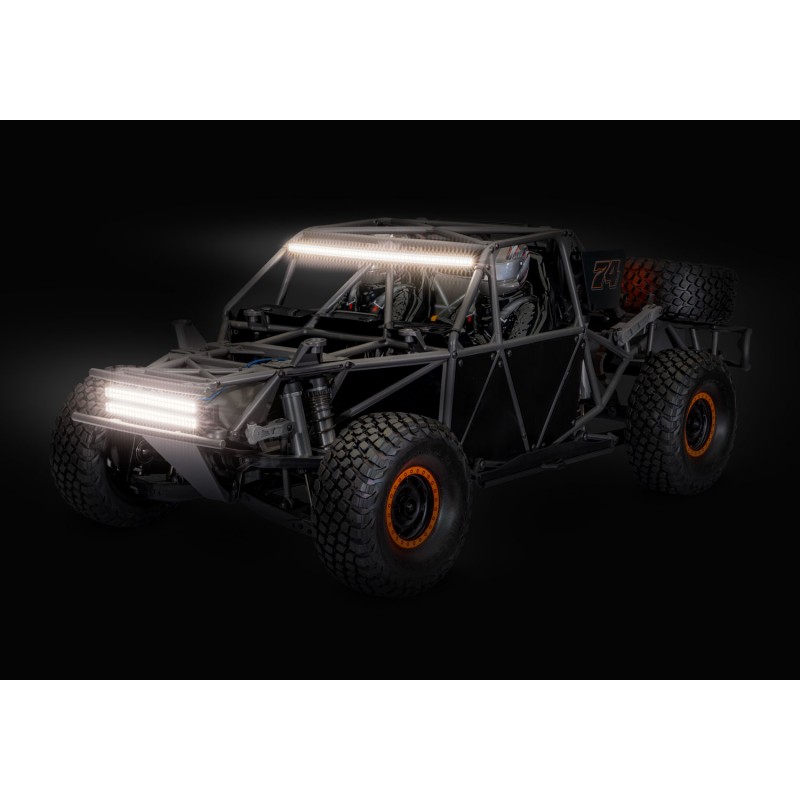

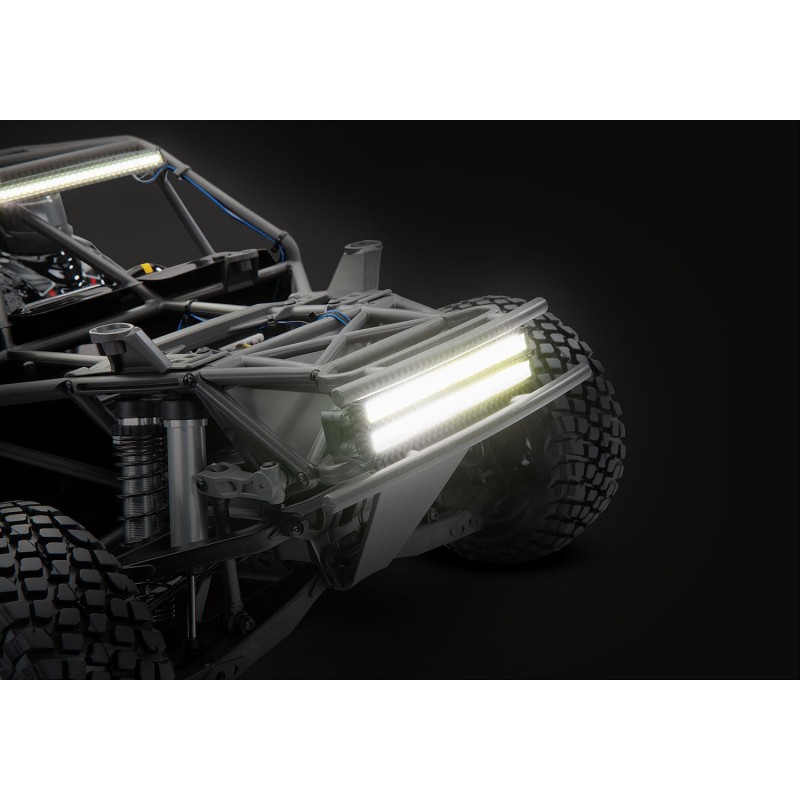

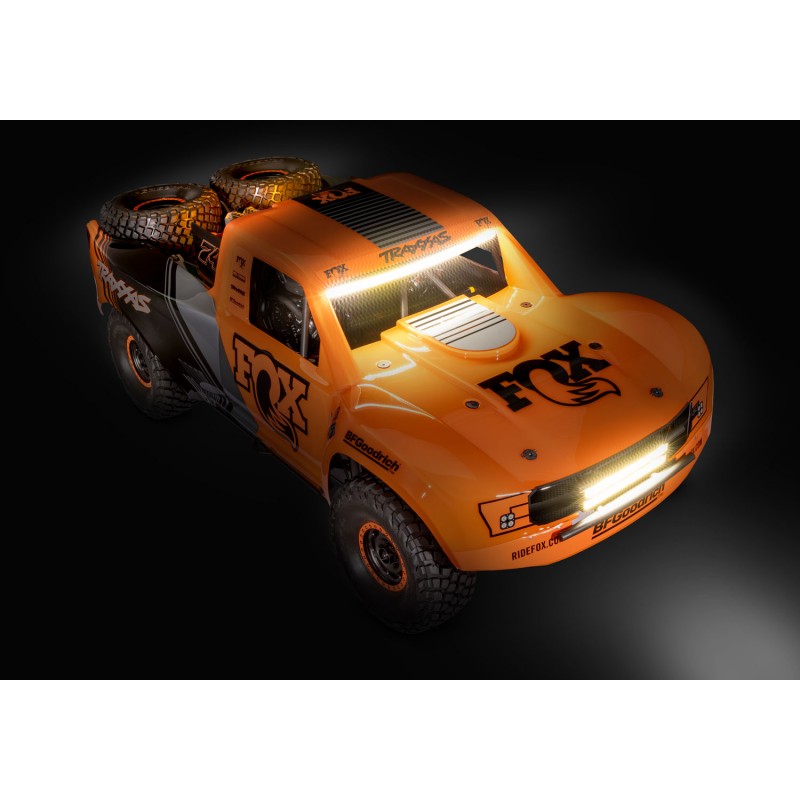

• Factory Installed LED light kit

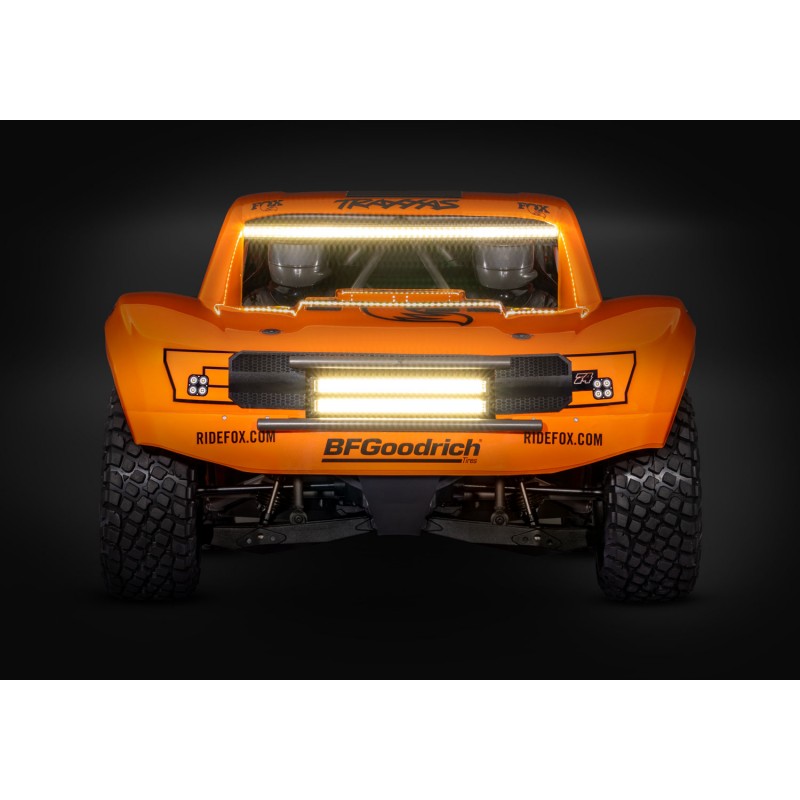

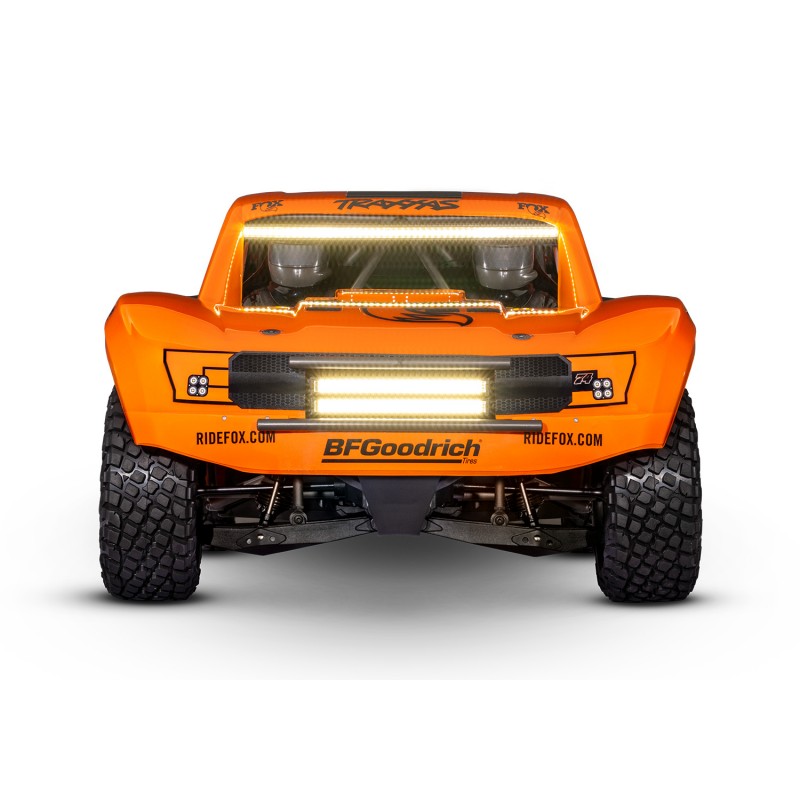

• Dual bumper-mounted light bars (52 LEDs each)
• Curved roof light bar (52 LEDs)

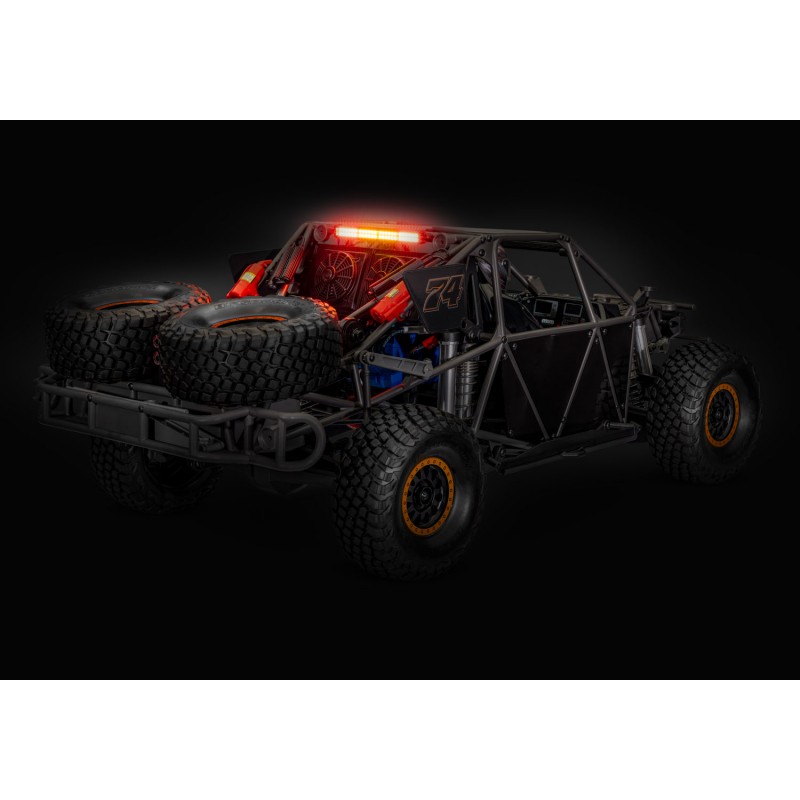

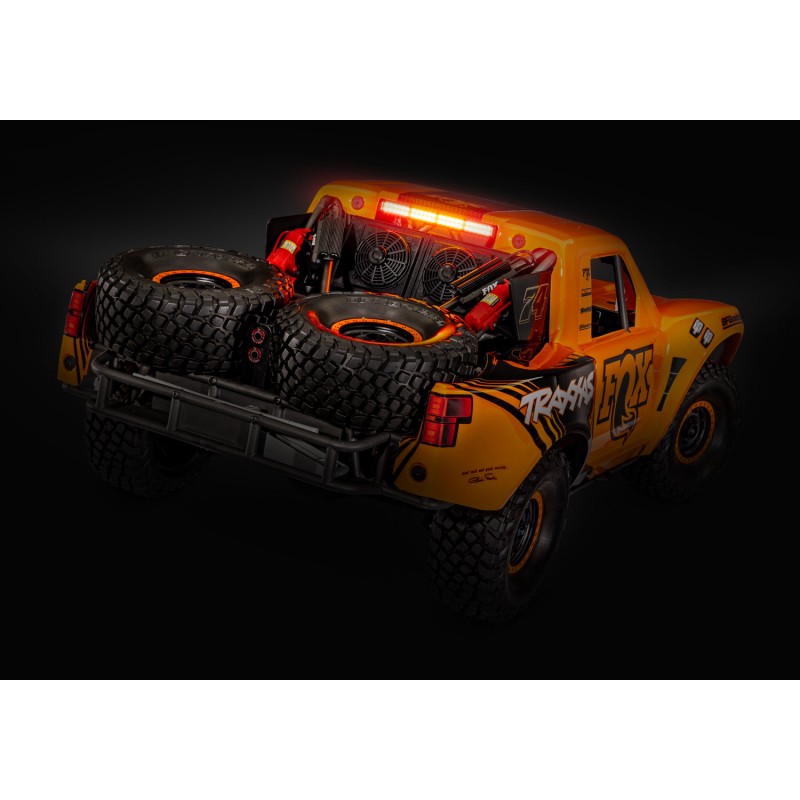

• Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
• High-voltage 8-channel power amplifier
• Regulated output for stable lighting performance
• TQi™ 2.4 GHz Radio System
• 2-channel transmitter
• 5-channel micro receiver (6533) with fail-safe and integrated telemetry ports
• Compatible with Traxxas Link Wireless Module (6511, sold separately) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

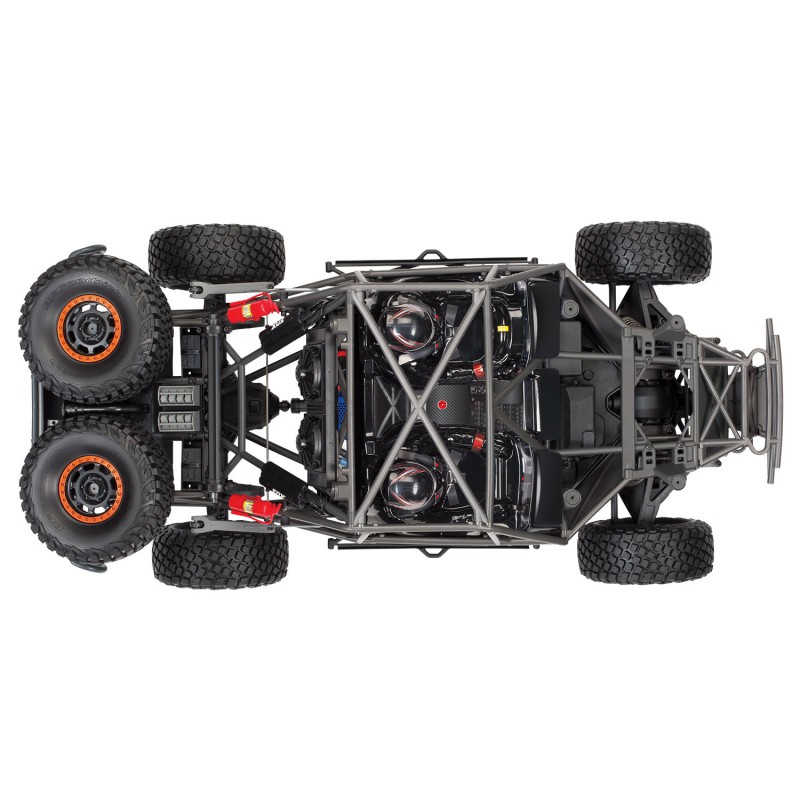

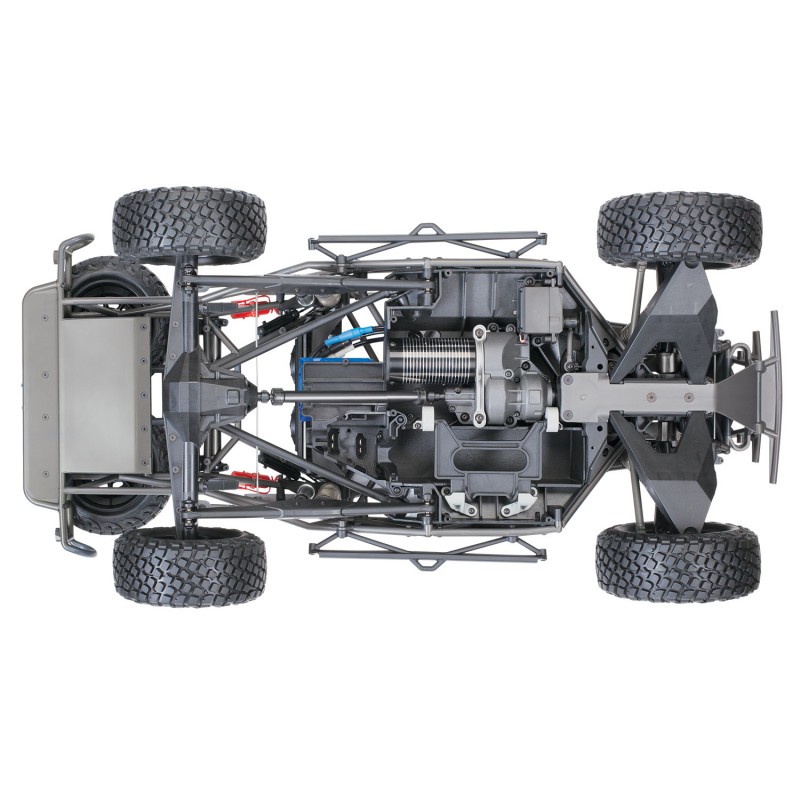

• Chassis
• Composite inverted tub design
• Makes maintenance easier
• Lowers center of gravity (CG) for improved handling
• Allows easy access to components

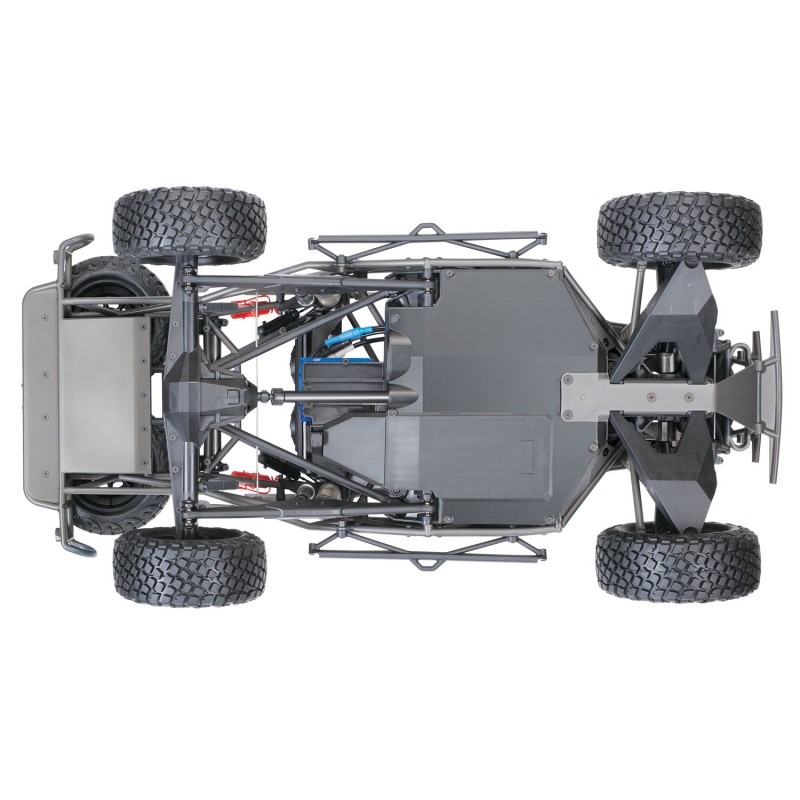

• Tough skid plates protect critical components

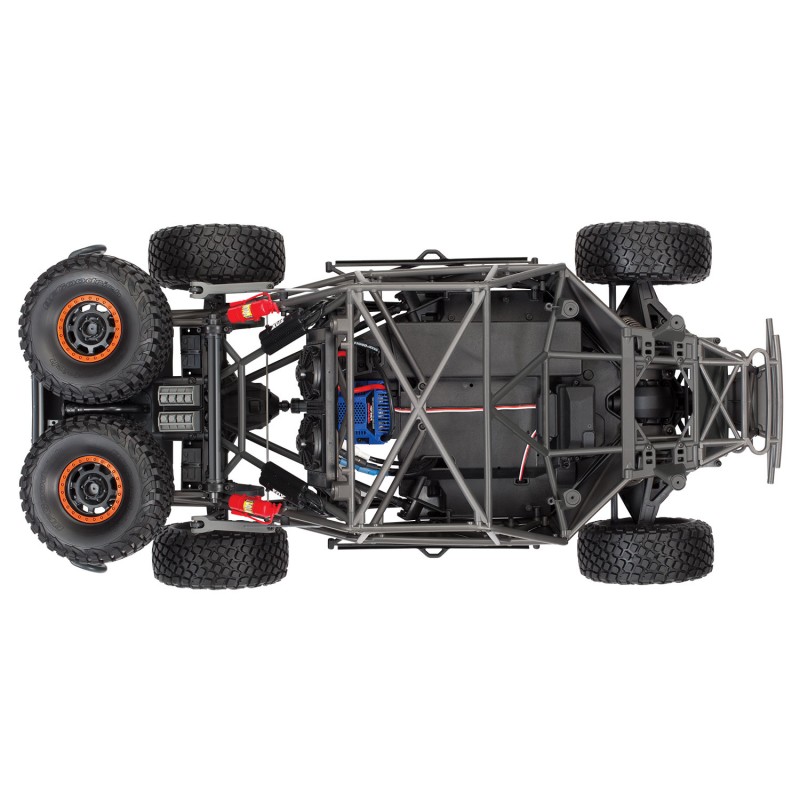

• Fully integrated tube frame for scale appearance and added rigidity
• Reinforced bumpers to absorb impacts
• ESC battery plugs hard mounted to chassis
• Innovative Battery Compartment
• Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
• Opens from underneath without removing body
• Fixed oversize battery strap locks batteries securely into place
• Separate skid plate to protect batteries
• Transmission
• All-steel gear direct drive transmission
• Torque-Biasing Center Drive™
• Removes as a single piece for easy maintenance
• Fixed-pin gear mesh system
• Drivetrain
• Steel CV driveshafts (front) with 6 mm stub axles
• Steel straight axle (rear)
• Oil-filled limited slip front differential
• Locked steel spool (rear)
• Heavy-duty splined front driveshaft
• Fixed-length steel rear driveshaft
• Steering
• Chassis mounted 2270 metal-gear servo
• Dual-bellcrank design with bearings and integrated servo saver
• Solid non-adjustable steering links for rugged durability
• Suspension
• Provides scale looks and authentic off-road driving dynamics
• Tough independent double-wishbone front suspension with captured rod ends

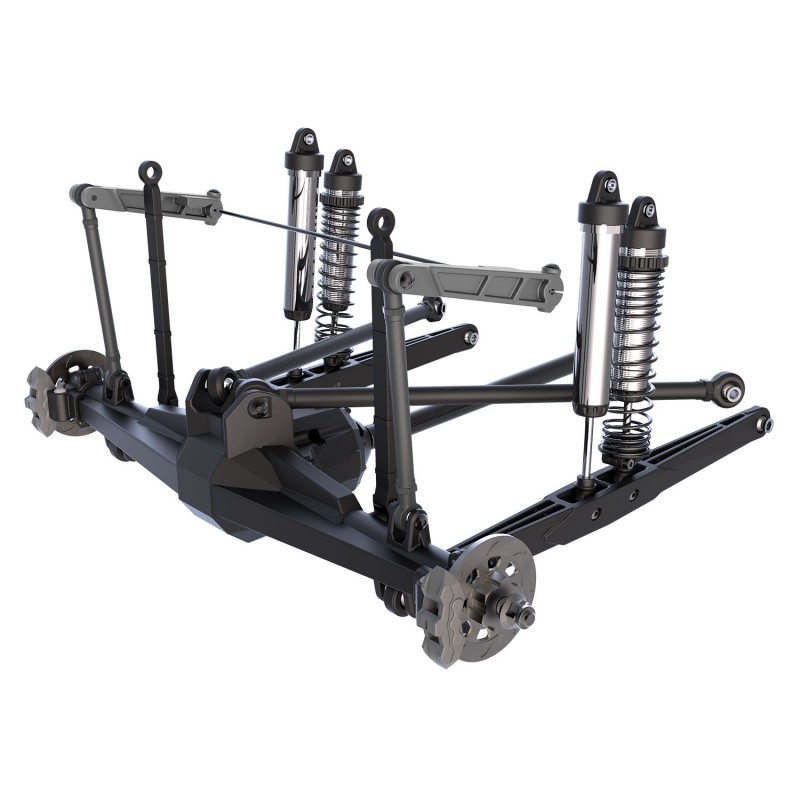

• Triangulated 4-link rear suspension with solid rear axle
• Tough composite trailing arms
• Steel upper links with 3 optional positions for suspension tuning
• Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
• Realistic and functional front and rear sway bars
• Detailed functional limit straps on rear axle
• Wheels and Tires
• Replica BFGoodrich^® KR3 off-road tires
• Beadlock-style 17 mm dual-diameter wheels
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

MODEL 85086-4: Unlimited Desert Racer^® Pro Scale^® 4WD race truck, Ready-To-Race^® with TSM^®, with TQi™ 2.4 GHz radio system, Velineon^® VXL-6s™ brushless power system, and licensed race replica painted body

What’s In The Box:

• Unlimited Desert Racer with VXL-6s ESC and 2200 Kv motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries
  Unlimited Desert Racer accepts a single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
• Charger
  The Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance.
• AA Alkaline Batteries
  Four AA alkaline batteries for the transmitter
