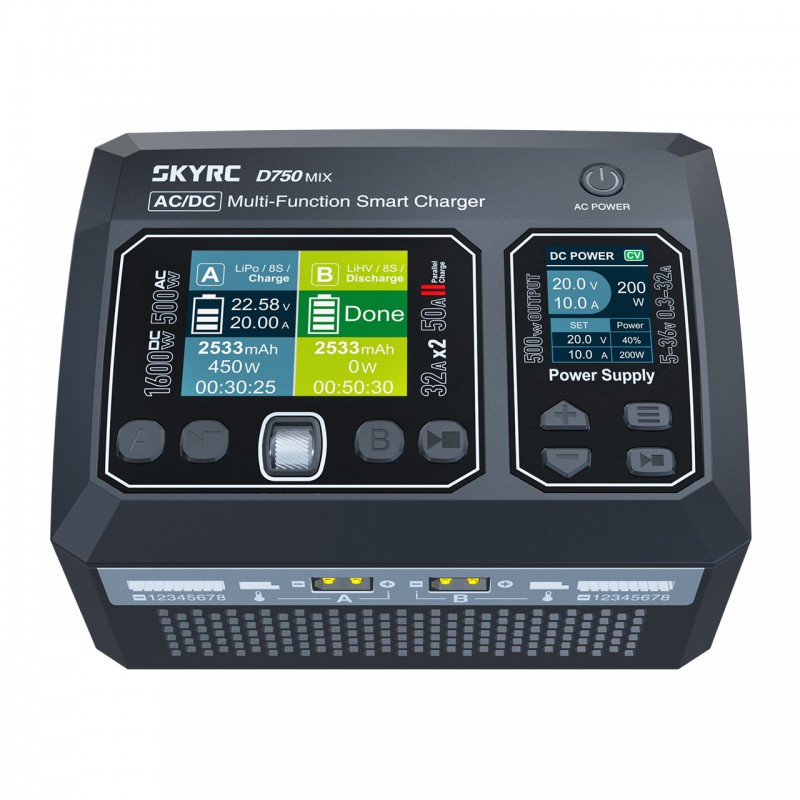

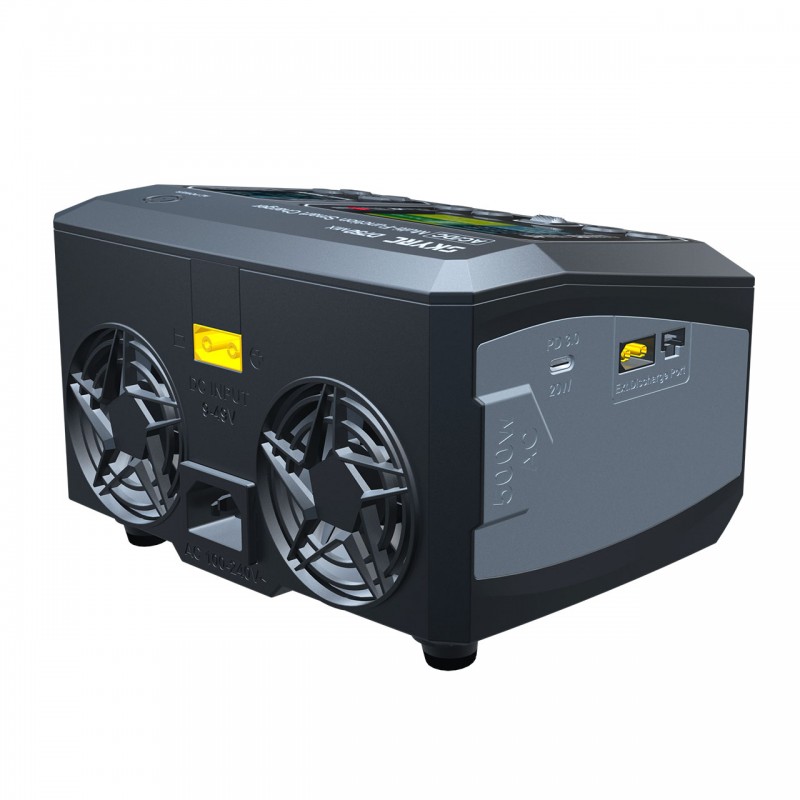

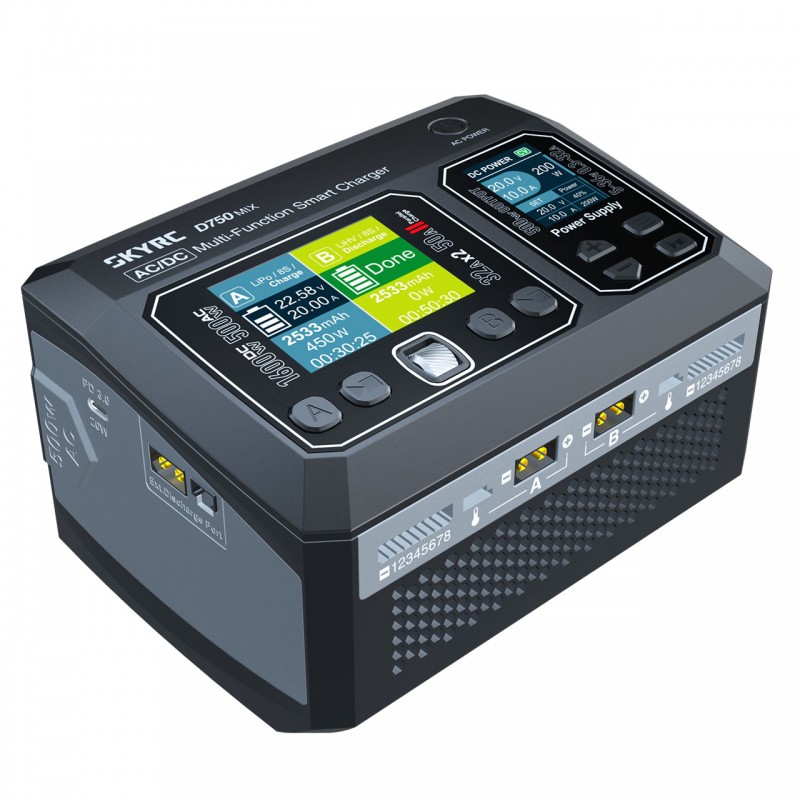

One Device. Two Applications. Maximum Power. The new SkyRC D750 MIX is far more than just a high-performance charger – it’s the perfect all-in-one solution for demanding professionals.

With dual AC/DC input and output, two independent displays, and numerous innovative features, the D750 MIX is ideal even for the most challenging applications. Efficiency, versatility, and performance at the highest level – all in one device.

Features:

• Up to 1600W DC / 500W AC output power
• Supports LiPo, LiFe, Li-ion, Pb, NiMH, and NiCd
• 8S capable!
• Up to 32A per port!
• PD 3.0 @ 20W
• Various safety mechanisms

Specifications:

Input Voltage:
- DC - 9–49V
- AC - 100–240V (50/60Hz)

Charging Power:
AC Input - Single Channel: 500W; Multi-channels: 500W total (A+B+DC Power+Type-C)
DC Input - Single Channel: 1100W; Multi-channels: 1600W total (A+B+DC Power+Type-C)

Charge & Discharge Data:
Charge Current - LiPo/LiFe/Li-ion/LiHV (2–8S): 0.1A – 32.0A; LiPo/LiFe/Li-ion/LiHV (1S) / NiMH/NiCd: 0.1A – 10.0A
Pb - 0.1 – 15.0A
Parallel - LiPo/LiFe/Li-ion/LiHV (2–8S): 33.0A – 50.0A
Discharge Current - LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A – 4.0A
External Discharge Current - LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.5A – 40A
Balancer Current - LiPo/LiFe/Li-ion/LiHV: Max. 1.9A
DC Power Supply - Output Voltage: 5V–36V; Output Current: 0.3A–32A
Output Power - AC: 500W, DC: 1100W

Battery Types:
LiPo/LiFe/Li-ion/LiHV: 1–8S
NiMH/NiCd: 1–20S
Pb: 3S / 6S / 12S

Weight:     1626g

Dimensions:     180 × 136 × 112mm
