Product Description

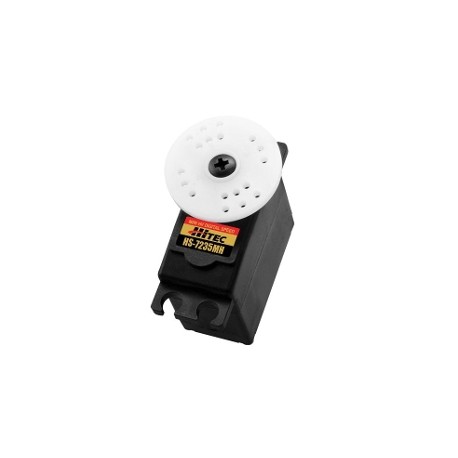

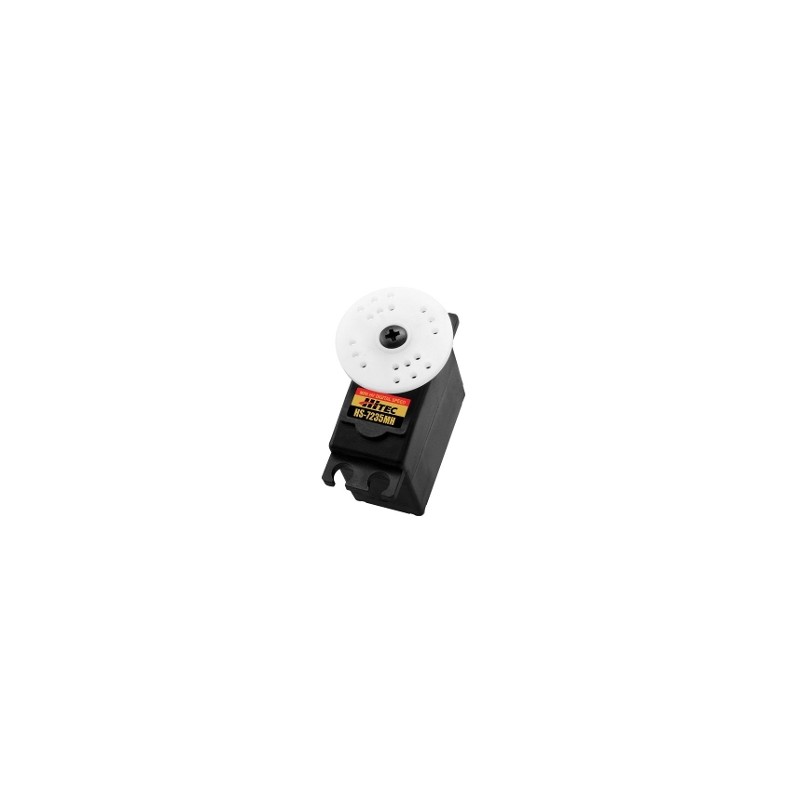

Watch out, here it comes! Our new high voltage, coreless HS-7235MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance, as does its brother, the HS-7245MH.

Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the lightning speed of this servo will make you the master of your RC domain.

Exceeding Your Expectations Is What We Do!

Features

• Our Best High Speed Mini Servo
• Efficient Coreless Motor
• Heavy Duty Metal Gear Train
• Dual Ball Bearing
• 7.4v 2-Cell LiPo Capability
• G2.5 Fully Programmable Digital Circuitry

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Overload Protection
• Resolution
• Data Save / Load
• Program Reset

Accessories

• Metal Gear Set
• Metal / Plastic 1st Gear Set
• Plastic Case Set
• Applicable Horns

HS-7235MH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) - 6.0V ~ 7.4V
Speed (Second @ 60°) - 0.09 ~ 0.08
Maximum Torque Range oz. / in. - 50 ~ 61
Maximum Torque Range kg. / cm. - 3.6 ~ 4.4
Current Draw at Idle - 12 mA
No Load Operating Current Draw - 190 mA
Stall Current Draw - 1,600 mA
Dead Band Width - 2 µs

Physical Specifications

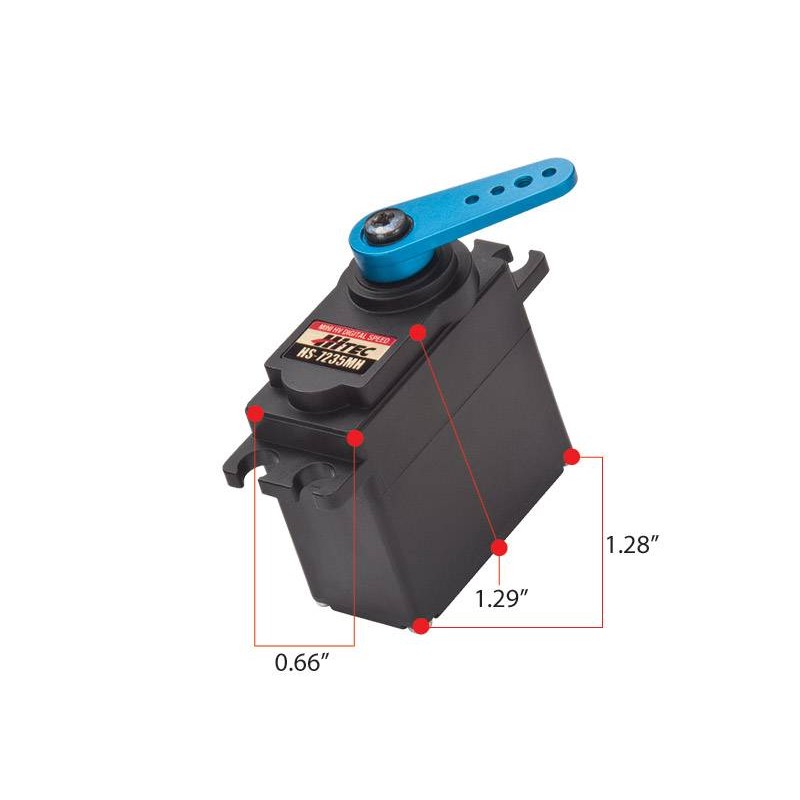

Dimensions (Inches) - 1.28 x 0.66 x 1.29
Dimensions (Metric) - 32.4 x 16.8 x 32.8
Weight (Ounces) - 1.20
Weight (Gram) - 34.0
Circuit Type - G2.5 Programable Digital
Motor Type - Coreless Metal Brush
Gear Material - Metal
Bearing Type - Dual Ball Bearing
Output Shaft (type / Ømm) - Standard 24
Case Material - Plastic
Dust / Water Resistance - N / A
Connector Gauge (AWG) / Strand Count - 22 / 60
