Product Description

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for  7.4 volt, 2S LiPo operation.  The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.

Features

• Our Most Economically Priced High Torque Digital Coreless Servo
• Quick and Precise Coreless Motor
• Heavy Duty Metal Gears
• 7.4v 2-Cell LiPo Capability
• Standard Programmable Digital Circuit

Specifications

Motor Type: Coreless Metal Brush
Bearing Type: Dual Ball Bearings
Speed (6.0V/7.4V): 0.17 / 0.14
Torque oz./in. (6.0V/7.4V): 194 / 236
Torque kg./cm. (6.0V/7.4V): 14 / 17

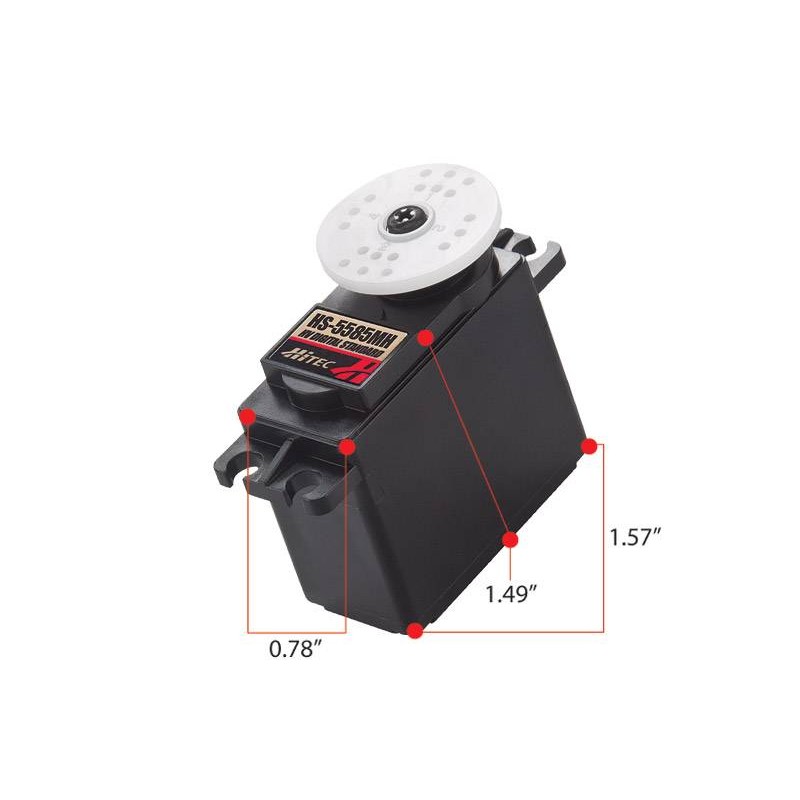

Size in Inches: 1.57 x 0.78 x 1.49
Size in Millimeters: 39.8 x 19.8 x 37.8
Weight oz.: 2.10
Weight g.: 60

Advanced Servo Specifications

Control System: Standrad HV Digital
Operating Voltage Range: 6.0 - 7.4 Volts DC
Operating Temperature Range: -4° - 140° Fahrenheit
Idle Current: 4 mA
No Load Running Current (6.0V/7.4V):
Stall Current (6.0V/7.4V): 2100 / 2700 mA
Dead Band Width: 2 µs
Potentiometer Type: 4 Slider 1M Cycle
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG
